LE CW E2B-MYNZ-SRTU
| Manufacturer | |
| Description | High Power LEDs - White Warm White, 3000K 100cd, 700mA LED OSTAR 4CHIP W/LENS WHT 3000K |
| Category |
Business
| Part # Aliases | Q65110A7853 | Product Category | High Power LEDs - White |
| Standard Package | 60 | Factory Pack Quantity | 60 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage | 14V | Wavelength | 3000K |
| Luminous Flux | 330 lm | Viewing Angle | 130 deg |
| Current - Output | 700mA | Driver Circuitry | No |
| LED Forward Current | 700 mA | LED Forward Voltage | 14 V |
| Current Rating (Max) | 1A | ||
Mechanical
| Color | White, Warm | Width | 20.2 mm |
| Height | 5.7 mm | Length | 22.9 mm |
| Lamp Color | 3000 K | Mounting Style | Screw |
| Connector Usage | No | Illumination Color | Warm White |
| CRI (Color Rendering Index) | 80 | ||
Product Info
| Configuration | Star | ||
Environmental
| Mechanical Life | Obsolete | Operating Temperature | + 100 C |
| Luminous Flux @ Current/Temperature | 660 lm | ||
Documents & Media
Similar Parts
C10265_LEDILSTAR-L-S
ledil
Ledilstar-L For Lighting Ostar LE W EXX LENS FOR OSRAM OSTAR LIGHTING LENS LEDILSTAR OSTAR LIGHT 12DEG LED Lighting Lenses OSRAM OSTAR SNGL LENS LENS, ROUND, PMMA, OSRAM OSTAR LIGHTING LED

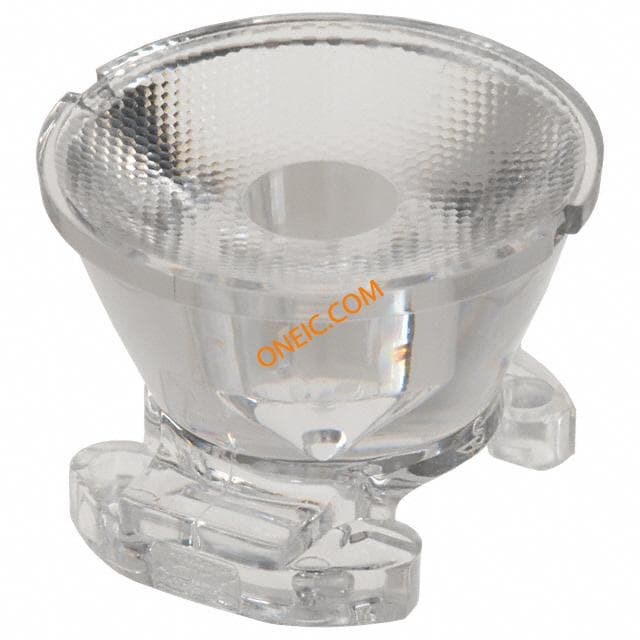

C10271_LEDILSTAR-P-S
ledil
Ledilstar-P For Projection Ostar LENS LEDILSTAR OSTAR PROJ 12DEG LED Lighting Lenses OSRAM OSTAR SNGL LENS LENS, ROUND, PMMA, OSRAM OSTAR PROJECTION LED

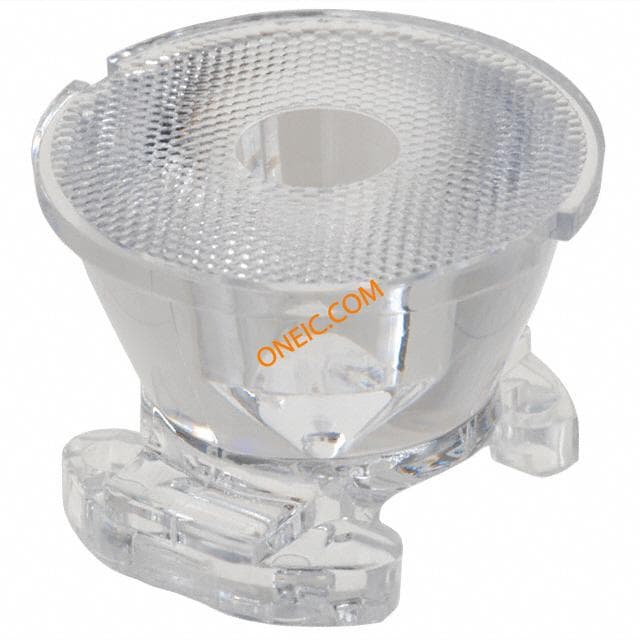

C10270_LEDILSTAR-P-W
ledil
Ledilstar-P For Projection Ostar LENS LEDILSTAR OSTAR PROJ 32DEG LED Lighting Lenses OSRAM OSTAR SNGL LENS

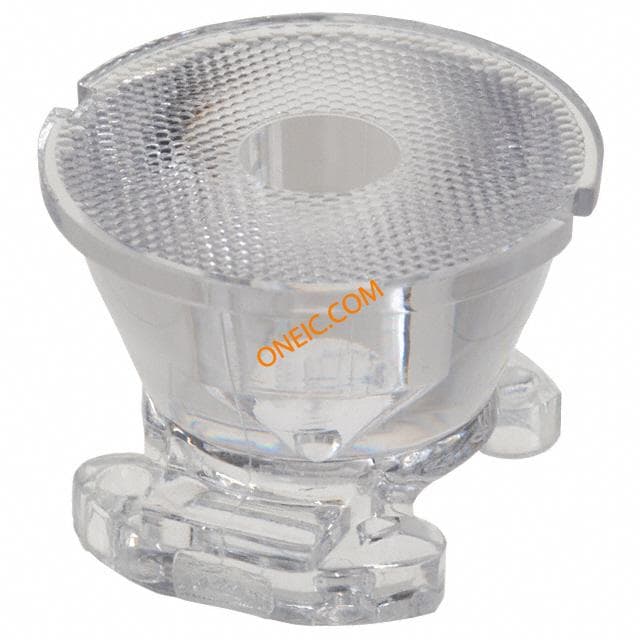

C10266_LEDILSTAR-L-W
ledil
Ledilstar-L For Lighting Ostar LE W EXX LENS LEDILSTAR OSTAR LIGHT 32DEG LED Lighting Lenses OSRAM OSTAR SNGL LENS LENS, ROUND, PMMA, OSRAM OSTAR LIGHTING LED

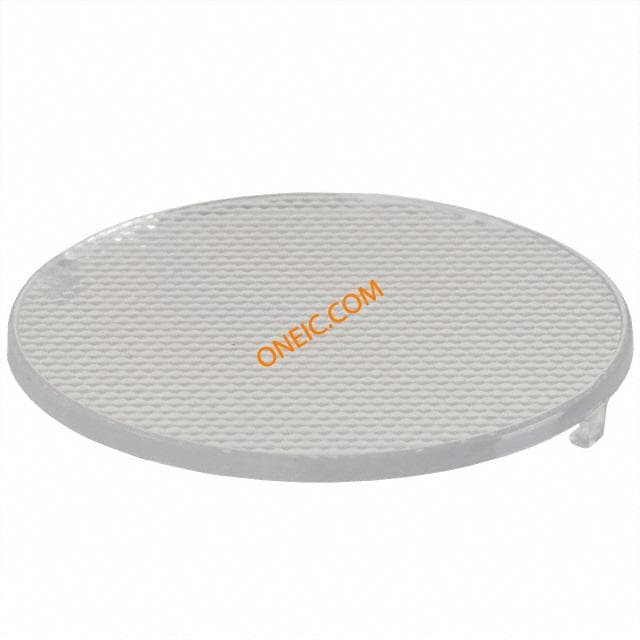

CP10317_LEDILSTAR-P-SUB
