LCW W5AM-JXKX-4O9Q-Z
| Manufacturer | |
| Description | High Power LEDs - White Warm White, 3500K 170 Degrees, 350mA LED DRAGON PLUS WARM WHITE |
| Category |
Business
| Tradename | Golden Dragon Plus | Other Names | 475-2591-6 |
| Part # Aliases | Q65110A7608 | Product Category | High Power LEDs - White |
| Standard Package | 200 | Factory Pack Quantity | 200 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Luminous Flux | 45000 mlm to 82000 mlm | Viewing Angle | 170 deg |
| Current - Output | 350mA | Voltage - Supply | 3.2V |
| LED Forward Current | 350 mA | LED Forward Voltage | 3.2 V |
| Current Rating (Max) | 1A | Lumens/Watt @ Current - Test | 57 lm/W |
| Flux @ 25degC, Current - Test | 64 lm (45 lm ~ 82 lm) | Flux @ 85degC, Current - Test | 58 lm |
Mechanical
| Width | 6.2 mm | Height | 3.1 mm |
| Length | 7.2 mm | Packaging | Reel |
| Lamp Color | 3500 K | Lens Color | Water Clear |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 2-SMD, Gull Wing | Illumination Color | Neutral White |
| CRI (Color Rendering Index) | 80 | ||
Product Info
| CCT (K) | 3500K | ||
Environmental
| Mechanical Life | Obsolete | Operating Temperature | + 110 C |
| Luminous Flux @ Current/Temperature | 131 lm | ||
Documents & Media
Similar Parts

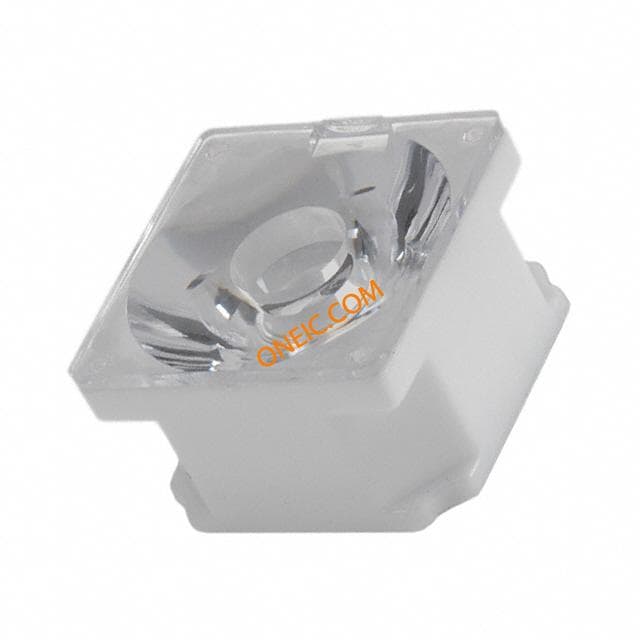

CA10561_OSS-2-RS
ledil
ASSEMBLY SQUARE 1 POS 21.6 + 21.6MM OD 13.9MM (H) LENS SQUARE 1 POS 21.6 + 21.6M LENS OSS REAL DRAGON SQ 6DEG LED Lighting Lenses with Holder OSRAM DRAGON SNGL LENS HLDR & TAPE LENS WITH HOLDER, SQUARE, PMMA, GOLDEN DRAGON LED

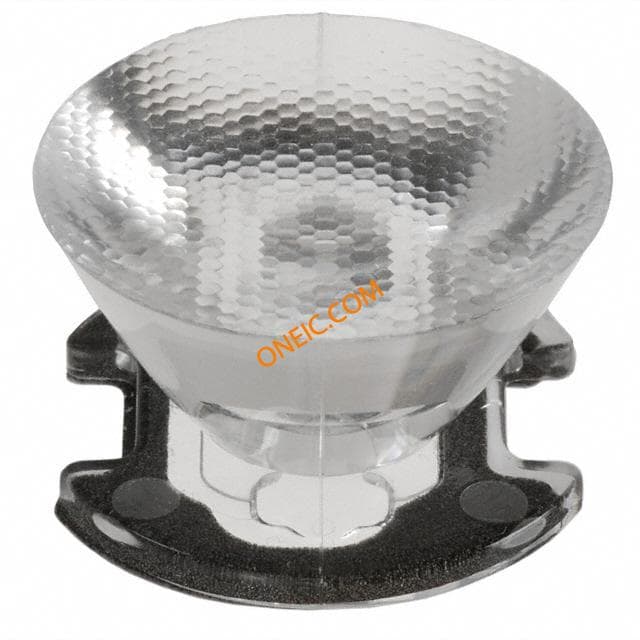

CA10318_TITANUM-O-SS
ledil
Fully Sealable Titanum Lenses For Dragon LENS TITANUM SMOOTH DRAGON 14DEG 26mm LED Optic, Taped Base, Spot Beam LED Lighting Lenses OSRAM DRAGON SNGL LENS & TAPE LENS, SMOOTH SPOT, OSRAM DRAGON LEDiL Titanum-(sputnik) 系列 9 ° 光点 LED 透镜 , 26mm直径
FA10750_LO2-M
ledil
LO2 Lenses For OSRAM-OS Dragon/Dragon, LEDs LENS LO2 MEDIUM DRAGON Osram Dragon Optic,Tape Base,Medium LED Lighting Lenses with Holder OSRAM DRAGON SNGL LENS HLDR & TAPE LED Accessories LENS, MEDIUM, OSRAM DRAGON/DRAGON+ LEDiL Leila 系列 26 ° 中角度 LED 透镜 , 21.6mm直径, 使用于OSRAM Golden DRAGON Plus

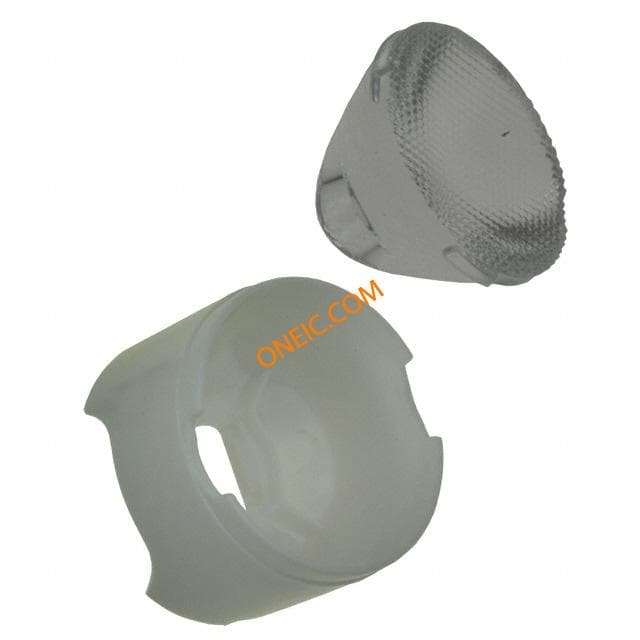

FA10752_LO2-REC
ledil
LO2 Lenses For OSRAM-OS Dragon/Dragon, LEDs LENS LO2 REXTANGLE DRAGON Osram Dragon Optic,Tape Base,Rectangle LED Lighting Lenses with Holder OSRAM DRAGON SNGL LENS HLDR & TAPE LENS, RECTANGULAR, OSRAM DRAGON/DRAGON+ LEDLENS,FA10752 LEDiL Leila 系列 38 + 24 ° 矩形 LED 透镜 , 21.6mm直径, 使用于OSRAM Golden DRAGON Plus

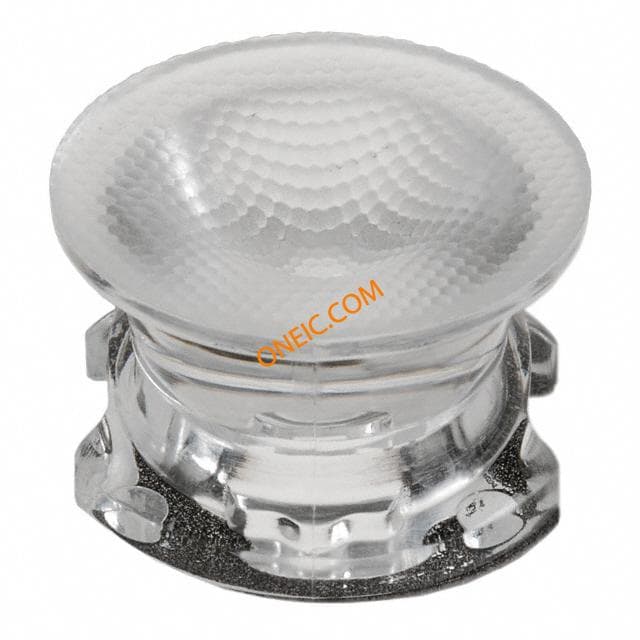

CA10244_TITANUM-O-W
ledil
Fully Sealable Titanum Lenses For Dragon LENS TITANUM WIDE DRAGON 70DEG Osram Dragon Optic,Tape Base,Wide LED Lighting Lenses OSRAM DRAGON SNGL LENS & TAPE OSRAM DRAGON OPTIC, TAPE BASE, WIDE LEDLENS,CA10244

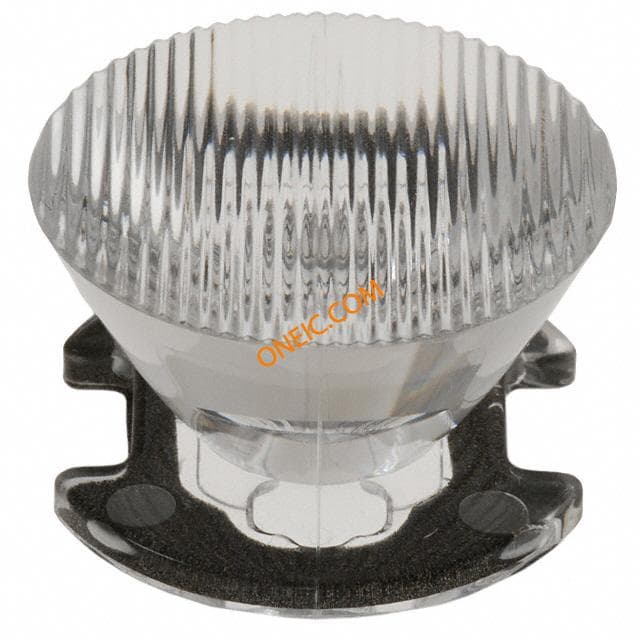

CA10319_TITANUM-O-O
ledil
Fully Sealable Titanum Lenses For Dragon LENS TITANUM OVAL DRAGN RND 6X36 26mm LED Optic, Taped Base, Oval Beam LED Lighting Lenses OSRAM DRAGON SNGL LENS & TAPE

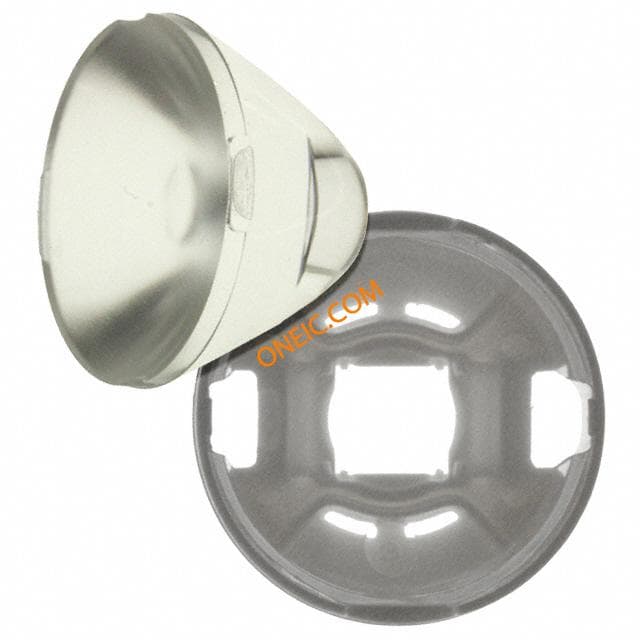

FA10753_LO2-D
ledil
LO2 Lenses For OSRAM-OS Dragon/Dragon, LEDs LENS LO2 DIFFUSED DRAGON Osram Dragon Optic,Tape Base,Diffused LED Lighting Lenses with Holder OSRAM DRAGON SNGL LENS HLDR & TAPE LED Accessories LENS, DIFFUSER, DRAGON/DRAGON+ LEDiL Leila 系列 11 ° 光点 LED 透镜 , 21.6mm直径, 使用于OSRAM Golden DRAGON Plus
FA10300_OSS-D
ledil
Oss Square Lenses For Osram Dragon LEDs LENS OSS DIFF DRAGON SQ 12DEG Osram Dragon Optic,Tape Base,Diffused LED Lighting Lenses with Holder OSRAM DRAGON SNGL LENS HLDR & TAPE LENS, DIFFUSER, OSRAM DRAGON LEDLENS,FA10300 LEDiL Rose 系列 11 ° 光点 LED 透镜 , 使用于OSRAM Golden DRAGON Plus
FA10327_OSS-SS
ledil
Oss Square Lenses For Osram Dragon LEDs LENS OSS SMOOTH DRAGON SQ 14DEG 21.6mm LED Optic,Taped Base,Spot Beam LED Lighting Lenses with Holder OSRAM DRAGON SNGL LENS HLDR & TAPE LENS, SMOOTH SPOT, OSRAM DRAGON LEDLENS,FA10327 LEDiL Rose 系列 光点 3 → 18 ° 透镜组件, 包含：支架、透镜
C10268_TITANUM-3-S
ledil
Clear Lens Round Style LENS TITANUM-3 SPOT DRAGON 14DEG 50mm Triple LED Optic, Spot Beam LED Lighting Lenses OSRAM DRAGON 4-IN-1 LENS 4 UP LENS, SPOT, OSRAM DRAGON
FA10751_LO2-RS
ledil
LO2 Lenses For OSRAM-OS Dragon/Dragon, LEDs LENS LO2 REAL SPOT DRAGON Osram Dragon Optic,Tape Base,Spot LED Lighting Lenses with Holder OSRAM DRAGON SNGL LENS HLDR & TAPE LED Accessories LENS, REAL SPOT, OSRAM DRAGON/DRAGON+ LEDLENS,FA10751 LEDiL Leila 系列 7 ° 光点 LED 透镜 , 21.6mm直径, 使用于OSRAM Golden DRAGON Plus LENS FOR OSRAM GOLDEN DRAGON+

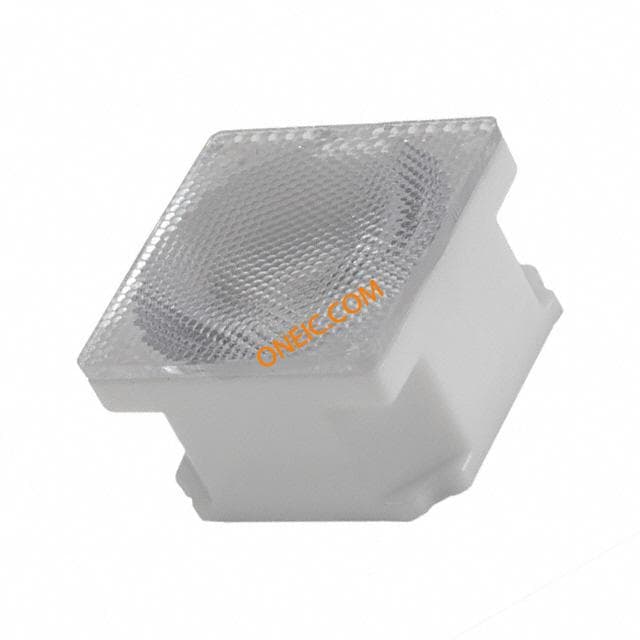

FA10301_OSS-M
ledil
Oss Square Lenses For Osram Dragon LEDs LENS OSS MED DRAGON SQ 12DEG Osram Dragon Optic,Tape Base,Medium LED Lighting Lenses with Holder OSRAM DRAGON SNGL LENS HLDR & TAPE LENS, MEDIUM, OSRAM DRAGON LEDiL Rose 系列 30° 方形 LED 透镜 , 使用于OSRAM Golden DRAGON Plus
FA10342_OSS-W
ledil
Oss Square Lenses For Osram Dragon LEDs LENS OSS WIDE DRAGON SQ 60DEG Osram Dragon Optic,Tape Base,Wide LED Lighting Lenses with Holder OSRAM DRAGON SNGL LENS HLDR & TAPE LENS, WIDE, OSRAM DRAGON OSRAM DRAGON OPTIC, TAPE BASE, WIDE

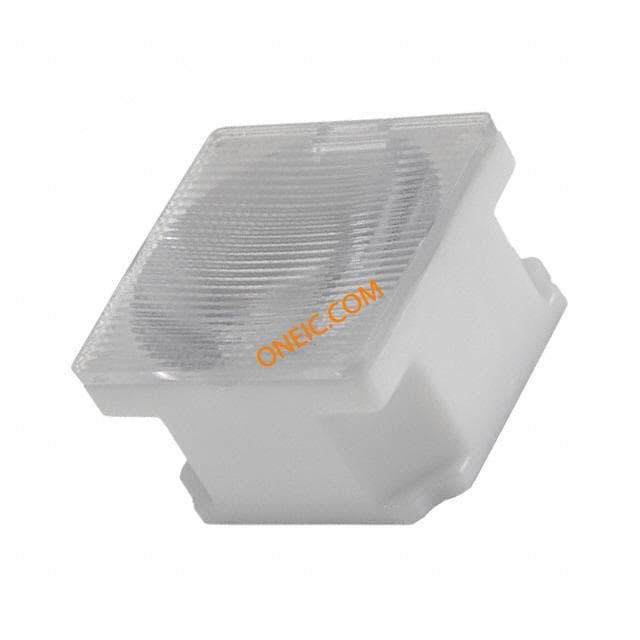

FA10302_OSS-O
ledil
Oss Square Lenses For Osram Dragon LEDs LENS OSS OVAL DRAGN SQ 12X48 DEG Osram Dragon Optic,Tape Base,Oval LED Lighting Lenses with Holder OSRAM DRAGON SNGL LENS HLDR & TAPE LENS, OVAL, OSRAM DRAGON LEDiL Rose 系列 42 + 11 ° 椭圆形 LED 透镜 , 使用于OSRAM Golden DRAGON Plus LENS FOR OSRAM GOLDEN DRAGON+

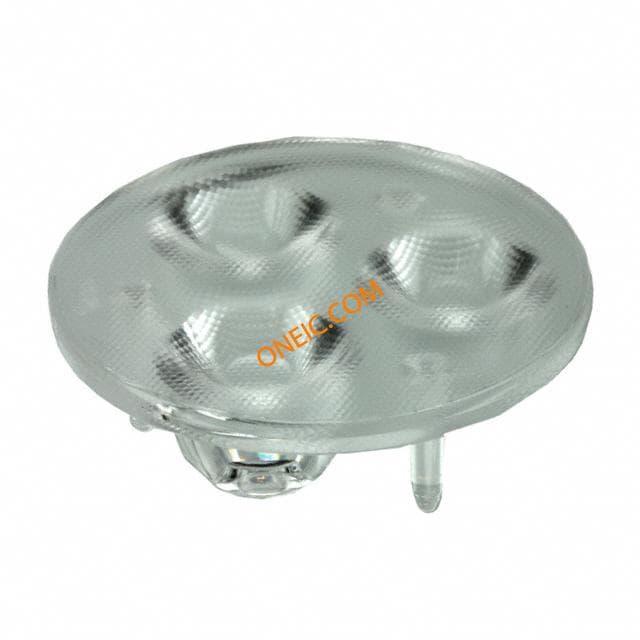

TITANUM-3-W
Ledil
LENS TITANUM-3 WIDE DRAGON 60DEG
DKSB1003A
Digi-Key Evaluation Boards
LM3406 LED DRIVER EVAL BOARD

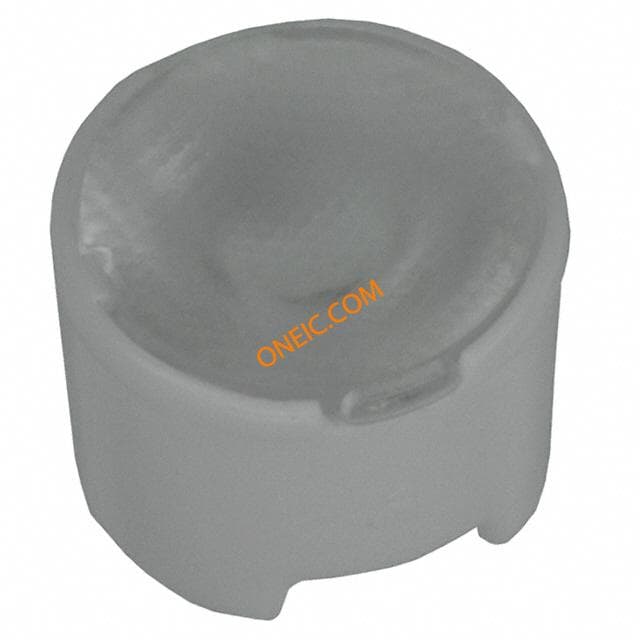

CA10444_LISA-SS
