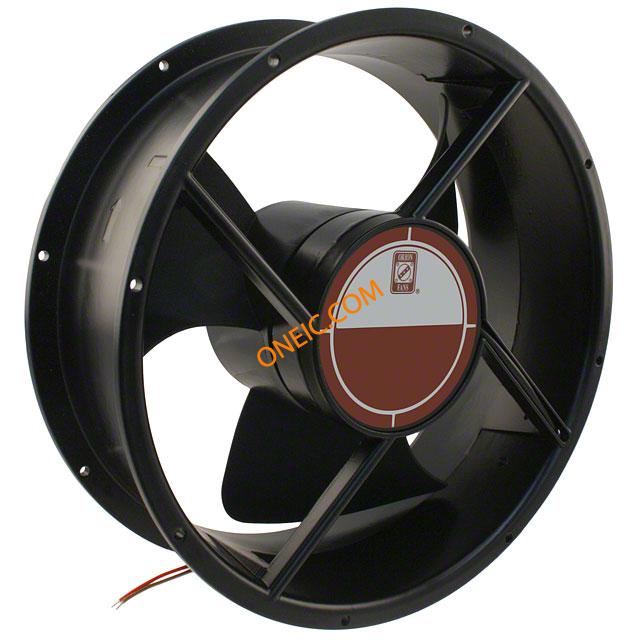

OD254AP-48MB
| Manufacturer | |
| Description | FAN DC 254X89 48V 690CFM Fans Fan 254x89 48VDC Ball LW 580cfm 43dB Fan;DC;48V;0.48A;254x89mm;Round;690CFM;24W;47dBA;2000RPM;Leadwires |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Fans | Product Category | Fans |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Noise | 47 dB | Speed | 2000RPM |
| Power (Watts) | 24.0W | Power - Rated | 24W |
| Voltage Range | 24 ~ 53VDC | Voltage Rating | 48VDC |
| Current Rating (Max) | 0.480A | ||
Mechanical
| RPM | 2000 RPM | Size | 10x3.5(254x89)In.(mm) |
| Air Flow | 690.0 CFM (19.54m³/min) | Fan Type | Tubeaxial |
| Material | DiecastAluminum | Termination | 2 Wire Leads |
| Bearing Type | Ball | Static Pressure | 0.580 in H2O (144.5 Pa) |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Material - Frame | Aluminum |
| Primary Material | Fans | Size / Dimension | Round - 254mm Dia x 89mm W |
| Fan Accessory Type | 10x3.5(254x89)In.(mm) | Dimensions - Overall | 10x3.5In. |
Product Info
| Type | Round | Function | DC |
| Switch Type | DC | Manufacturer | OD254Series |
| Configuration | Round | ||
Environmental
| Rated Life | 40000 hrs @ 60°C | Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
| Thermal Resistance @ Natural | 690CFM | Operating Temperature - Junction | 75°C |
