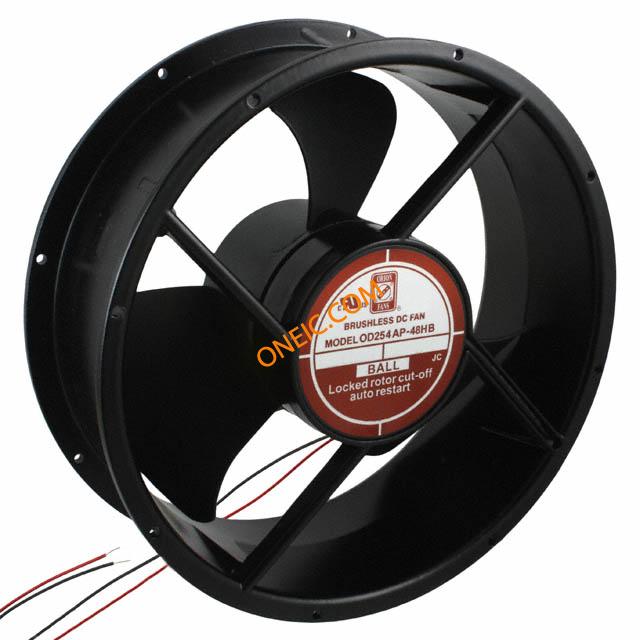

OD254AP-48HB
| Manufacturer | |
| Description | FAN DC 254X89 48V 850CFM Fans Fan 254x89 48VDC Ball LW 480cfm 39dB Fan;DC;48V;254x89mm;Round;850CFM;64dBA;2500RPM;Ball;Leadwires |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Fans | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Noise | 64 dB | Speed | 2500RPM |
| Power (Watts) | 62W | Voltage Range | 24 ~ 53VDC |
| Voltage Rating | 48VDC | Current Rating (Max) | 1.3A |
Mechanical
| RPM | 2500 RPM | Size | 10x3.5(254x89)In.(mm) |
| Air Flow | 850.0 CFM (24.07m³/min) | Fan Type | Tubeaxial |
| Material | Plastic | Termination | 2 Wire Leads |
| Bearing Type | Ball | Static Pressure | 0.830 in H2O (206.7 Pa) |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Material - Frame | Aluminum |
| Primary Material | Fans | Size / Dimension | Round - 254mm Dia x 89mm W |
| Fan Accessory Type | 10x3.5(254x89)In.(mm) | Dimensions - Overall | 10x3.5In. |
Product Info
| Type | Round | Function | DC |
| Switch Type | DC | Manufacturer | OD254APRigel |
| Configuration | Round | ||
Environmental
| Rated Life | 40000 hrs @ 60°C | Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
| Thermal Resistance @ Natural | 850CFM | Operating Temperature - Junction | 75°C |
