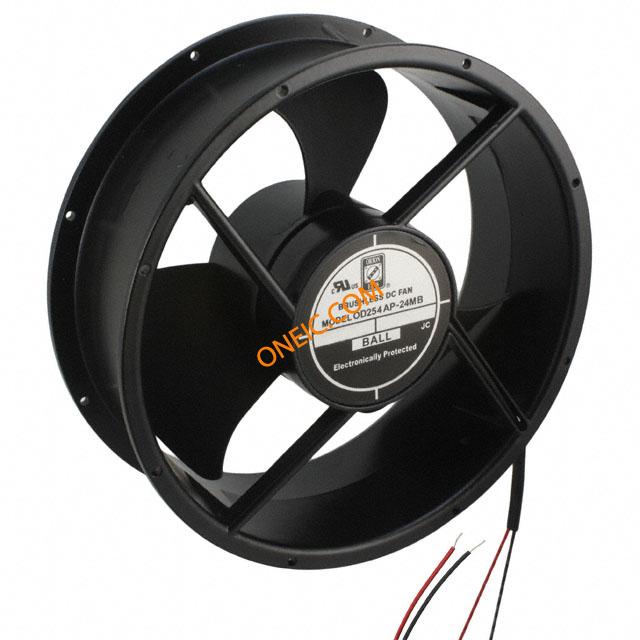

OD254AP-24MB
| Manufacturer | |
| Description | Fans Fan 254x89 24VDC Ball Wire 580cfm FAN DC 254X89 24V 690CFM |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Fans | Product Category | Fans |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Noise | 47 dB | Speed | 2000 RPM |
| Power (Watts) | 24.0W | Power - Rated | 24 W |
| Voltage Range | 16 ~ 27VDC | Voltage Rating | 24VDC |
| Voltage - Supply | 24 V | Current Rating (Max) | 0.970A |
Mechanical
| RPM | 2000 RPM | Air Flow | 690.0 CFM (19.54m³/min) |
| Fan Type | Tubeaxial | Termination | 2 Wire Leads |
| Bearing Type | Ball | Static Pressure | 0.580 in H2O (144.5 Pa) |
| Housing Material | Aluminum | Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Frame | Aluminum | Size / Dimension | Round - 254mm Dia x 89mm W |
| Termination Style | Wire Leads | ||
Product Info
| Series | OD254 | Function | DC |
Environmental
| Rated Life | 40000 hrs @ 60°C | Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
Documents & Media
PDF Document
