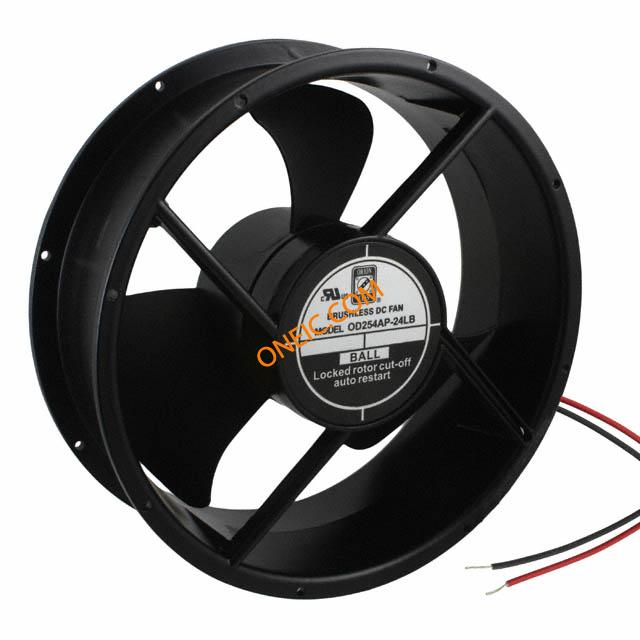

OD254AP-24LB
| Manufacturer | |
| Description | Fans Fan 254x89 24VDC Ball Wire 480cfm FAN DC 254X89 24V 550CFM |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Fans | Product Category | Fans |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Noise | 39 dB | Speed | 1500 RPM |
| Power (Watts) | 13.0W | Power - Rated | 13 W |
| Voltage Range | 16 ~ 27VDC | Voltage Rating | 24VDC |
| Voltage - Supply | 24 V | Current Rating (Max) | 0.520A |
Mechanical
| RPM | 1500 RPM | Air Flow | 550.0 CFM (15.58m³/min) |
| Fan Type | Tubeaxial | Termination | 2 Wire Leads |
| Bearing Type | Ball | Static Pressure | 0.370 in H2O (92.2 Pa) |
| Housing Material | Aluminum | Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Frame | Aluminum | Size / Dimension | Round - 254mm Dia x 89mm W |
| Termination Style | Wire Leads | ||
Product Info
| Series | OD254 | Function | DC |
Environmental
| Rated Life | 40000 hrs @ 60°C | Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
Documents & Media
PDF Document
Similar Parts
LFG254B
Orion Fans
Fan Cords & Accessories Plastic Louver Guard for Fan Size 254mm FAN GUARD LOUVERED 254MM BLACK Fan Accessories Louvered Fan Guard Kit for 254mm Fan Thrml Mgmt Access Fan Filter Kit 254mm Fan;Accessory;FilterKitfor254mmFan;Louvered;320x320mm;Black
$95.9480
Details
G254-10P
Orion Fans
Fan Cords & Accessories Wire FanGuard Chrome for Fan Size 254mm FAN GUARD METAL 254MM Fan Accessories Wire FanGuard Chrome for Fan Size 254mm Thrml Mgmt Access Finger Guard 254mm FanGuard;Steel(Wire);10in.(254mm);BrightNickelChrome;withCenterPlug
$16.7960
Details

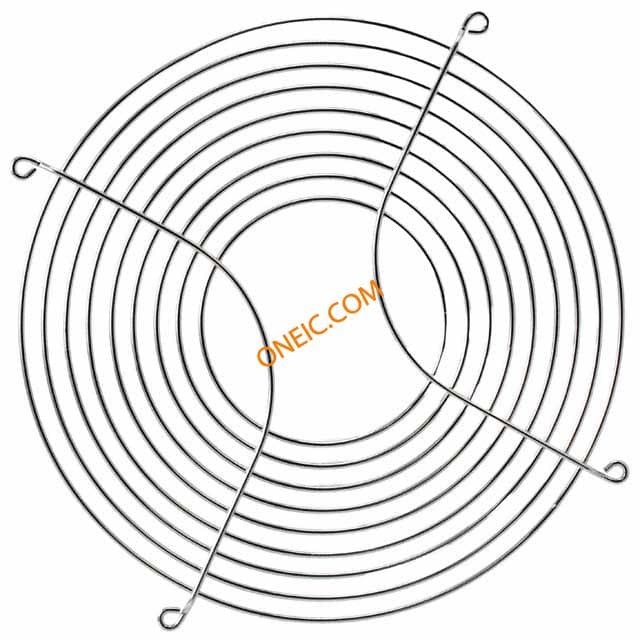

G254-10
