点击放大查看

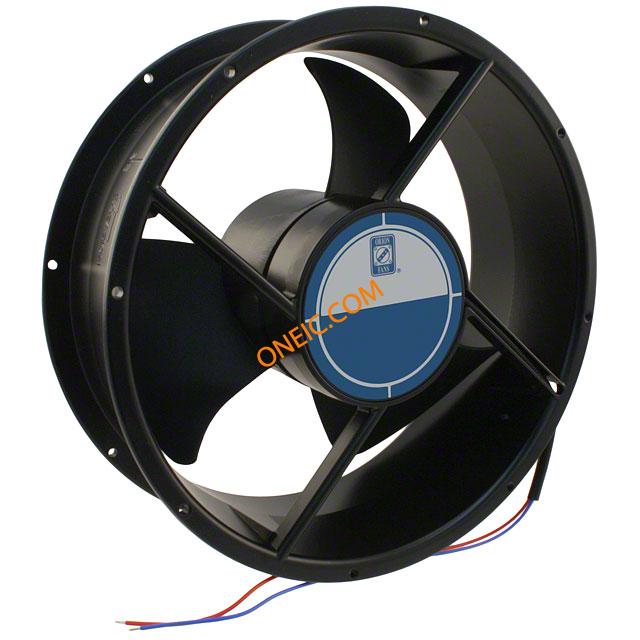

OD254AP-12MB
| Manufacturer | |
| Description | FAN DC 254X89 12V 690CFM Fans Fan 254x89 12VDC Ball LW 580cfm 43dB Fan;DC;12V;690CFM;2000RPM;46dB;1.1A;DiecastAlum;Leads;BallBearing;254x89mm |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Fans | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Noise | 47 dB | Power (Watts) | 23.0W |
| Power - Rated | 23W | Voltage Range | 9 ~ 13VDC |
| Voltage Rating | 12VDC | Current Rating (Max) | 1.9A |
Mechanical
| RPM | 2000 RPM | Air Flow | 690.0 CFM (19.54m³/min) |
| Fan Type | Tubeaxial | Termination | 2 Wire Leads |
| Bearing Type | Ball | Static Pressure | 0.580 in H2O (144.5 Pa) |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Material - Frame | Aluminum |
| Size / Dimension | Round - 254mm Dia x 89mm W | ||
Product Info
| Features | Tachometer | Function | DC |
| Direction | ExhaustoverStruts | Manufacturer | OD254Series |
| Configuration | Round | ||
Environmental
| Rated Life | 40000 hrs @ 60°C | Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
| Thermal Resistance @ Natural | 690CFM | ||
Documents & Media
PDF Document
