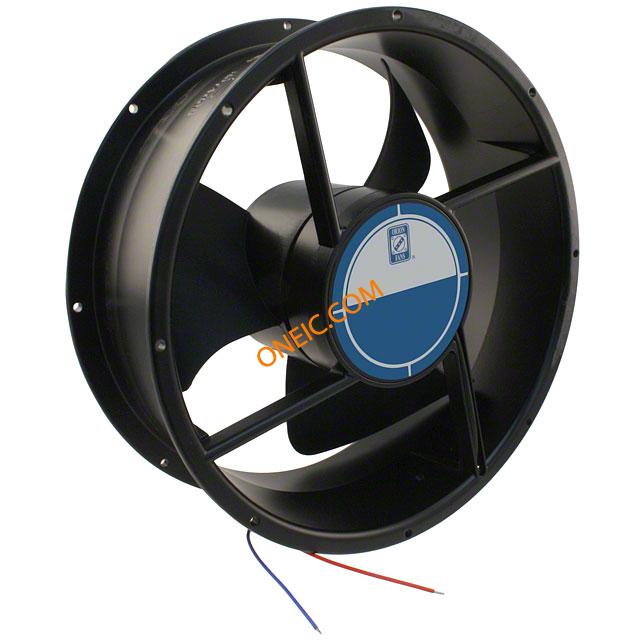

OD254AP-12HB
| Manufacturer | |
| Description | Fans Fan 254x89 12VDC Ball Wire 670cfm FAN DC 254X89 12V 830CFM Fan;DC;12V;1.9A;254x89mm;Round;830CFM;60dBA;2400RPM;Leadwires |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Fans | Product Category | Fans |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Noise | 60 dB | Speed | 2400 RPM |
| Power (Watts) | 65W | Power - Rated | 65 W |
| Voltage Range | 9 ~ 13VDC | Voltage Rating | 12VDC |
| Voltage - Supply | 12 V | Current Rating (Max) | 5.4A |
Mechanical
| RPM | 2400 RPM | Size | 10x3.5(254x89)In.(mm) |
| Air Flow | 830.0 CFM (23.50m³/min) | Fan Type | Tubeaxial |
| Material | Plastic | Termination | 2 Wire Leads |
| Bearing Type | Ball | Static Pressure | 0.780 in H2O (194.3 Pa) |
| Housing Material | Aluminum | Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Frame | Aluminum | Primary Material | Fans |
| Size / Dimension | Round - 254mm Dia x 89mm W | Termination Style | Wire Leads |
| Fan Accessory Type | 10x3.5(254x89)In.(mm) | Dimensions - Overall | 10x3.5In. |
Product Info
| Type | Round | Series | OD254 |
| Function | DC | Switch Type | DC |
| Manufacturer | OD254Series | Configuration | Round |
Environmental
| Rated Life | 40000 hrs @ 60°C | Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
| Thermal Resistance @ Natural | 830CFM | Operating Temperature - Junction | 75°C |
