OD127AP-12HTB
| Manufacturer | |
| Description | Fans 127mm 12VDC 135CFM FAN DC TERM 127X38.5MM 12V 127X127X38MM12VDCFAN140CFM |
| Category |
Business
| Product | Fans | Product Category | Fans |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Noise | 46 dB | Speed | 3000 RPM |
| Voltage Range | 9 ~ 13.8VDC | Voltage Rating | 12VDC |
| Voltage - Supply | 12 V | Current Rating (Max) | 0.880A |
Mechanical
| RPM | 3200 RPM | Air Flow | 140.0 CFM (3.96m³/min) |
| Fan Type | Tubeaxial | Termination | 2 Terminals |
| Bearing Type | Ball | Static Pressure | 0.410 in H2O (102.1 Pa) |
| Housing Material | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Frame | Aluminum | Size / Dimension | Square - 127mm L x 127mm H x 38.5mm W |
| Termination Style | Wire Leads | ||
Product Info
| Series | OD127AP | Features | Tachometer |
| Function | DC | Manufacturer | OD127APSeries |
| Configuration | Square | ||
Environmental
| Rated Life | 60000 hrs @ 45°C | Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
| Thermal Resistance @ Natural | 140CFM | ||
Documents & Media
Similar Parts
C45-24P
Orion Fans
Fan Cords & Accessories Fan Cord 45 Degree 24 NEMA 1-15 Plug FAN CORD 45DEG 24" W/AC PLUG Fan Cord; 24 in.; 45 deg; 1; AC Plug; NEMA; NEMA 1-15P AC Plug Fan Accessories Fan Cord 45 Degree 24 NEMA 1-15 Plug FanCord;24in.;45deg;1;ACPlug;NEMA;NEMA1-15PACPlug
C180-36
Orion Fans
Fan Cords & Accessories Fan Cord 180 Degree 36 Blunt Cut Term FAN CORD 180DEG 36" Cord; Fan; 36 in.; 180 deg; C180 Fan Accessories Fan Cord 180 Degree 36 Blunt Cut Term Cord,Fan;36in.;180deg;C180
C45-12
Orion Fans
Fan Cords & Accessories Fan Cord 45 Degree 12 Blunt Cut Term FAN CORD 45DEG 12" Cord; Fan; 12 in.; 45 deg; C45 Fan Accessories Fan Cord 45 Degree 12 Blunt Cut Term Cable Assembly Power Cord 0.304m 18AWG 2 POS Power F Cord,Fan;12in.;45deg;C45
C45-24
Orion Fans
Fan Cords & Accessories Fan Cord 45 Degree 24 Blunt Cut Term FAN CORD 45DEG 24" Cord; 24 in.; 45 deg; 2; C90; UL Listed; CSA Certified; Blunt Cut Fan Accessories Fan Cord 45 Degree 24 Blunt Cut Term Cable Assembly Power Cord 0.609m 2 POS Power F Cord;24in.;45deg;2;C90;ULListed,CSACertified;BluntCut
C45-144P
Orion Fans
Fan Cords & Accessories 45 DEG 144INCH FAN CORD 45DEG 144" W/AC PLUG Fan Accessories 45 DEG 144INCH
C45-6DC
Orion Fans
Fan Cords & Accessories Fan Cord 45 Degree 24 6 Head Cut Term FAN CORD 45DEG 6POS 24" Cord; Fan; 24 in.; 45 deg; C45 Fan Accessories Fan Cord 45 Degree 24 6 Head Cut Term Cord,Fan;24in.;45deg;C45
C45-3DC
Orion Fans
Fan Cords & Accessories Fan Cord 45 Degree 24 3 Head Cut Term FAN CORD 45DEG 3POS 24" Cord; 24 in.; 45 deg; 2; C45; UL Listed; CSA Certified; Blunt Cut Fan Accessories Fan Cord 45 Degree 24 3 Head Cut Term Cord;24in.;45deg;2;C45;ULListed,CSACertified;BluntCut
C90-144P
Orion Fans
Fan Cords & Accessories 144 90DEG FAN CORD 90DEG 144" W/AC PLUG Cord; Fan; 144 in.; 90 deg; Straight Fan Accessories 144 90DEG Cord,Fan;144in.;90deg;Straight
C180-24
Orion Fans
Fan Cords & Accessories Fan Cord 180 Degree 24 Blunt Cut Term FAN CORD 180DEG 24" Cord; Fan; 24 in.; 180 deg; C180 Fan Accessories Fan Cord 180 Degree 24 Blunt Cut Term Cord,Fan;24in.;180deg;C180
C45-4DC-72P
Orion Fans
Fan Cords & Accessories Fan Cord 45deg. 4pos 72 NEMA 1-15 Plug FAN CORD 45DEG 4POS 72" AC PLUG Fan Cord; 72 in.; 45 deg; 4; AC Plug; NEMA; NEMA 1-15P AC Plug Fan Accessories Fan Cord 45deg. 4pos 72 NEMA 1-15 Plug FanCord;72in.;45deg;4;ACPlug;NEMA;NEMA1-15PACPlug
C45-36
Orion Fans
Fan Cords & Accessories Fan Cord 45 Degree 36 Blunt Cut Term FAN CORD 45DEG 36" Cord; Fan; 36 in.; 45 deg; C45 Fan Accessories Fan Cord 45 Degree 36 Blunt Cut Term Cable Assembly Power Cord 0.914m 18AWG 2 POS Power F Cord,Fan;36in.;45deg;C45
C45-72P
Orion Fans
Fan Cords & Accessories Fan Cord 45 Degree 72 NEMA 1-15 Plug FAN CORD 45DEG 72" W/AC PLUG Cord; Fan; 72 in.; 45 deg; Straight Fan Accessories Fan Cord 45 Degree 72 NEMA 1-15 Plug Cord,Fan;72in.;45deg;Straight
C90-12
Orion Fans
Fan Cords & Accessories Fan Cord 90 Degree 12 Blunt Cut Term FAN CORD 90DEG 12" Cord; Fan; 12 in.; 90 deg; C90 Fan Accessories Fan Cord 90 Degree 12 Blunt Cut Term Cord,Fan;12in.;90deg;C90
C180T-72
Orion Fans
Fan Cords & Accessories T Plug 72 inch FAN CORD T TYPE 72" Cord; 72 in.; 90 deg; 2; C45; UL Listed; CSA Certified; Blunt Cut Fan Accessories T Plug 72 inch Cord;72in.;90deg;2;C45;ULListed,CSACertified;BluntCut
C90-48
Orion Fans
Fan Cords & Accessories Fan Cord 90 Degree 48 Blunt Cut Term FAN CORD 90DEG 48" Cord; Fan; 48 in.; 90 deg; C90 Fan Accessories Fan Cord 90 Degree 48 Blunt Cut Term Cord,Fan;48in.;90deg;C90
C45-3DC-72P
Orion Fans
Fan Cords & Accessories Fan Cord 45deg. 3pos 72 NEMA 1-15 Plug FAN CORD 45DEG 3POS 72" AC PLUG Fan Accessories Fan Cord 45deg. 3pos 72 NEMA 1-15 Plug Fan;Cord;PigtailCord;72inLeadLength;3Plugs;12inBetweenPlugs;18AWG;Plug
C90-36
Orion Fans
Fan Cords & Accessories Fan Cord 90 Degree 36 Blunt Cut Term FAN CORD 90DEG 36" Cord; Fan; 36 in.; 90 deg; C90 Fan Accessories Fan Cord 90 Degree 36 Blunt Cut Term Cord,Fan;36in.;90deg;C90

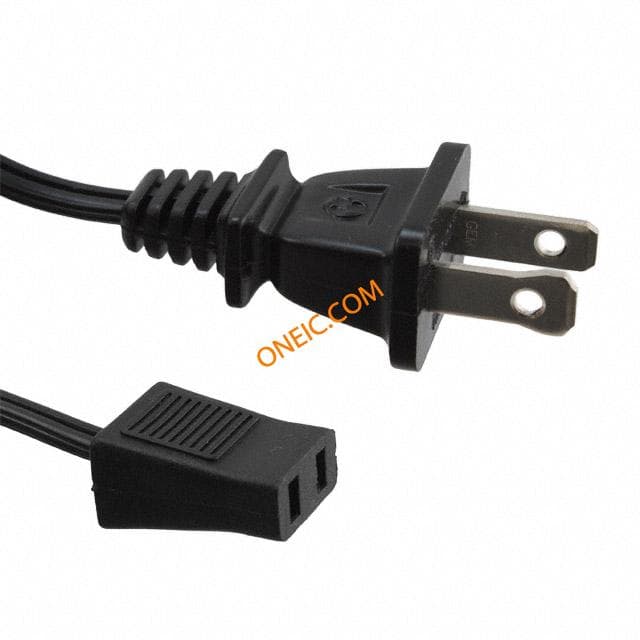

C180-48P
