OD1225-12HB02A
| Manufacturer | |
| Description | FAN DC 120X25 12V W/ O/C ALARM Fans Fan DC 120x25 12V Ball O/C Alarm Fan;DC;12V;120x120x25mm;Sq;89CFM;5W;39dBA;2200RPM;Leadwires |
| Category |
Business
| Product | Fans | Product Category | Fans |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Noise | 39 dB | Speed | 2200 RPM |
| Power (Watts) | 5.00W | Power - Rated | 5 W |
| Voltage Rating | 12VDC | Voltage - Supply | 12 V |
| Current Rating (Max) | 0.370A | ||
Mechanical
| RPM | 2200 RPM | Size | 4.7x1(120x25)In.(mm) |
| Air Flow | 89.0 CFM (2.52m³/min) | Fan Type | Tubeaxial |
| Material | Plastic | Rotation | CW |
| Termination | 3 Wire Leads | Bearing Type | Ball |
| Static Pressure | 0.140 in H2O (34.9 Pa) | Housing Material | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Primary Material | Fans | Size / Dimension | Square - 120mm L x 120mm H x 25mm W |
| Termination Style | Wire Leads | Fan Accessory Type | 4.7x1(120x25)In.(mm) |
| Dimensions - Overall | 4.7x4.7x1In. | ||
Product Info
| Type | Axial Fans | Features | Locked Rotor Sensor |
| Function | DC | Direction | ExhaustoverStruts |
| Switch Type | DC | Manufacturer | OD1225Series |
| Configuration | Square | ||
Environmental
| Rated Life | 65000 hrs @ 45°C | Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Thermal Resistance @ Natural | 89CFM | Operating Temperature - Junction | 70°C |
Documents & Media
Similar Parts
LFG120B
Orion Fans
Fan Cords & Accessories Plastic Louver Guard for Fan Size 120mm FAN GUARD LOUVERED 120MM BLACK Fan Accessories Louvered Fan Guard Kit for 120mm Fan Fan;Accessory;FilterKitfor120mmFan;Louvered;148.5x148.5mm;Black
GRM120-30
Orion Fans
Fan Cords & Accessories Fan Filter 120mm 30 Pores Media Black FAN FILTER 120MM 30PPI Fan;Filter Kit;Retainer and Guard UL94V-0;Media PU Foam 30ppi;120mm Fan Accessories Fan Filter Kit 120mm 30 Pores Media Black Thrml Mgmt Access Fan Filter Guard Assembly 120mm Fan;FilterKit;RetainerandGuardUL94V-0;MediaPUFoam30ppi;120mm
G109-3A
Orion Fans
Fan Cords & Accessories Wire FanGuard Chrome for Fan Size 120mm FAN GUARD METAL 120MM Fan Guard; Steel (Wire); 4.72 in.; Electroplated Nickel Chrome/Black Anodized Fan Accessories Wire FanGuard Chrome for Fan Size 120mm FanGuard;Steel(Wire);4.72in.;ElectroplatedNickelChrome
G109-15AB
Orion Fans
Fan Cords & Accessories WireGuard for 120mm BlackFinish 1.8mmDia FAN GUARD METAL 120MM BLACK Fan Guard; Steel (Wire); 4.72 in.; Black Anodized Fan Accessories WireGuard for 120mm BlackFinish 1.8mmDia FanGuard;Steel(Wire);4.72in.;BlackAnodized
G120POG
Orion Fans
Fan Cords & Accessories Plastic PushOn Guard for Fan Size 120mm FAN GUARD PLASTIC 120MM PUSH ON Fan Accessories Plastic PushOn Guard for Fan Size 120mm
GRM120-45
Orion Fans
Fan Cords & Accessories Fan Filter 120mm 45 Pores Media Black FAN FILTER 120MM 45PPI Fan;Filter Kit;Retainer and Guard UL94V-0;Media PU Foam 45ppi;120mm Fan Accessories Fan Filter Kit 120mm 45 Pores Media Black Thrml Mgmt Access Fan Filter Guard Assembly 120mm Fan;FilterKit;RetainerandGuardUL94V-0;MediaPUFoam45ppi;120mm

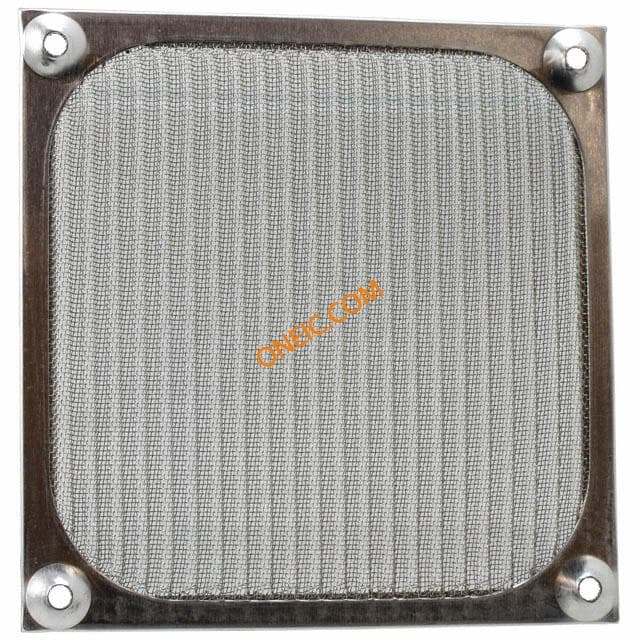

WMG120M
Orion Fans
Fan Cords & Accessories Guard 120mm Mill Mesh Filter Media FAN GUARD 120MM WIRE MESH NATURL Mesh Guard; Wire Mesh; For 60mm; 80mm; 92mm; 120mm; and 172mm Fans; Filters Fan Accessories WireMeshGuard 120mm Mill Finish Filter Thrml Mgmt Access Fan Filter Screen 120mm Aluminum/Stainless Steel MeshGuard;WireMesh;For60mm,80mm,92mm,120mm,and172mmFans,Filters

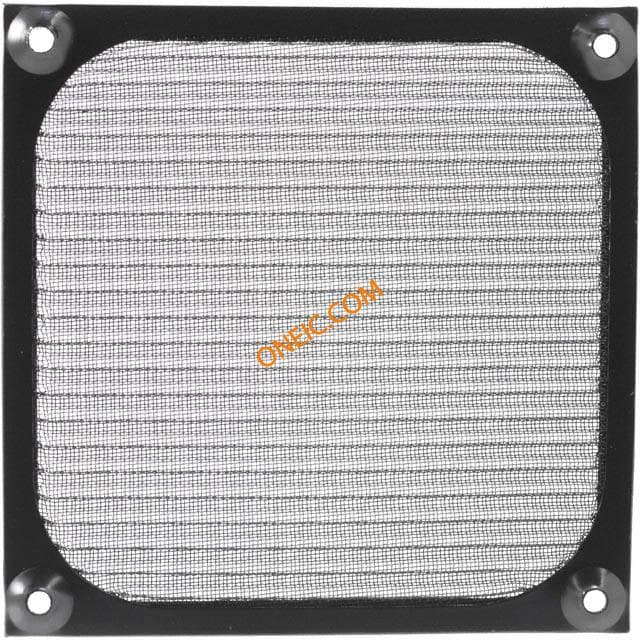

WMG120B
