OA254AN-11-1WBXC
| Manufacturer | |
| Description | FAN AC 254X89 115V 850CFM Fans Fan AC 254mm 230VAC 555CFM Ball Wires Fan;AC;115V;254x89mm;Round;850CFM;75W;69dBA;2700RPM;Leadwires |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Fans | Standard Pack | 6 |
| Product Category | Fans | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Noise | 69 dB | Speed | 2700 RPM |
| Frequency | 50/60Hz | Power (Watts) | 75W |
| Power - Rated | 75W | Voltage Range | 80 ~ 130VAC |
| Voltage Rating | 115VAC | Voltage - Supply | 115 V |
Mechanical
| RPM | 2700 RPM | Size | 10x3.5(254x89)In.(mm) |
| Air Flow | 850.0 CFM (24.07m³/min) | Fan Type | Tubeaxial |
| Material | DiecastAluminum | Termination | 2 Wire Leads |
| Bearing Type | Ball | Static Pressure | 1.140 in H2O (284.0 Pa) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Material - Frame | Aluminum |
| Primary Material | Fans | Size / Dimension | Round - 254mm Dia x 89mm W |
| Termination Style | Wire Leads | Fan Accessory Type | 10x3.5(254x89)In.(mm) |
| Dimensions - Overall | 10x3.5In. | ||
Product Info
| Type | Round | Series | OA254AN |
| Function | AC | Switch Type | AC |
| Manufacturer | OA254XCSeries | Configuration | Round |
Environmental
| Rated Life | 60000 hrs @ 40°C | Operating Temperature | -4 ~ 176°F (-20 ~ 80°C) |
| Thermal Resistance @ Natural | 850CFM | Operating Temperature - Junction | 80°C |
Documents & Media
PDF Document
Similar Parts
LFG254B
Orion Fans
Fan Cords & Accessories Plastic Louver Guard for Fan Size 254mm FAN GUARD LOUVERED 254MM BLACK Fan Accessories Louvered Fan Guard Kit for 254mm Fan Thrml Mgmt Access Fan Filter Kit 254mm Fan;Accessory;FilterKitfor254mmFan;Louvered;320x320mm;Black
$95.9480
Details
G254-10P
Orion Fans
Fan Cords & Accessories Wire FanGuard Chrome for Fan Size 254mm FAN GUARD METAL 254MM Fan Accessories Wire FanGuard Chrome for Fan Size 254mm Thrml Mgmt Access Finger Guard 254mm FanGuard;Steel(Wire);10in.(254mm);BrightNickelChrome;withCenterPlug
$16.7960
Details

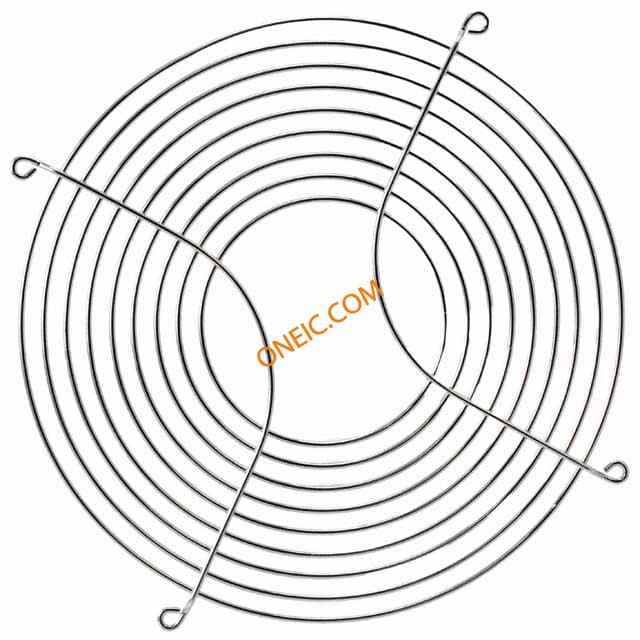

G254-10
