OA180APL-11-1TB
| Manufacturer | |
| Description | Fans Fan 180x65 115VAC Ball Term 400cfm FAN AC 180X65 115V 405CFM Fan; 180mm x 65mm;115 V; 450 CFM; 70 W; AC; 60 dB; Ball Bearing Fans Fan AC 180x65mm 115V Ball 405CFM Terminal AC Fan Ball Bearing 115V 70W 50Hz/60Hz 3300RPM 405CFM 60dB Flange Mount Fan;AC;115V;50/60Hz;180x180x65mm;Sq;405CFM;60/70W;60dBA;Terminals |
| Category |
Business
| Product | Fans | Product Category | Fans |
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Noise | 60 dB | Speed | 2750 RPM to 3300 RPM |
| Frequency | 50/60Hz | Power (Watts) | 70W |
| Power - Rated | 60 W to 70 W | Voltage Range | 60 ~ 130VAC |
| Voltage Rating | 115VAC | Voltage - Supply | 115 V |
| Current Rating (Max) | 0.48A | ||
Mechanical
| RPM | 3300 RPM | Size | 7.1x2.6(180x65)In.(mm) |
| Air Flow | 405.0 CFM (11.47m³/min) | Fan Type | Tubeaxial |
| Material | DiecastAluminum | Termination | 2 Terminals |
| Bearing Type | Ball | Static Pressure | 0.830 in H2O (206.7 Pa) |
| Housing Material | Aluminum | Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum | Primary Material | Fans |
| Size / Dimension | Square - 180mm L x 180mm H x 65mm W | Termination Style | Terminals |
| Fan Accessory Type | 7.1x2.6(180x65)In.(mm) | Dimensions - Overall | 7.1x7.1x2.6In. |
Product Info
| Type | Square | Series | OA180APL |
| Function | AC | Direction | IntakeoverStruts |
| Switch Type | AC | Manufacturer | OA180APLSeries |
| Configuration | Square | ||
Environmental
| Rated Life | 60000 hrs @ 40°C | Operating Temperature | -4 ~ 176°F (-20 ~ 80°C) |
| Thermal Resistance @ Natural | 405CFM | Operating Temperature - Junction | 80°C |
Documents & Media
Similar Parts
C45-24P
Orion Fans
Fan Cords & Accessories Fan Cord 45 Degree 24 NEMA 1-15 Plug FAN CORD 45DEG 24" W/AC PLUG Fan Cord; 24 in.; 45 deg; 1; AC Plug; NEMA; NEMA 1-15P AC Plug Fan Accessories Fan Cord 45 Degree 24 NEMA 1-15 Plug FanCord;24in.;45deg;1;ACPlug;NEMA;NEMA1-15PACPlug
C180-36
Orion Fans
Fan Cords & Accessories Fan Cord 180 Degree 36 Blunt Cut Term FAN CORD 180DEG 36" Cord; Fan; 36 in.; 180 deg; C180 Fan Accessories Fan Cord 180 Degree 36 Blunt Cut Term Cord,Fan;36in.;180deg;C180
C45-12
Orion Fans
Fan Cords & Accessories Fan Cord 45 Degree 12 Blunt Cut Term FAN CORD 45DEG 12" Cord; Fan; 12 in.; 45 deg; C45 Fan Accessories Fan Cord 45 Degree 12 Blunt Cut Term Cable Assembly Power Cord 0.304m 18AWG 2 POS Power F Cord,Fan;12in.;45deg;C45
C45-24
Orion Fans
Fan Cords & Accessories Fan Cord 45 Degree 24 Blunt Cut Term FAN CORD 45DEG 24" Cord; 24 in.; 45 deg; 2; C90; UL Listed; CSA Certified; Blunt Cut Fan Accessories Fan Cord 45 Degree 24 Blunt Cut Term Cable Assembly Power Cord 0.609m 2 POS Power F Cord;24in.;45deg;2;C90;ULListed,CSACertified;BluntCut
C45-144P
Orion Fans
Fan Cords & Accessories 45 DEG 144INCH FAN CORD 45DEG 144" W/AC PLUG Fan Accessories 45 DEG 144INCH
C45-6DC
Orion Fans
Fan Cords & Accessories Fan Cord 45 Degree 24 6 Head Cut Term FAN CORD 45DEG 6POS 24" Cord; Fan; 24 in.; 45 deg; C45 Fan Accessories Fan Cord 45 Degree 24 6 Head Cut Term Cord,Fan;24in.;45deg;C45
C45-3DC
Orion Fans
Fan Cords & Accessories Fan Cord 45 Degree 24 3 Head Cut Term FAN CORD 45DEG 3POS 24" Cord; 24 in.; 45 deg; 2; C45; UL Listed; CSA Certified; Blunt Cut Fan Accessories Fan Cord 45 Degree 24 3 Head Cut Term Cord;24in.;45deg;2;C45;ULListed,CSACertified;BluntCut
C90-144P
Orion Fans
Fan Cords & Accessories 144 90DEG FAN CORD 90DEG 144" W/AC PLUG Cord; Fan; 144 in.; 90 deg; Straight Fan Accessories 144 90DEG Cord,Fan;144in.;90deg;Straight
G180-11
Orion Fans
Fan Cords & Accessories Wire FanGuard Chrome for Fan Size 180mm FAN GUARD METAL 180MM Fan Accessories Wire FanGuard Chrome for Fan Size 180mm FINGERGUARD,6.01X6.87X.21INCHES
C180-24
Orion Fans
Fan Cords & Accessories Fan Cord 180 Degree 24 Blunt Cut Term FAN CORD 180DEG 24" Cord; Fan; 24 in.; 180 deg; C180 Fan Accessories Fan Cord 180 Degree 24 Blunt Cut Term Cord,Fan;24in.;180deg;C180
C45-4DC-72P
Orion Fans
Fan Cords & Accessories Fan Cord 45deg. 4pos 72 NEMA 1-15 Plug FAN CORD 45DEG 4POS 72" AC PLUG Fan Cord; 72 in.; 45 deg; 4; AC Plug; NEMA; NEMA 1-15P AC Plug Fan Accessories Fan Cord 45deg. 4pos 72 NEMA 1-15 Plug FanCord;72in.;45deg;4;ACPlug;NEMA;NEMA1-15PACPlug
C45-36
Orion Fans
Fan Cords & Accessories Fan Cord 45 Degree 36 Blunt Cut Term FAN CORD 45DEG 36" Cord; Fan; 36 in.; 45 deg; C45 Fan Accessories Fan Cord 45 Degree 36 Blunt Cut Term Cable Assembly Power Cord 0.914m 18AWG 2 POS Power F Cord,Fan;36in.;45deg;C45
C45-72P
Orion Fans
Fan Cords & Accessories Fan Cord 45 Degree 72 NEMA 1-15 Plug FAN CORD 45DEG 72" W/AC PLUG Cord; Fan; 72 in.; 45 deg; Straight Fan Accessories Fan Cord 45 Degree 72 NEMA 1-15 Plug Cord,Fan;72in.;45deg;Straight
C90-12
Orion Fans
Fan Cords & Accessories Fan Cord 90 Degree 12 Blunt Cut Term FAN CORD 90DEG 12" Cord; Fan; 12 in.; 90 deg; C90 Fan Accessories Fan Cord 90 Degree 12 Blunt Cut Term Cord,Fan;12in.;90deg;C90
C180T-72
Orion Fans
Fan Cords & Accessories T Plug 72 inch FAN CORD T TYPE 72" Cord; 72 in.; 90 deg; 2; C45; UL Listed; CSA Certified; Blunt Cut Fan Accessories T Plug 72 inch Cord;72in.;90deg;2;C45;ULListed,CSACertified;BluntCut
C90-48
Orion Fans
Fan Cords & Accessories Fan Cord 90 Degree 48 Blunt Cut Term FAN CORD 90DEG 48" Cord; Fan; 48 in.; 90 deg; C90 Fan Accessories Fan Cord 90 Degree 48 Blunt Cut Term Cord,Fan;48in.;90deg;C90
C45-3DC-72P
Orion Fans
Fan Cords & Accessories Fan Cord 45deg. 3pos 72 NEMA 1-15 Plug FAN CORD 45DEG 3POS 72" AC PLUG Fan Accessories Fan Cord 45deg. 3pos 72 NEMA 1-15 Plug Fan;Cord;PigtailCord;72inLeadLength;3Plugs;12inBetweenPlugs;18AWG;Plug
C180-48P
Orion Fans
FAN CORD 180DEG 48" W/AC PLUG Fan Accessories Fan Cord 180 Degree 48 NEMA 1-15 Plug
C45-144
Orion Fans
FAN CORD 45DEG 144" Fan Accessories FanCord 45 Degree 144

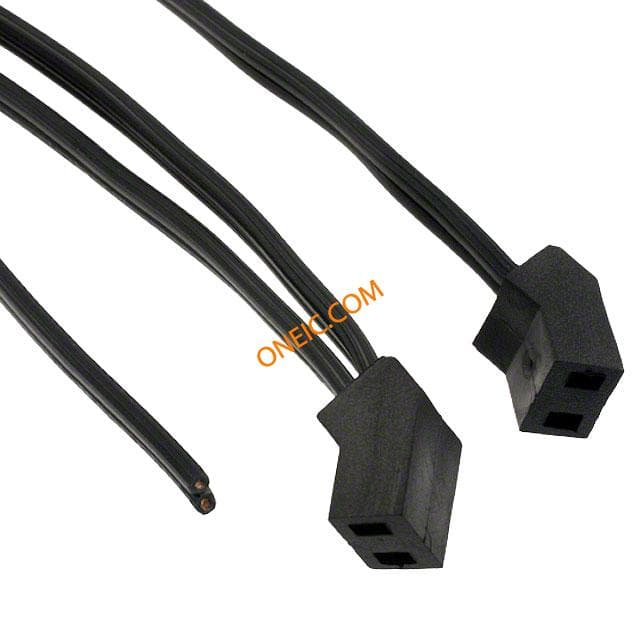

C45-2DC-60
