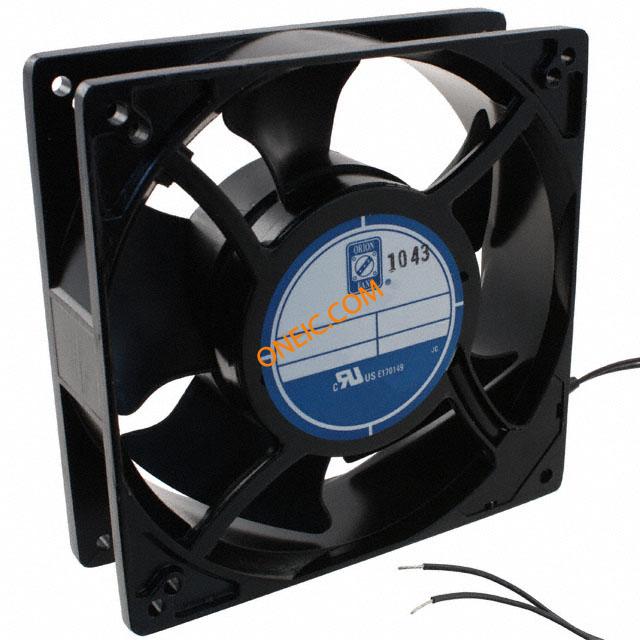

OA119AP-22-1WB

Manufacturer	Orion Fans
Description	Fans Fan 127x38 220VAC Ball Wire 130cfm FAN AC 127X38.5MM 230V 130CFM Fan; 5 x 5 in.; 1.5 in.; 230 VAC; 130 CFM (Max.); 12 W; AC; 46 dB; Ball Fans Fan AC 127x38mm 220V Ball 130CFM Wires Fan;AC;230V;127x127x38mm;Sq;130CFM;14W;46dBA;3000RPM;Leadwires
Category	Hardware and Thermal SolutionsDC FansBlowers

对参数有疑问？问 AI 助手

Business

Product	Fans	Product Category	Fans
Standard Package	1

Compliance

RoHS

Compliant

Electrical

Noise	46 dB	Speed	3000 RPM
Frequency	50/60Hz	Power (Watts)	14.0W
Power - Rated	12 W	Voltage Range	160 ~ 260VAC
Voltage Rating	230VAC	Voltage - Supply	230 V

Mechanical

RPM	3000 RPM	Size	5x1.5(127x38)In.(mm)
Air Flow	130.0 CFM (3.68m³/min)	Fan Type	Tubeaxial
Material	DiecastAluminum	Rotation	CW
Termination	2 Wire Leads	Bearing Type	Ball
Static Pressure	0.240 in H2O (59.8 Pa)	Housing Material	Aluminum
Material - Blade	Polybutylene Terephthalate (PBT)	Material - Frame	Aluminum
Primary Material	Fans	Size / Dimension	Square - 127mm L x 127mm H x 38.5mm W
Termination Style	Wire Leads	Fan Accessory Type	5x1.5(127x38)In.(mm)
Dimensions - Overall	5x5x1.5In.

Product Info

Type	Square	Series	OA119
Features	Tachometer	Function	AC
Direction	IntakeoverStruts	Switch Type	AC
Manufacturer	OA119Series	Configuration	Square

Environmental

Rated Life	60000 hrs @ 40°C	Operating Temperature	-4 ~ 176°F (-20 ~ 80°C)
Thermal Resistance @ Natural	130CFM	Operating Temperature - Junction	80°C
