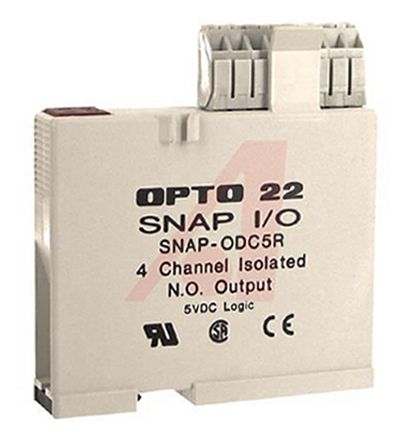

SNAP-ODC5R
| Manufacturer | |
| Description | Module; 0 to 100 VDC; 0 to 130 VAC; 0.5 A Switching @ 0 to degC; Reed Relay I/O MODULE Module;0to100VDC,0to130VAC;0.5ASwitching@0todegC;ReedRelay Opto 22 数字输入/输出模块, 18.29 x 82.55 x 69.85 mm |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Standards | ULListed,CEMarked | Tariff No | 85364110 |
Electrical
| Output | 0to100VDC | Input Type | :5VDC |
| Output Range | 0to100VDC | Turn On Time | 500μS |
| Delay Time - OFF | 500μS | Voltage - Supply | 5VDC |
| Current - Leakage | 0mA | Number of Outputs | :4 |
| Number of Channels | 4 | Resistance - Input | 220Ohms |
| Analog Input:Output | :4 | Current - Input Bias | 50mA |
| Voltage - Continuous Operating (Max) (MCOV) | 0to100VDC,0to130VAC | ||
Mechanical
| Weight | 0.1 | Contact Form | ReedRelay |
| Mounting Style | DINRail | Primary Material | Control |
| Size / Dimension | 82.55mmL×18.29mmW×90.17mmH | ||
Product Info
| Type | Output | Manufacturer | SNAPSeries |
| Connection Type | Backplane | Leaded Process Compatible | :No |
Environmental
| Temperature - Test | :No | Operating Temperature | 0to+70°C |
