OVSRRGBCC3
| Manufacturer | |
| Description | Standard LEDs - SMD RGB Full Color 150 Deg Top/RA MNT LED RED/GRN/BLUE 1204 SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 70 Days | Other Names | 365-1410-2 |
| Subcategory | LED | Product Category | Standard LEDs - SMD |
| Standard Package | 2,000 | Factory Pack Quantity | 2000 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Optic Size | 1204 | Viewing Angle | 150 deg |
| Current - Output | 20mA | Voltage - Supply | 2V Red, 3.3V Green, 3.3V Blue |
| LED Forward Current | 20 mA | LED Forward Voltage | 2 V, 3.3 V, 3.3 V |
| Millicandela Rating | 105mcd Red, 330mcd Green, 110mcd Blue | Current Rating (Max) | 20mA |
| Wavelength - Dominant | 625 nm, 530 nm, 475 nm | MSCP (Mean Spherical Candle Power) | 105mcd Red, 330mcd Green, 110mcd Blue |

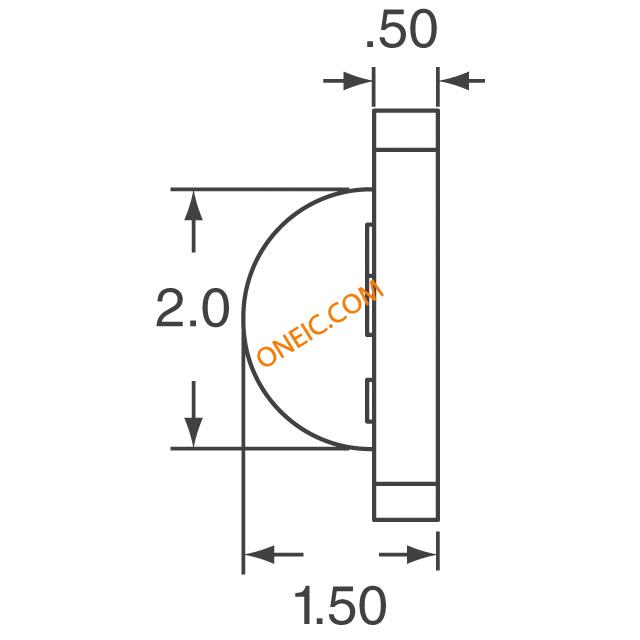

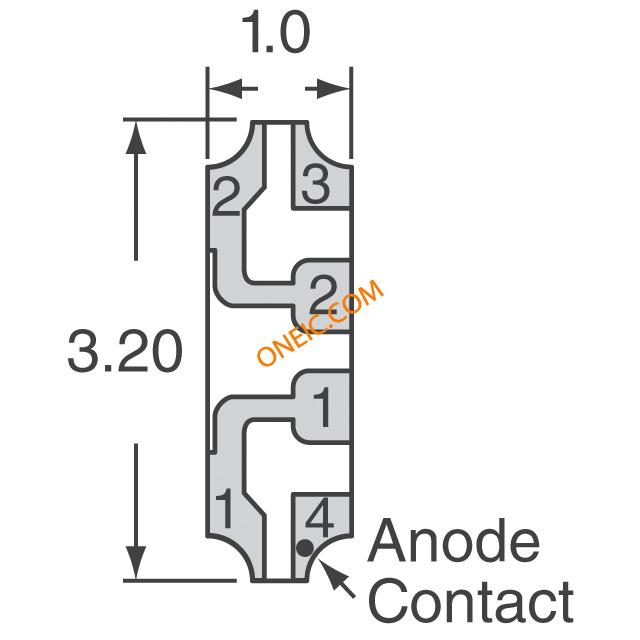

Mechanical
| Size | 3.20mm L x 1.00mm W | Color | Red, Green, Blue (RGB) |
| Height | 1.50mm | Packaging | Reel |
| Mounting Type | Surface Mount | Package / Case | 1204 |
| Lens Style/Size | Rectangle with Domed Top, 2mm x 1mm | Size / Dimension | 3.20mm L x 1.00mm W |
| Illumination Color | RGB | ||
Product Info
| Lens Type | Diffused, White | Output Configuration | Surface Mount |
Environmental
| Operating Temperature | + 85 C | Luminous Flux @ Current/Temperature | 105 mcd, 330 mcd, 110 mcd |
