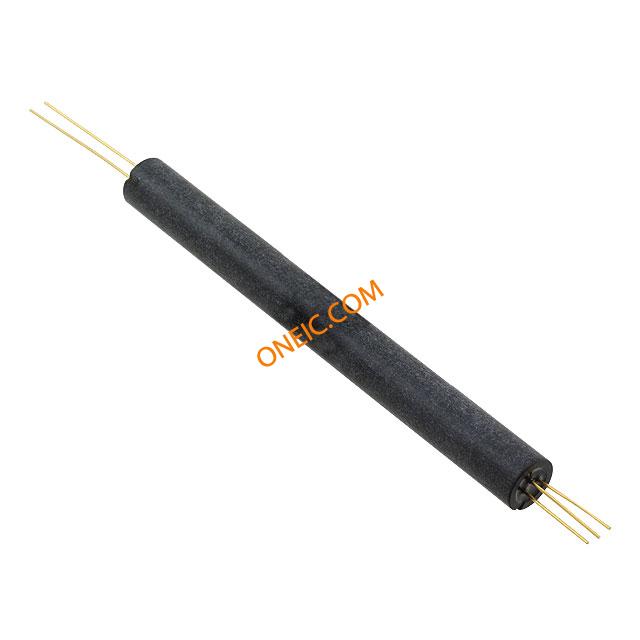

OPI150
| Manufacturer | |
| Description | High Speed Optocouplers Optoisolator OPTOISOLATOR TRANS 50KVRMS |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 56 Days | Subcategory | Photointerrupter |
| Product Category | High Speed Optocouplers | Standard Package | 25 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Output | Phototransistor | Data Rate | 5 MBd |
| Input Type | DC | Output Type | Transistor |
| Current - Output | 25 mA | Voltage - Supply | 1.5 V |
| Number of Channels | 1 Channel | LED Forward Current | 50 mA |
| Voltage - Isolation | 50000 Vrms | Vce Saturation (Max) | 500mV |
| Voltage - Input (Min) | 30V | Power - Average Forward | 250 mW |
| Power Dissipation (Max) | 250 mW | Current - Output / Channel | 50mA |
| Current Transfer Ratio (Min) | 10% @ 10mA | Voltage - Forward (Vf) (Min) | 1.3 V |
| Current - DC Forward (If) (Max) | 25 mA | Current - Peak Pulse (10/1000us) | 50 mA |
| Voltage - Reverse Standoff (Typ) | 3 V | Voltage - Forward (Vf) (Max) @ If | 1.6 V |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V | Current - Continuous Drain (Id) @ 25degC | 25 mA |
| Current - Average Rectified (Io) (per Diode) | 50mA | ||
Mechanical
| Packaging | Bulk | Mounting Type | Through Hole |
| Package / Case | Axial - 5 leads | ||
Product Info
| Manufacturer | Optek / TT Electronics | ||
Environmental
| Operating Temperature | + 85 C | ||
