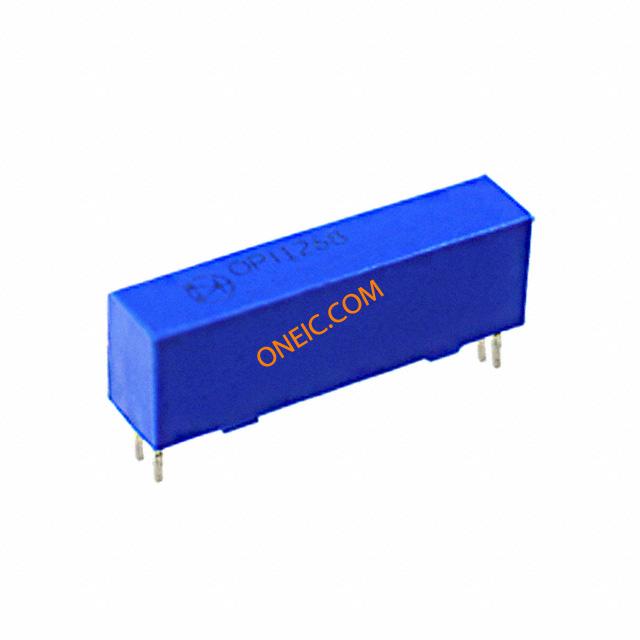

OPI1268S
| Manufacturer | |
| Description | High Speed Optocouplers OPTOISOLATOR HI-VOLTAGE/HI-SPEED ISOLATOR 20KVDC 1CH OPEN COL |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 56 Days | Other Names | 365-1562 |
| Subcategory | Logic Output Photocouplers | Product Category | High Speed Optocouplers |
| Standard Package | 50 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Output | Photo IC | Data Rate | 2 MBd |
| Fall Time | 100 ns | Input Type | AC/DC |
| Output Type | Open Collector | Data Rate (Max) | 2Mbps |
| Rise Time (Typ) | 100 ns | Voltage - Supply | 1.5 V |
| Number of Channels | 1 Channel | Resistance @ If, F | 100ns @ 10mA |
| LED Forward Current | 30 mA | Voltage - Isolation | 20000 Vmrs |
| Current Rating (Max) | 25mA | Power - Average Forward | 100 mW |
| Power Dissipation (Max) | 100 mW | Current - Output / Channel | 25mA |
| Voltage - Forward (Vf) (Min) | 1.4 V | Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Reverse Standoff (Typ) | 3 V | Voltage - Forward (Vf) (Max) @ If | 1.8 V |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V | Propagation Delay tpLH / tpHL (Max) | 100ns @ 10mA |
| Current - Average Rectified (Io) (per Diode) | 50mA | ||
Mechanical
| Packaging | Tube | Mounting Type | Through Hole |
| Package / Case | 6-DIP (1.100", 27.94mm), 5 Leads | ||
Product Info
| Manufacturer | Optek / TT Electronics | Output Configuration | Through Hole |
Environmental
| Mechanical Life | New At Mouser | Operating Temperature | + 100 C |
