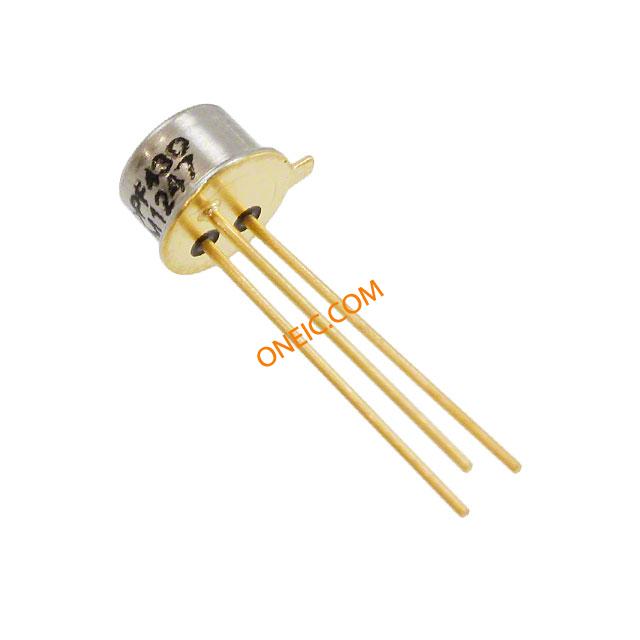

OPF430
| Manufacturer | |
| Description | Photodiodes Pin Photodiode PHOTODIODE FBR OPTIC HS PIN TO46 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | PIN Photodiodes | Lead Time | 140 Days |
| Subcategory | Photodiode | Product Category | Photodiodes |
| Standard Package | 25 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Fall Time | 2 ns | Wavelength | 860nm |
| Power - Rated | 200 mW | Sensing Angle | 80 deg |
| Viewing Angle | 80° | Spectral Range | 800nm ~ 900nm |
| Frequency Range | 800nm ~ 900nm | Rise Time (Typ) | 2 ns |
| Responsivity @ nm | 0.55 A/W | Wavelength - Peak | 860 nm |
| Current - Dark (Max) | 5 nA | Current - Dark (Typ) | 0.1 nA |
| Voltage - DC Reverse (Vr) (Max) | 100V | Voltage - Gate Trigger (Vgt) (Max) | 100 V |
Mechanical
| Packaging | Plastic Tray | Mounting Style | Through Hole |
| Package / Case | TO-46 | Lens Style/Size | 80° |
Product Info
| Diode Type | PIN | ||
Environmental
| Operating Temperature | + 125 C | ||
