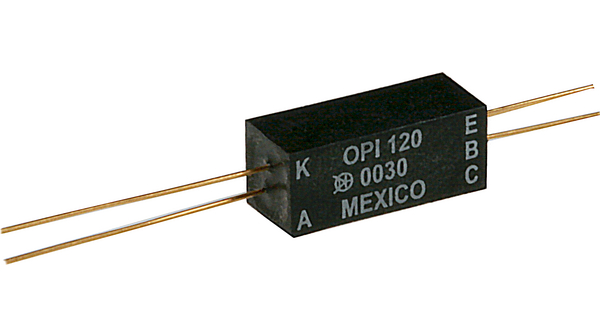

OPI120
| Manufacturer | |
| Description | Optocoupler DC-IN 1-CH Transistor DC-OUT 5-Pin OPTOCOUPLER 1-CH Optoisolator; Analog; Axial; Transistor Optocoupler Axial, OPI120, Optek Optek 系列 光耦 , 直流输入, 光电达林顿管/光敏器件/光电晶体管输出, 5针 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | EU RoHS | Compliant |
| Tariff No | 85411000 | ||
Electrical
| Output | Transistor | Input Type | DC |
| Output Type | DC | Voltage Rating | :25V |
| Output Isolation | :Phototransistor | Number of Channels | 1 |
| Voltage - Isolation | :15kV | Voltage - Input (Min) | 25 |
| Power Dissipation (Max) | 250 | Voltage Regulation - Load | 3 |
| Current - Input Bias (Max) | :30mA | Current Transfer Ratio (Max) | 70(Typ) |
| Current Transfer Ratio (Min) | 20 | Voltage - Forward (Vf) (Max) @ If | 1.5 |
Mechanical
| Width | 8.13(Max) | Weight | 0.00204 |
| Lead Style | Through Hole | Mounting Type | Through Hole |
| Number of Pins | :5 | Optic Material | :Through Hole |
| Package Cooled | Axial | Length - Overall | 20.32 |
| Number of Positions | 5 | Shell Size - Insert | 8.13(Max) |
Product Info
| Type | Analog | Printed Circuit Board | 5 |
Environmental
| Operating Temperature | :100°C | ||
