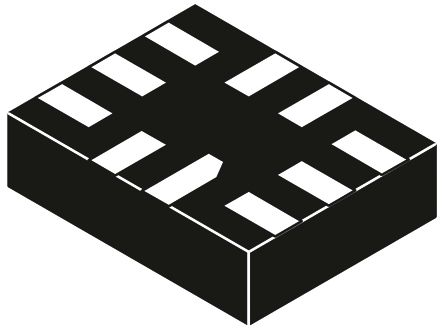

NLAS7222CMUTBG
| Manufacturer | |
| Description | Analog Switch Single DPDT 10-Pin UQFN T/R Analog Switch ICs DATA ANALOG SWITCH IC USB SWITCH DPDT 10UQFN ON Semiconductor 模拟开关, 单双刀双掷, 480Mbit/s, 1.65 → 4.5 V电源电压, 10针 UQFN封装 USB Switch ICs DATA ANALOG SWITCH |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | USB 2.0 Switches | Product Category | Analog Switch ICs |
| Standard Package | Cut Tape | Factory Pack Quantity | 3000 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Circuit | 1 x DPDT | Input Type | 差分 |
| Input Signal | Yes | Turn On Time | 14(Typ)@3.3V ns |
| Output Signal | 差分 | Power - Input | Single |
| Data Rate (Max) | 480 Mbps | Current - Output | 1µA |
| Current - Supply | 1 uA | Delay Time - OFF | 10(Typ)@3.3V ns |
| Number of Inputs | 2 | Voltage - Supply | 1.65 V |
| Number of Outputs | 4 | Power Supply Type | Single |
| Number of Channels | 1 | Number of Elements | 1 |
| Current Rating (Max) | 1µA | Voltage Supply Source | Single Supply |
| Switch Function/Rating | DPDT | On-State Resistance (Max) | 12@3.3V Ohm |
| Voltage - Supply Span (Typ) | Not Required V | Switch Time (Ton, Toff) (Max) | 10 ns |
| Multiplexer/Demultiplexer Circuit | Single DPDT | ||
Mechanical
| Width | 1.4mm | Height | 0.55mm |
| Length | 1.8mm | Bandwidth | 700 MHz |
| Packaging | Reel | Lead Style | No Lead |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 10 | Package / Case | 10UQFN |
| Package Cooled | uQFN | Package Quantity | UQFN |
| Size / Dimension | 1.8 x 1.4 x 0.55mm | Number of Positions | 10 |
| Supplier Device Package | 10-UQFN (1.4x1.8) | ||
Product Info
| Type | Analog Switch | Series | NLAS7222C |
| Function | USB Switch | Polarity | Non-Inverting |
| Switch Type | 模拟 | Circuit Type | 1 x DPDT |
| Manufacturer | ON Semiconductor | Configuration | Single DPDT |
| Channels per IC | 单双刀双掷 | Number of Switches | 1 Switch |
Environmental
| Operating Temperature | + 85 C | ||
