NCP3063BPG
| Manufacturer | |
| Description | Conv DC-DC Single Non-Inv/Inv/Step Up/Step Down 3V to 40V 8-Pin PDIP Rail IC REG BUCK BOOST INV ADJ 8DIP Supply Voltage Max |
| Category |
Business
| Standard Package | Rail / Tube | Standard Package Name | PDIP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365005 | ||
Electrical
| PWM Type | Hybrid | Efficiency | 85.5(Min) % |
| Output Type | Adjustable | Voltage Rating | 3 V |
| Line Regulation | 1.5|2|8 mV | Load Regulation | 1.6|5|9 mV |
| Current - Output | 1.5 A | Voltage - Supply | 3 to 40 V |
| Number of Outputs | 1 | Switching Regulator | Yes |
| Frequency - Switching | 190 kHz | Synchronous Rectifier | No |
| Voltage - Input (Min) | 1.25 V ~ 40 V | ||
Mechanical
| Width | 6.35 | Weight | 0.009 |
| Packaging | Rail | Lead Style | Through Hole |
| Mounting Type | Through Hole | Package / Case | 8PDIP |
| Length - Overall | 9.27 | Package Quantity | PDIP |
| Number of Positions | 8 | Shell Size - Insert | 5.33(Max) - 0.38(Min) |
| Supplier Device Package | 8-PDIP | ||
Product Info
| Type | Non-Inverting|Inverting|Step Up|Step Down | Printed Circuit Board | 8 |
Environmental
| Operating Temperature | -40 to 125 °C | ||
Documents & Media
Similar Parts

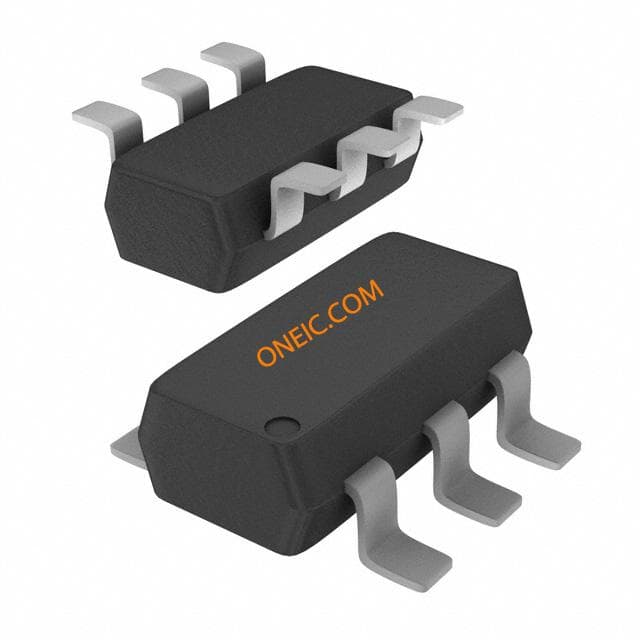

NTGS4111PT1G
