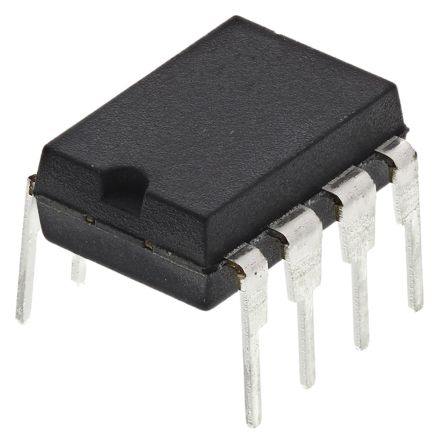

NCP1052P100G
| Manufacturer | |
| Description | Monolithic High Voltage Gated Oscillator Power Switching Regulator 7-Pin PDIP Rail MONOLITHIC HIGH VOLTAGE GATED OSCILLATOR POWER SWITCHING REGULATOR IC CONV PWM UVLO HV 8PDIP Gated Osc. Regulator 300mA 100kHz PDIP8 AC/DC Converters 700V 300mA Switching No Auxillary Winding IC CONV PWM UVLO HV 7DIP 高电压转换开关, 8引脚 PDIP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | NCP1052P100GOS | Product Category | AC/DC Converters |
| Standard Package | Rail / Tube | Factory Pack Quantity | 50 |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Output Power | 3 W to 20 W | Power (Watts) | 40W |
| Voltage Rating | 10 V | Frequency Range | 84kHz ~ 107kHz |
| Current - Output | 6.3 mA | Duty Cycle (Max) | 77 % |
| Output Isolation | Isolated | Voltage - Supply | 85 V |
| Current - Leakage | 321mA | Number of Outputs | 1 |
| Voltage - Breakdown | 700V | Frequency - Switching | 44 kHz, 100 kHz, 136 kHz |
| Voltage - Input (Min) | 7.5 V ~ 10 V | Current - Short Circuit (Isc) | 321mA |
Mechanical
| Width | 6.6mm | Height | 3.44mm |
| Length | 10.16mm | Packaging | Tube |
| Lead Style | Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | 8 |
| Package / Case | 7PDIP | Package Cooled | PDIP |
| Length - Overall | 10.16(Max) | Package Quantity | PDIP |
| Size / Dimension | 10.16 x 6.6 x 3.44mm | Number of Positions | 7 |
| Shell Size - Insert | 3.44(Max) | Supplier Device Package | 7-PDIP |
Product Info
| Type | Monolithic High Voltage Regulators | Function | Y |
| Printed Circuit Board | 7 | ||
Environmental
| Operating Temperature | -40 to 150 °C | ||
