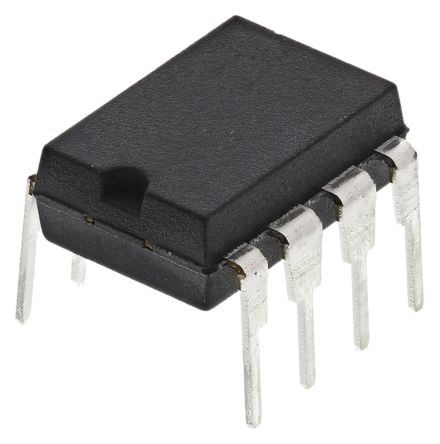

点击放大查看
NCP1051P136G
| Manufacturer | |
| Description | Monolithic High Voltage Gated Oscillator Power Switching Regulator 7-Pin PDIP Rail MONOLITHIC HIGH VOLTAGE GATED OSCILLATOR POWER SWITCHING REGULATOR IC CONV PWM UVLO HV 8PDIP Gated Osc. Regulator 200mA 136kHz PDIP8 AC/DC Converters 700V 200mA Switching No Auxillary Winding 高电压转换开关, 8引脚 PDIP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | NCP1051P136GOS | Product Category | AC/DC Converters |
| Standard Package | Rail / Tube | Factory Pack Quantity | 50 |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Power (Watts) | 40W | Voltage Rating | 10 V |
| Frequency Range | 113kHz ~ 145kHz | Output Isolation | Isolated |
| Voltage - Supply | -0.3 → 10 V | Current - Leakage | 214mA |
| Voltage - Breakdown | 700V | Voltage - Input (Min) | 7.5 V ~ 10 V |
| Current - Short Circuit (Isc) | 214mA | ||
Mechanical
| Width | 6.6mm | Height | 3.44mm |
| Length | 10.16mm | Packaging | Tube |
| Lead Style | Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | 8 |
| Package / Case | 7PDIP | Package Cooled | PDIP |
| Length - Overall | 10.16(Max) | Package Quantity | PDIP |
| Size / Dimension | 10.16 x 6.6 x 3.44mm | Number of Positions | 7 |
| Shell Size - Insert | 3.44(Max) | Supplier Device Package | 7-PDIP |
Product Info
| Type | Monolithic High Voltage Regulators | Function | Y |
| Printed Circuit Board | 7 | ||
Environmental
| Operating Temperature | -40 to 150 °C | ||
