MC74LCX16245DTG
| Manufacturer | |
| Description | Bus XCVR Dual 16-CH 3-ST 48-Pin TSSOP Rail IC TXRX 16BIT NONINV LV 48-TSSOP MC74LCX16245DTG, Dual Bus Transceiver LCX, 16-Bit Non-Inverting 2 to 3.6V 48-Pin TSSOP Bus Transceivers Low Voltage CMOS 16-Bit Transceiver IC, CMOS TRANCEIVER, 16BIT, SMD TRANSCEIVER,LOWVOLTAGECMOS16-BIT,20PINTSSOP , 双 16位 非反相 总线收发器, 48针 TSSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Bus Transceivers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 39 | Standard Package Name | TSSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| Data Rate | Bi-Directional | Logic Type | LCX |
| Output Type | 3-State | Number of I/O | 5 V |
| Output Signal | LVCMOS | Voltage Rating | 2.5|3.3 V |
| Current - Output | 20μA | Voltage - Output | LVCMOS |
| Voltage - Supply | 2 V ~ 3.6 V | Propagation Delay | 50pF |
| Number of Channels | 16 | Number of Elements | 2 |
| Voltage - Supply (Min) | 3.6 V | Input Logic Level - Low | LVTTL/TTL |
| Power Dissipation (Max) | 200 mW | Propagation Delay (Max) | 8.5 |
| Delay Time - Propagation | 5.2 ns | Input Logic Level - High | LVTTL|TTL |
| Current - Output High, Low | 24mA, 24mA | Number of Bits per Element | 8 |
| Max Propagation Delay @ V, Max CL | 5.2 ns @ 2.7 V | ||
Mechanical
| Width | 6.2mm | Height | 0.95mm |
| Length | 12.6mm | Weight | 0.002188 |
| Packaging | Rail | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :48 |
| Package / Case | 48TSSOP | Package Cooled | TSSOP |
| Material Finish | :- | Package Quantity | TSSOP |
| Primary Material | Transceivers | Size / Dimension | 12.6 x 6.2 x 0.95mm |
| Number of Positions | 48 | Supplier Device Package | 48-TSSOP |
Product Info
| Type | 16-bit | Series | :LCX |
| Process | CMOS | Function | Bus Transceiver |
| Polarity | Non-Inverting | Base Unit | :7416245 |
| Technology | CMOS | Number of Circuits | 2 |
| Number of Transmitters | 2 | Number of Inputs and Type | 1 Low/High |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
RE933-09
Roth Elektronik

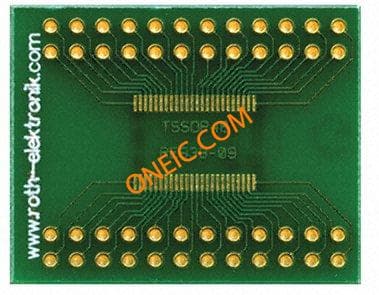

RE933-09, Surface Mount (SMT) Board TSSOP Epoxy Glass Double-Sided 34.5 x 27 x 1.5mm FR4 ADAPTOR, SMD, TSSOP-48, 0.50MM Board: universal; multiadapter; W:58.9mm; L:120.1mm; TSSOP48 Laboratory card FR4 Epoxide + chem. Ni/Au TSSOP48 Adapter, RE933-09, Roth Elektronik
