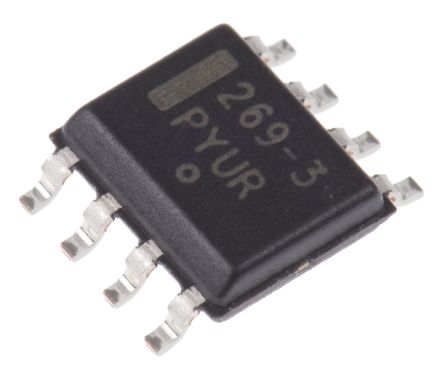

MC33269D-3.3G
| Manufacturer | |
| Description | LDO Regulator Pos 3.3V 0.8A 8-Pin SOIC N Rail IC REG LDO 3.3V 0.8A 8SOIC MC33269D-3.3G, Low Dropout Voltage Regulator, 0.8A, 3.3V ±1%, 8-Pin, SOIC LDO Voltage Regulators 3.3V ADJ 800mA IC, LINEAR VOLTAGE REGULATOR Voltage regulator,MC33269D3.3 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | LDO Voltage Regulators | Standard Package | Rail / Tube |
| Factory Pack Quantity | 98 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| Accuracy | ±1 % | Output Type | Fixed |
| Regulator Type | LDO | Voltage Rating | 20 V |
| Line Regulation | 0.3 % | Load Regulation | 0.5 % |
| Current - Output | 0.8(Typ) A | Voltage - Supply | 1@500mA|1.1@800mA V |
| Number of Outputs | 1 | Regulator Topology | Positive Fixed |
| Number of Regulators | 1 | Voltage - Input (Min) | 3.3V |
| Output Voltage Accuracy | �1 % | Current - Quiescent (Iq) | 5.5mA |
| Current - Quiescent (Max) | 8 mA | Voltage Regulation - Load | 1 % |
| Current - Input Bias (Max) | 5.5 mA | Voltage - Continuous Operating (Max) (MCOV) | :20V |
Mechanical
| Width | 4mm | Height | 1.5mm |
| Length | 5mm | Weight | 0.02 |
| Packaging | Rail | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8SOIC N | Package Cooled | SOIC N |
| Material Finish | :- | Length - Overall | 5(Max) |
| Package Quantity | SOIC N | Size / Dimension | 5 x 4 x 1.5mm |
| Number of Positions | 8 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 8-SOIC N | ||
Product Info
| Type | LDO | Features | Current Limit|Short Circuit Prote... |
| Polarity | Positive | Topology | LDO |
| Printed Circuit Board | 8 | ||
Environmental
| Operating Temperature | -40 to 125 °C | ||
