MC14541BDG
| Manufacturer | |
| Description | Programmable Timer Single 14-Pin SOIC Rail Timers & Support Products 3-18V with Auto Programmable Timer Single 14-Pin SOIC N Rail IC OSC PROG TIMER 3MHZ 14SOIC 16-bit programmable timer,MC14541BD BP MC14541BDG, Programmable Timer 3MHz, 3 to 18V, 14-Pin SOIC-14 4000 CMOS, SMD, 4541, SOIC14, 15V MC14541BDG 3MHz 可编程计时器电路, 3 → 18 V, 14针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Timers & Support Products | Standard Package | Rail / Tube |
| Factory Pack Quantity | 55 | Standard Package Name | SOIC |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | :4541 | ||
Electrical
| Frequency | 3MHz | Logic Type | :4541 |
| Timer Type | Programmable | Input Signal | :Yes |
| Operating Mode | :- | Voltage Rating | 3 V |
| Frequency - Max | 3MHz | Current - Output | 15µA |
| Voltage - Supply | 3.3|5|9|12|15 V | Number of Elements | 1 |
| Voltage - Supply (Min) | 18 V | Power Dissipation (Max) | 500 mW |
| Propagation Delay (Max) | 18000 ns, 10000 ns, 7500 ns | Current - Quiescent (Max) | 0.02mA |
| Current - Output High, Low | -16.3(Min) mA | Max Propagation Delay @ V, Max CL | 18000 ns @ 5 V |
Mechanical
| Width | 4mm | Height | 1.5mm |
| Length | 8.75mm | Weight | 0.000001 |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :14 | Package / Case | 14SOIC |
| Package Cooled | SOIC-14 | Material Finish | :- |
| Length - Overall | 8.75(Max) | Package Quantity | SOIC N |
| Size / Dimension | 8.75 x 4 x 1.5mm | Number of Positions | 14 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 14-SOICN |
Product Info
| Type | Programmable | Series | :4000 CMOS |
| Function | :Programmable Oscillator Timer | Base Unit | :14541 |
| Number of Timers | :1 | Printed Circuit Board | 14 |
Environmental
| Operating Temperature | + 125 C | ||
Documents & Media
Similar Parts
CD4541BM
Texas Instruments Incorporated
Programmable Timer Single 14-Pin SOIC Tube
$0.4602
Details
RE932-03
Roth Elektronik

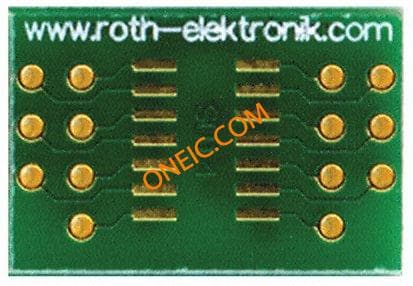

RE932-03, Surface Mount (SMT) Board SOIC Epoxy Glass Double-Sided 20.5 x 13.5 x 1.5mm FR4 ADAPTOR, SMD, SO-14, 1.27MM Board: universal; multiadapter; W:20.5mm; L:13.5mm; SO10 Laboratory card FR4 Epoxide + chem. Ni/Au SO14 Adapter, RE932-03, Roth Elektronik
