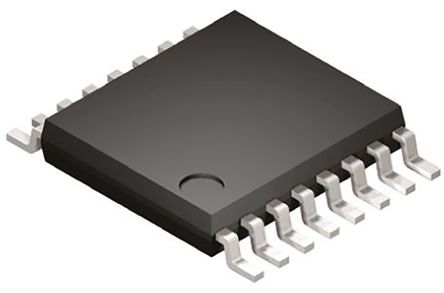

MC14053BDTR2G
| Manufacturer | |
| Description | Analog Multiplexer Triple 2:1 16-Pin TSSOP T/R Multiplexer Switch ICs 3-18V Triple SPDT Sw -55 to 125 deg C IC MUX/DEMUX TRIPLE 2X1 16TSSOP IC, ANALOG MUX/DMUX, TRI 2 X 1, TSSOP-16 ON Semiconductor 多路复用器/多路分离器, 三单刀双掷, 3 → 18 V 直流电源电压, 16针 TSSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | MC14053BDTR2GOSCT | Product Category | Multiplexer Switch ICs |
| Standard Package | Tape & Reel | Factory Pack Quantity | 2500 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85411000 | Rad Hardened | No |
Electrical
| Circuit | 3 x SPDT | Input Signal | Yes |
| Turn On Time | 550@5V ns | Power - Input | Single |
| Power - Rated | 0.5 W | Current - Output | :15nA |
| Delay Time - OFF | 550@5V ns | Number of Inputs | 6 |
| Voltage - Supply | 3 V | Number of Outputs | 3 |
| Power Supply Type | Single | Number of Channels | 3 |
| Voltage Supply Source | Dual Supply | Power Dissipation (Max) | 500 mW |
| Delay Time - Propagation | 65 ns | On-State Resistance (Max) | 1050@5V Ohm |
| Voltage - Supply Span (Typ) | Not Required V | Switch Time (Ton, Toff) (Max) | 550 ns |
| Max Propagation Delay @ V, Max CL | 15@15V|20@10V|65@5V ns | Multiplexer/Demultiplexer Circuit | 2:1 |
Mechanical
| Weight | 0 | Packaging | Reel |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 16TSSOP |
| Package Cooled | TSSOP | Package Quantity | TSSOP |
| Number of Positions | 16 | Supplier Device Package | 16-TSSOP |
Product Info
| Type | Analog Multiplexer | Function | Multiplexer/Demultiplexer |
| Configuration | Triple 2:1 | Number of Circuits | :3 |
| Number of Switches | 3 | ||
Environmental
| Operating Temperature | + 125 C | ||
