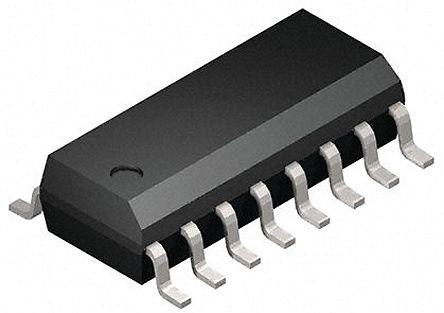

MC14053BDR2G
| Manufacturer | |
| Description | Analog Multiplexer Triple 2:1 16-Pin SOIC T/R Multiplexer Switch ICs 3-18V Triple SPDT Sw -55 to 125 deg C IC MUX/DEMUX TRIPLE 2X1 16SOIC Logic;500mWDissipation;-0.5TO18VDCSUPPLY;SOIC-16 ON Semiconductor 多路复用器/多路输出选择器总线开关, 16针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Multiplexers/Demultiplexers | Other Names | MC14053BDR2GOSTR |
| Product Category | Multiplexer Switch ICs | Standard Package | Tape & Reel |
| Factory Pack Quantity | 2500 | Standard Package Name | SOIC |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Circuit | 3 x SPDT | Logic Type | Multiplexer/Demultiplexer |
| Input Signal | Yes | Turn On Time | 550@5V ns |
| Power - Input | Single | Power - Rated | 0.5 W |
| Current - Output | 600μA | Delay Time - OFF | 550@5V ns |
| Number of Inputs | 6 | Voltage - Supply | 3 V |
| Number of Outputs | 3 | Power Supply Type | Single |
| Number of Channels | 3 | Voltage Supply Source | Dual Supply |
| Power - Average Forward | 500 mW | Power Dissipation (Max) | 500 mW |
| Delay Time - Propagation | 65 ns | On-State Resistance (Max) | 1050@5V Ohm |
| Voltage - Supply Span (Typ) | Not Required V | Switch Time (Ton, Toff) (Max) | 550 ns |
| Max Propagation Delay @ V, Max CL | 15@15V|20@10V|65@5V ns | Multiplexer/Demultiplexer Circuit | 2:1 |
Mechanical
| Width | 4mm | Height | 1.5mm |
| Length | 10mm | Bandwidth | 17 MHz |
| Packaging | Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 16 | Package / Case | 16SOIC |
| Package Cooled | SOIC | Length - Overall | 10(Max) |
| Package Quantity | SOIC | Size / Dimension | 10 x 4 x 1.5mm |
| Number of Positions | 16 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 16-SOIC | ||
Product Info
| Type | Analog Multiplexer | Series | 4000B |
| Features | Digitally-ControlledAnalogSwitch,TripleSPDT | Function | Multiplexer/Demultiplexer |
| Circuit Type | 3 x SPDT | Manufacturer | ON Semiconductor |
| Configuration | Triple 2:1 | Number of Switches | 3 |
| Printed Circuit Board | 16 | ||
Environmental
| Operating Temperature | + 125 C | Usable Temperature Range | -55to+125°C |
