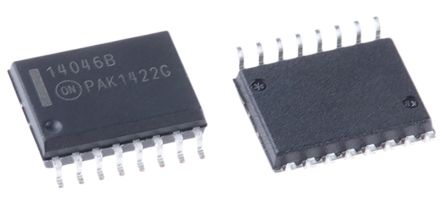

MC14046BDWG
| Manufacturer | |
| Description | PLL Single 16-Pin SOIC W Rail Phase Locked Loops - PLL LOG CMOS PLL PHASE LOCKED LOOP IC PHASE LOCKED LOOP 16-SOIC PLL 16-Pin SOIC W Tube ON Semiconductor 锁相环电路, 16针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Phase Locked Loops - PLL | Standard Package | Rail / Tube |
| Factory Pack Quantity | 47 | Standard Package Name | SOIC W |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| PLL | Yes | Input | CMOS |
| Output | CMOS | Current Ratio | 2:2 |
| Frequency - Max | 1.9MHz | Oscillator Type | No/No |
| Voltage - Supply | 3.3|5|9|12|15 V | Divider/Multiplier | No/No |
| Number of Elements | 1 | Current Rating (Max) | ±1 μA |
| Frequency - Output 1 | 0.5MHz | Frequency - Output 4 | 0.7MHz |
| Ratio - Input:Output | 2:2 | Voltage - Supply (Min) | 3 V |
| Differential - Input:Output | No/No | ||
Mechanical
| Width | 7.6mm | Height | 2.4mm |
| Length | 10.45mm | Packaging | Rail |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 16 |
| Package / Case | 16SOIC W | Package Cooled | SOIC W |
| Length - Overall | 10.45(Max) | Package Quantity | SOIC W |
| Size / Dimension | 10.45 x 7.6 x 2.4mm | Number of Positions | 16 |
| Shell Size - Insert | 2.4(Max) | Supplier Device Package | 16-SOIC W |
Product Info
| Type | PLL | Series | MC14046B |
| DELETED | Compliant | Manufacturer | ON Semiconductor |
| Programmable | No | Number of Circuits | 1 |
| RF Family/Standard | MC14046 | Output Configuration | Surface Mount |
| Printed Circuit Board | 16 | ||
Environmental
| Operating Temperature | -55 to 125 °C | Operating Temperature - Junction | 125C |
