MC100LVEP14DTG
| Manufacturer | |
| Description | Clock Driver 2-IN ECL/PECL 20-Pin TSSOP Rail IC CLK BUFFER 2:5 2.5GHZ 20TSSOP MC100LVEP14DTG, Clock Driver ECL, PECL 2-Input, 20-Pin TSSOP Clock Drivers & Distribution 2.5V/3.3V 1:5 Diff ECL/PECL/HST Driver CLOCK DISTRIBUTOR, D ECL/PECL/HSTL Logic,ECL,2.5V/3.3V1:5DifferentialECL/PECL/HSTLClockDriver,TSSOP 2输入 时钟生成器, ECL，PECL输出, 20针 TSSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | MC100LVEP14DTGOS | Product Category | Clock Drivers & Distribution |
| Standard Package | Rail / Tube | Factory Pack Quantity | 75 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Rad Hardened | No | ||
Electrical
| Input | ECL, HSTL, LVDS, PECL | Output | ECL, PECL |
| Frequency | :2GHz | Input Type | LVECL, LVPECL |
| Logic Type | ClockDriver | Output Type | ECL, PECL |
| Input Signal | ECL|HSTL|PECL | Signal Types | ECL/HSTL/PECL |
| Operating Mode | Differential | Voltage Rating | -2.375|2.375 V |
| Frequency - Max | 2.5GHz | Current - Output | 60 mA |
| Number of Inputs | 2 | Voltage - Output | ECL|PECL |
| Voltage - Supply | -2.5|-3.3|2.5|3.3 V | Number of Outputs | :5 |
| Frequency - Output 1 | 2 GHz | Ratio - Input:Output | 2:5 |
| Voltage - Supply (Min) | -3.8|3.8 V | Current - Input Bias (Max) | :150µA |
| Differential - Input:Output | Yes/Yes | ||
Mechanical
| Width | 4.5mm | Height | 1.05mm |
| Length | 6.6mm | Weight | 0.01 |
| Packaging | Rail | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :20 |
| Package / Case | 20TSSOP | Package Cooled | TSSOP |
| Material Finish | :- | Package Quantity | TSSOP |
| Size / Dimension | 6.6 x 4.5 x 1.05mm | Number of Positions | 20 |
| Supplier Device Package | 20-TSSOP | ||
Product Info
| Type | Clock Driver | Features | 1to5Differential |
| Configuration | 1 x 2:1 | Number of Circuits | 1 |
Environmental
| Operating Temperature | -40°C ~ 85°C | Usable Temperature Range | -40to+85°C |
Documents & Media
PDF Document
PDF Document
Similar Parts
RE933-04
Roth Elektronik

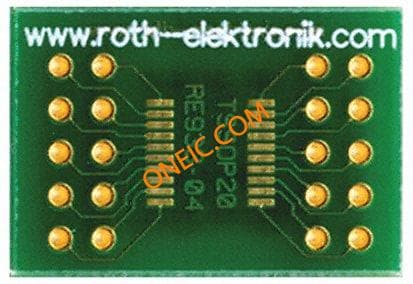

RE933-04, Surface Mount (SMT) Board TSSOP Epoxy Glass Double-Sided 23.5 x 16 x 1.5mm FR4 ADAPTOR, SMD, TSSOP-20, 0.65MM SMDmulti-adaptorTSSOP-20pin,RE933-04 Board: universal; multiadapter; W:16mm; L:23.5mm; TSSOP20 Laboratory card FR4 Epoxide + chem. Ni/Au TSSOP20 Adapter, RE933-04, Roth Elektronik
