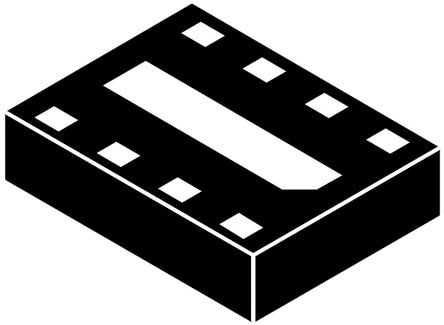

EMI5204MUTAG
| Manufacturer | |
| Description | EMI Filter 800MHz to 3000MHz >20dB Flat Style SMD T/R EMI Filter 4-Channel 800MHz to 3000MHz >20dB Flat Style SMD T/R IC EMI FILTER 4CH ESD 8DFN EMI Network Filter Arrays 4CH RC EMI FILTER ON Semiconductor EMI 滤波器和 ESD 保护器, 8针 UDFN封装 ESD Suppressors / TVS Diodes 4CH RC EMI FILTER |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | EMI Network Filter Arrays | Standard Package | Tape & Reel |
| Factory Pack Quantity | 3000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| ESD Protection | Yes | ||
Electrical
| Frequency | 800 to 3000 MHz | Resistance | 100 Ohms |
| Capacitance | 7 pF | Filter Order | 2nd |
| Current - Test | 1mA | Insertion Loss | 20dB @ 800MHz ~ 5GHz |
| Frequency Range | 800 MHz to 5 GHz | Attenuation - Typ | >20 dB |
| Attenuation Value | 20dB @ 800MHz ~ 5GHz | Number of Channels | 4 |
| Number of Elements | 8 | Voltage - Breakdown | 6V |
| Voltage - Off State | 5V | Current Rating (Max) | 0.1µA |
| Resistor Matching Ratio | 100 | Center / Cutoff Frequency | 250MHz (Cutoff) |
| Resistance - Channel (Ohms) | 100 | Frequency - Cutoff or Center | 250 MHz |
Mechanical
| Depth | 1.35 | Width | 1.35 mm |
| Height | 0.022" (0.55mm) | Length | 1.7mm |
| Packaging | Tape and Reel | Termination | Flat Style |
| Mounting Type | Surface Mount | Number of Pins | 8 |
| Package / Case | 8-UFDFN Exposed Pad | Length - Overall | 1.7 |
| Package Quantity | UDFN | Size / Dimension | 0.067" L x 0.053" W (1.70mm x 1.35mm) |
| Termination Style | SMD/SMT | ||
Product Info
| Type | 4 Channel EMI Filter and ESD Protection | Series | EMI520xMU |
| Values | R = 100 Ohms, C = 7pF | Function | Y |
| Diode Type | 复杂阵列 | Technology | RC (Pi) |
| Applications | Data Lines for Mobile Devices | Circuit Type | RC (Pi) Filter |
| Manufacturer | ON Semiconductor | RF Family/Standard | EMI5204MU |
Environmental
| Operating Temperature | -40 °C | ||
