2SK3557-7-TB-E
| Manufacturer | |
| Description | Trans JFET N-CH 15V 50mA 3-Pin CP T/R Trans JFET N-CH 15V 50mA Si 3-Pin CP T/R MOSFET N-CH 15V 50MA 3CP MOSFET LOW-FREQUENCY AMPLIFIER JFET, RF, N CH, 200MW, SOT-23-3 ON Semiconductor N通道 JFET 晶体管 15 V, Idss: 16 → 32mA, 3针 CP封装 JFET LOW-FREQUENCY AMPLIFIER |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 869-1106-1 | Standard Package | Tape & Reel |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85412900 |
Electrical
| Noise | :1dB | Frequency | 1kHz |
| Vgs (Max) | -15 V | Noise Figure | 1dB |
| Voltage - Test | 5V | Voltage Rating | 15V |
| Transistor Type | N-Channel JFET | Current - Output | 1mA |
| Voltage - Breakdown | 15 V | Current Rating (Max) | 50mA |
| Power Dissipation (Max) | :200mW | Drain to Source Voltage (Vdss) | :15V |
| Current - Peak Pulse (10/1000us) | 50 mA | Current - Continuous Drain (Id) @ 25degC | :50mA |
Mechanical

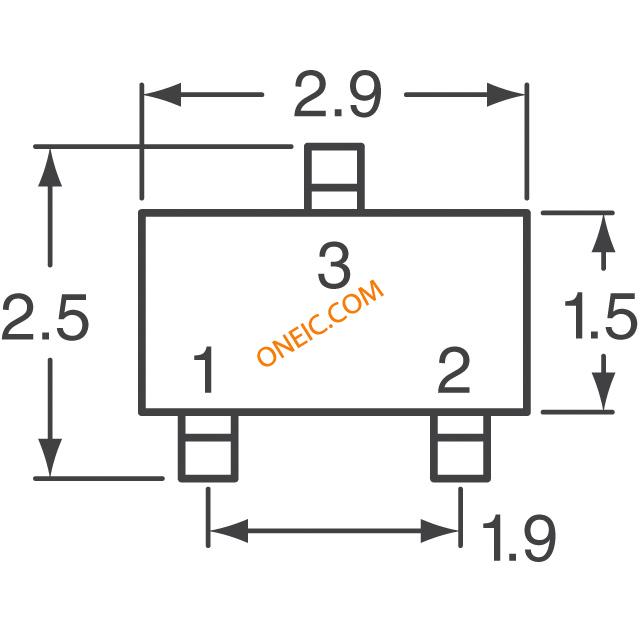

| Width | 1.5 | Weight | 0.000005 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Number of Pins | :3 |
| Package / Case | 3CP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 2.9 | Package Quantity | CP |
| Number of Positions | 3 | Shell Size - Insert | 1.1 |
| Supplier Device Package | 3-CP | ||
Product Info
| Channel Type | N | Configuration | Single |
| RF Family/Standard | :SOT-23 | Printed Circuit Board | 3 |
Environmental
| Operating Temperature | -55 to 150 °C | ||
