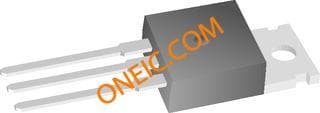

2N6348AG

Manufacturer	onsemi
Description	Thyristor TRIAC 600V 100A 3-Pin(3+Tab) TO-220AB Box TRIAC 600V 12A TO220AB Triacs Triacs TRIAC, 600V, 12A, TO-220AB THYT022012A600VTRIACLEADFREE ON Semiconductor 三端双向可控硅开关元件, 12A额定, 600V峰值, 125mA 3V触发, 3针 TO-220AB封装
Category	Discrete Semiconductor ComponentsThyristorsStandard Thyristors

对参数有疑问？问 AI 助手

Business

Product Category	Triacs	Standard Package	Boxed, Bulk
Factory Pack Quantity	500	Standard Package Name	TO-220

RoHS	Lead free / RoHS Compliant	EU RoHS	Compliant
Tariff No	85411000	Rad Hardened	No

Current - Surge	100 A	Current - Output	0.01
Voltage - Supply	10 V	Voltage - On State	1.75 V
Current - Breakover	100 A	Voltage - Off State	600 V
Vce(on) (Max) @ Vge, Ic	1.75@17A V	Current - Hold (Ih) (Max)	40 mA
Current - Off State (Max)	0.01 mA	Gate Charge (Qg) (Max) @ Vgs	2.5 V
Voltage - Peak Reverse (Max)	600 V	Current - Peak Pulse (8/20us)	100 A
Voltage - On State (Vtm) (Max)	1.75@17A V	Current - Leakage (IS(off)) (Max)	10 uA
Voltage - Forward (Vf) (Max) @ If	600	Voltage - Protection Rating (VPR)	600 V
Current - Gate Trigger (Igt) (Max)	75 mA	Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Current - On State (It (RMS)) (Max)	100 A	Current - Non Rep. Surge 50, 60Hz (Itsm)	:100A
Voltage - Output Difference (Typ) @ Distance	:600V
