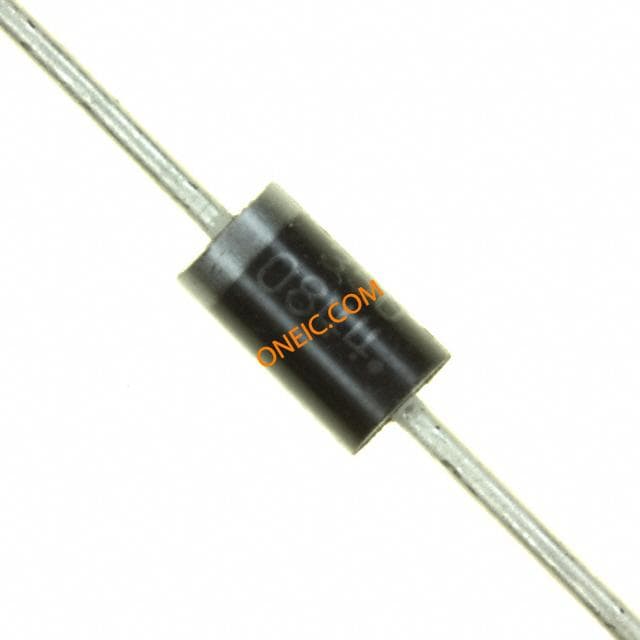

1N5402G
| Manufacturer | |
| Description | Diode Switching 200V 3A 2-Pin Case 267-05 Box DIODE GEN PURP 200V 3A DO201AD Diode 200V 3A Standard Recovery DO201AD Rectifiers 200V 3A Standard STANDARD DIODE, 3A, 200V, AXIAL RECAXIAL3A200VSTD ON Semiconductor 二极管, 3A 200V, 2针 DO-201AD封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Standard Recovery Rectifiers | Other Names | 1N5402GOS |
| Product Category | Rectifiers | Standard Package | Boxed |
| Factory Pack Quantity | 500 | Standard Package Name | DO-201 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85411000 | Rad Hardened | No |
Electrical
| Speed | Standard Recovery >500ns, > 200mA (Io) | Current - Test | 10 uA |
| Rectifier Type | Switching Diode | Current - Surge | :200A |
| Current - Output | 50μA | Voltage - Supply | 1 V |
| Diode Configuration | :Single | LED Forward Voltage | 1 |
| Frequency - Switching | Standard | Voltage - Input (Min) | 1V @ 3A |
| Current - Peak Pulse (8/20us) | 200 A | Voltage - DC Reverse (Vr) (Max) | 200V |
| Current - Average Rectified (Io) | 3 A | Current - Peak Pulse (10/1000us) | 3A |
| Voltage - Reverse Standoff (Typ) | 200 V | Current - LED Trigger (Ift) (Max) | :3A |
| Voltage - Gate Trigger (Vgt) (Max) | 200 V | Current - Continuous Drain (Id) @ 25degC | 3 A |
Mechanical
| Weight | 0.00113 | Packaging | Box |
| Lead Style | Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Package / Case | 2Case 267-05 |
| Package Cooled | Case 267-05 | Material Finish | :- |
| Package Quantity | Case 267-05 | Primary Material | Rectifier |
| Number of Positions | 2 | Supplier Device Package | DO-201AD |
Product Info
| Type | Switching Diode | DELETED | Compliant |
| Diode Type | Standard | Configuration | Single |
Environmental
| Thermal Resistance | 53°C/W Ja | Operating Temperature | -65 to 150 °C |
| Operating Temperature - Junction | -65°C ~ 150°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
1N5402
ON Semiconductor
Rectifiers 200V 3A Standard Diode Switching 200V 3A 2-Pin Case 267-05 Box DIODE GEN PURP 200V 3A DO201AD
Details

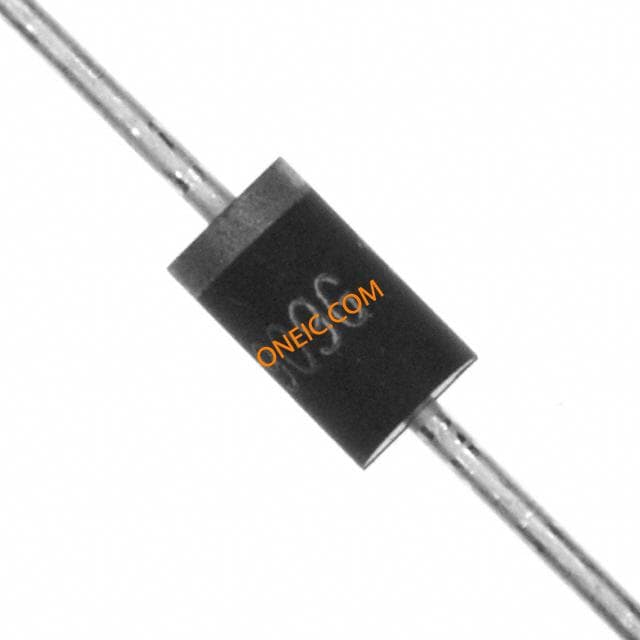

1N5402-E3/54
