MKS3PI-5 DC24
| Manufacturer | |
| Description | General Purpose Relays Basic 3PDT 24 VDC Std w/Lock Button Electromechanical Relay 3PDT 10A 24VDC 430Ohm Plug-In RELAY GEN PURPOSE 3PDT 10A 24V 11 pin 3PDT relay,10A 24Vdc coil POWER RELAY, 3PDT, 24VDC, 10A, PLUG IN 欧姆龙(OMRON) 功率继电器 Industrial relay 24 VDC 430 Ohm 1400 mW, MKS3PI-5 DC24, Omron Electronic Components Omron 3 刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 10 A, 24V dc |
| Category |
Business
| Part # Aliases | 1691489 | Product Category | General Purpose Relays |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85364190 | ||
Electrical
| Coil Type | Non Latching | Coil Power | 1.4 W |
| Power - Max | 150 (NC) W, 300 (NO) W | Range deg/s | :OMRON - MK-S Series |
| Coil Current | 55.8 mA | Release Time | 20ms |
| Power - Rated | 300W|2.5kVA(NO)/150W|1.25kVA(NC) | Visible Output | No |
| Voltage Rating | 250 | Coil Resistance | 430 Ohms |
| Pushing (MHz/V) | Yes | Current - Output | :10A |
| Voltage - Supply | 24 VDC | Switching Voltage | 250 VAC, 250 VDC |
| Vgs(th) (Max) @ Id | 3.6 VDC | Voltage - Clamping | 19.2VDC |
| Current - Switching | 10 A | Diode Configuration | No |
| Current Rating (Max) | 10 | Power - Output Surge | 1.25 (NC) kVA, 2.5 (NO) kVA |
| Contact Voltage (Max) | :250V | Voltage - Input (Min) | 3.6VDC |
| Voltage - Switching DC | 250V dc | Power - Average Forward | 1.4 W |
| Vce(on) (Max) @ Vge, Ic | 19.2 VDC | Contact Rating (Current) | 10 A |
| Voltage - Supply, Digital | :30V | ||
Mechanical
| Seal | Unsealed | Depth | 34.5mm |
| Width | 34.5 mm | Height | 52.5 mm |
| Length | 34.5 mm | Weight | 0 |
| Packaging | Bulk | Contact Form | 3 Form C (3PDT-BM) |
| Mounting Type | Plug-In | Terminal Type | Plug-in |
| Mounting Style | Plug In | Package Cooled | Dust Cover |
| Contact Material | Silver Alloy | Length - Overall | 34.5 |
| Termination Style | 11-Pin Circular Plug | Number of Contacts | 11 |
| Contact Termination | Quick Connect | Contact Layout, Typical | 3PDT |
Product Info
| Type | General Purpose Relay | Series | MK-S |
| Features | Mechanical Indicator, Test Button | Relay Type | Non-Latching |
| Application Specifics | General Purpose | ||
Environmental
| Operate Time | 30ms | Operating Temperature | -40°C ~ 60°C |
Documents & Media
Similar Parts
PLE11-0
Omron Industrial
Relay Sockets & Hardware MK3 SCKT PCB TERM RELAY SOCKET 3PDT PCB MT MK Conn Relay Socket SKT ST SOCKET, PCB, 11 PIN 欧姆龙(OMRON) 微动开关
PL11
Omron Industrial
Relay Sockets & Hardware Relay Socket Panel Mount 3PDT MK Back-Connecting Socket Solder Terminals RELAY SOCKET 3PDT PANEL MT MK SOCKET, CHASSIS, 11 PIN RELAY SOCKET SOCKET;CHASSISMOUNT;MKSERIES SOCKET -MK3P RELAY
PF113A-E
Omron Industrial
Relay Sockets & Hardware 3PDT SOCKET MK Conn Relay Socket SKT 11 POS Solder ST Thru-Hole RELAY SOCKET 3PDT TRACK MT MK Relay Socket For Use With Various Series SOCKET, DIN/SURFACE, 11 PIN, RELAY ACCESSORY,RELAY;SOCKET;3;SURFACE/RAIL;MK3POLE;-10TODEGC 欧姆龙(OMRON) 共用插座 SOCKET -MK3P RELAY Relay socket, PF113A-E, Omron Electronic Components 继电器插座, 适用于各种系列
PF113A-D
Omron Automation and Safety

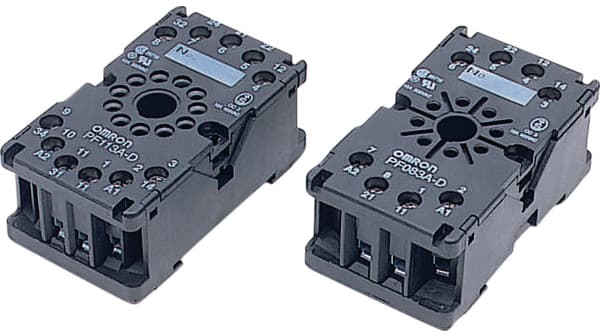

SOCKET RELAY 11PIN 10A Relay Sockets & Hardware MKS3P Socket Relay socket, PF113A-D, Omron Electronic Components 继电器插座, 适用于MKS 系列
