MKS2PIN AC24
| Manufacturer | |
| Description | General Purpose Relays 24V AC DPDT W/ TEST BUTTON AND LED Electromechanical Relay DPDT 10A 24VAC 48.4Ohm Plug-In RELAY GEN PURPOSE DPDT 10A 24V 8 pin DPDT relay w/ LED,10A 24Vac coil 欧姆龙(OMRON) 功率继电器 Omron 双刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 10 A, 24V ac |
| Category |
Business
| Other Names | MKS2PINAC24 | Part # Aliases | 1706826 |
| Product Category | General Purpose Relays | Standard Package | 1 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Coil Type | Non Latching | Coil Power | 2.3 VA |
| Power - Max | 150 (NC) W, 300 (NO) W | Coil Current | 96.3 mA |
| Release Time | 20ms | Power - Rated | 300W|2.5kVA(NO)/150W|1.25kVA(NC) |
| Visible Output | Yes | Voltage Rating | 250 |
| Coil Resistance | 48.4 Ohms | Pushing (MHz/V) | Yes |
| Voltage - Supply | 24 VAC | Switching Voltage | 250 VAC, 250 VDC |
| Power - Peak Pulse | 2.5 kVA | Vgs(th) (Max) @ Id | 7.2 VAC |
| Voltage - Clamping | 19.2VAC | Current - Switching | 10 A |
| Current Rating - DC | 300 W | Diode Configuration | No |
| Current Rating (Max) | 10 A | Power - Output Surge | 1.25 (NC) kVA, 2.5 (NO) kVA |
| Voltage - Input (Min) | 7.2VAC | Voltage - Switching AC | 250V 交流 |
| Voltage - Switching DC | 250V dc | Power - Average Forward | 2.3 VA to 2.7 VA |
| Vce(on) (Max) @ Vge, Ic | 19.2 VAC | Contact Rating (Current) | 10 A |
| Current - Peak Pulse (8/20us) | 10 A | ||
Mechanical
| Seal | Unsealed | Depth | 34.5mm |
| Width | 34.5 mm | Height | 52.5 mm |
| Length | 34.5 mm | Packaging | Bulk |
| Contact Form | DPDT | Mounting Type | Plug-In |
| Terminal Type | Plug-in | Mounting Style | Plug In |
| Package Cooled | Dust Cover | Contact Material | Silver Alloy |
| Length - Overall | 34.5 | Size / Dimension | 34.5 x 34.5 x 53.3mm |
| Termination Style | 8-Pin Circular Plug | Number of Contacts | 8 |
| Contact Termination | Quick Connect | Contact Layout, Typical | DPDT |
Product Info
| Type | General Purpose Relay | Series | MK-S |
| Features | LED Indicator, Mechanical Indicator, Test Button | Function | Y |
| Relay Type | Non-Latching | Application | 通用 |
| Application Specifics | General Purpose | ||
Environmental
| Operate Time | 20ms | Operating Temperature | -25°C ~ 60°C |
| Maximum Temperature Limit | +60°C | ||
Documents & Media
Similar Parts

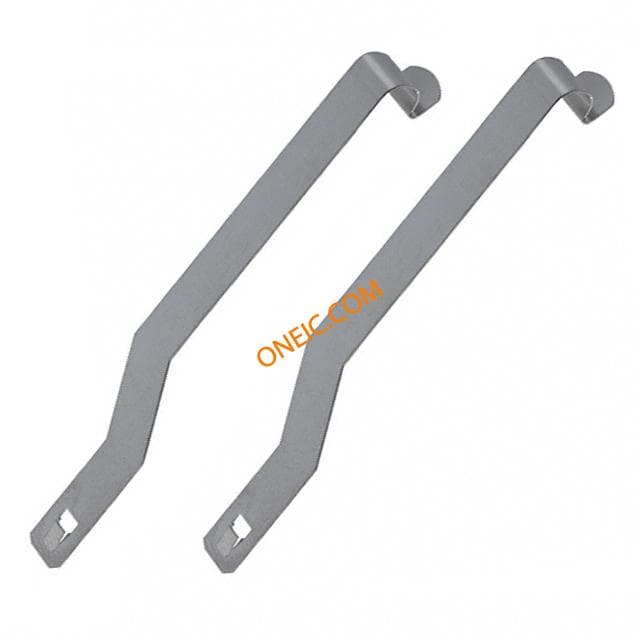

PFC-A1
