点击放大查看
H3YN-21-AC100-120
| Manufacturer | |
| Description | Timers 0.1S-10 HRS SOLID ST Electromechanical Relay DPDT 5A 100V to 120VAC Plug-In RELAY TIMER ANALOG DPDT 100-120V Time Delay Relay Omron H3YN-21 AC100-120, 0.1 min to 10 h Socket DPDT 250V ac Relay;SSR;Timing;Multi-Function;DPDT;Cur-Rtg5A;Ctrl-V100-120AC;Vol-Rtg250AC 欧姆龙(OMRON) 时间继电器 Omron 多功能 计时继电器, 0.1 min → 10 h, 2触点, DPDT, 100 → 120 V 交流 H3YN 系列 |
| Category |
Business
| Product | Analog Timer | Product Category | Timers |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Standards | UL,CSA | ||
Electrical
| Circuit | DPDT (2 Form C) | Delay Time | 0.1 Min ~ 10 Hrs |
| Timer Type | Multi-Function | Output Type | Mechanical Relay |
| Range deg/s | 0.1 s to 10 hr | Voltage - Max | 250 V ac |
| Operating Mode | Flicker OFF Start, Flicker ON Start, Interval, ON Delay | Visible Output | No |
| Voltage Rating | 250VAC | Pushing (MHz/V) | No |
| Delay Time - OFF | 小时，分钟 | Voltage - Supply | 100 V to 120 V |
| Power Supply Type | External | Voltage - Clamping | 85VAC to 102VAC |
| Diode Configuration | Yes | Current Rating (Max) | 5 A |
| Voltage - Input (Min) | 10VAC to 12VAC | Switch Function/Rating | DPDT |
| Timing Initiate Method | Input Voltage | Contact Rating @ Voltage | 5A @ 250VAC |
| Drive Voltage (Max Rds On, Min Rds On) | 120VAC | ||
Mechanical
| Seal | Unsealed | Depth | 63mm |
| Width | 21.5mm | Height | 56.6 |
| Length | 28mm | Termination | Plug-In |
| Contact Form | 2 Form C | Mounting Type | Plug-In |
| Terminal Type | Socket | Connector Type | 插座 |
| Mounting Style | Panel | Length - Overall | 28 |
| Termination Style | Solder Lug | Number of Contacts | 8 |
| Contact Layout, Typical | DPDT | ||
Product Info
| Type | Time Delay Relay | Series | H3YN |
| Function | Programmable (Multi-Function) | Relay Type | Time Delay |
| CAD Drawing | 3D CAD 模型 | Switch Type | DPDT |
| Number of Timers | 多功能 | Number of Macrocells | Multi Function |
| Timing Adjustment Method | Hand Dial | ||
Environmental
| Operating Range | 0.1 min → 10 h | Operating Temperature | +50°C |
| Operating Temperature - Junction | 55°C | ||
Documents & Media
Similar Parts
PY08-QN
Omron Industrial
Relay Sockets & Hardware MY2 SOCKET WIRE WRAP TERM. SOCKET BACK-CONNECTING FOR MY Conn Relay Socket SKT 8 POS Wire Wrap ST Panel Mount
Y92F-78
Omron Industrial
Controllers COUNTER PNL ADAPTER ACCY FLUSH MNT ADAPTER H3Y/H3YN H3Y/H3YNFLUSHMOUNTNGADAPTER
PY08-02
Omron Industrial
Relay Sockets & Hardware DPDT PCB SOCKET RELAY SOCKET BACK CONNECTING Relay Socket For Use With Various Series Conn Relay Socket SKT 2 POS Solder ST Thru-Hole SOCKET, PCB, 8 PIN RELAY SOCKET Socket,Relay;BACK-CONNECTING,PCBTERMINAL,2POLE 欧姆龙(OMRON) 共用插座 Socket; PIN:8; 10A; 250VAC; H:12mm; W:22mm; Application: H3YN-2 PCB SOCKET FOR MY2(S) 继电器插座, 适用于各种系列
PYF08A-E
Omron Industrial
Relay Sockets & Hardware Trk Mt Sckt DPDT MY Finger Safe Term Conn Relay Socket SKT 2 POS Screw ST RELAY SOCKET TRACK MNT MY SER Relay Socket For Use With Various Series RELAY SOCKET Socket,Relay;7A;2-POLE;DINRAIL/PANELMNT;SCREWTERM;FORMYRELAY SEE834-1422PYF08A-E 欧姆龙(OMRON) 共用插座 Socket; PIN:8; 10A; 250VAC; H:30mm; W:23mm; Application: H3YN-2 Relay socket 8 pole, PYF08A-E, Omron Electronic Components 继电器插座, 适用于各种系列
PYF08S
Omron Industrial
Relay Sockets & Hardware SCREWLESS SKT 2POLE Conn Relay Socket SKT 2 POS SOCKET SCREWLESS DP FOR MY2 SER Socket; PIN:8; Application: H3YN-2; Mounting: DIN; Series: MY2
PY08
Omron Industrial
Relay Sockets & Hardware DPDT SOLDER SOCKET SOCKT BACK-CONNCTNG FOR MY RELAY Conn Relay Socket SKT 2 POS ST Relay Socket Socket,Relay;SOLDER;2;BACK;MYRELAY;-55TODEGC;GENERALPURPOSE SEE834-1416PY08 MY2 SOCKET/SOLDER TERM. Relays Accessories
PYF08A-N
Omron Industrial
Relay Sockets & Hardware SOCKET RELAY SOCKET TRACK MOUNT Relay Socket For Use With Various Series Conn Relay Socket SKT 2 POS Screw ST RELAY SOCKET SOCKET Socket; PIN:8; Application: H3YN-2; Series: MY2 Relay socket, 8-pin, PYF08A-N, Omron Electronic Components 继电器插座, 适用于各种系列
PY08-Y1
Omron Industrial
Relay Sockets & Hardware Socket SOCKT BACK-CONN W/CLIP FOR MY Conn Relay Socket SKT 8 POS Solder ST Panel Mount SOCKET 欧姆龙(OMRON) 共用插座

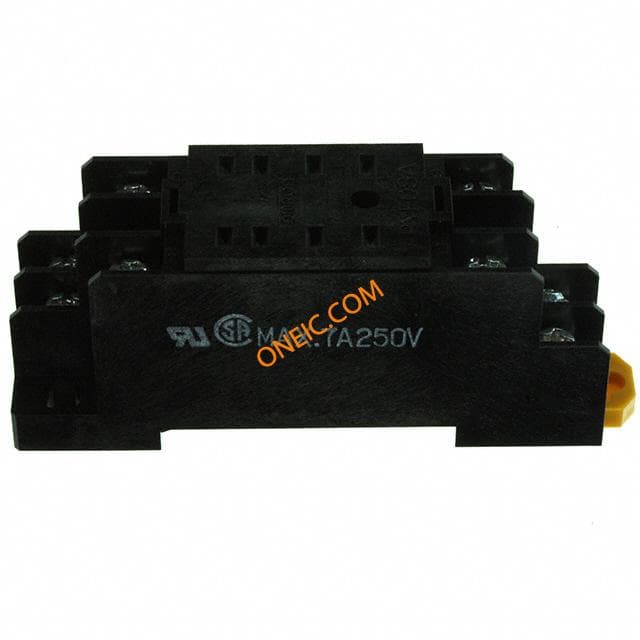

PYF-08A
