G3NE-220T-US-DC12
| Manufacturer | |
| Description | Solid State Relays - Industrial Mount 12VDC/100-240VAC 20A Relay SSR 14.4V DC-IN 20A 264V AC-OUT 4-Pin RELAY SSR 20A@240VAC LOW PROFILE SSR, PCB MOUNT, 264VAC, 14.4VDC, 20A 欧姆龙(OMRON) 固态继电器 Relay Solid-State Phototriac Base: Quick Connect terminal Amperage: 20/5 AMP Coil Voltage: 12 Vdc Configuration: SPST-N.O. Output Voltage: 100-240 Vac |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | DC12 G3NE-220T-US | Product Category | Solid State Relays - Industrial Mount |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85364110 | ||
Electrical
| Output | Triac | Circuit | SPST-NO (1 Form A) |
| Input Type | DC | Output Type | AC |
| Load Current | 20A | Switching Mode | :Zero Crossing |
| Voltage - Load | 75 ~ 264 V | Voltage Rating | 14.4 |
| Current - Output | 20 | Voltage - Supply | 12 VDC |
| Voltage - Isolation | 2000 | Current Rating (Max) | 20 A |
| Voltage - Input (Min) | 9.6 ~ 14.4VDC | Voltage - Output (Max) | 264 |
| Voltage - Supply (Max) | :14.4VDC | Voltage - Supply (Min) | 264 V |
| Current - Input Bias (Max) | 10 mA | Voltage - Rated AC (Phase to Phase) | :264VAC |
Mechanical
| Weight | 0.036 | Packaging | Bulk |
| Contact Form | 1 Form A (SPST-NO) | Mounting Type | Chassis Mount or Panel Mount |
| Package / Case | Hockey Puck | Termination Style | Solder Terminal |
| Number of Positions | 4 | Contact Layout, Typical | :- |
Product Info
| Series | G3NE | Relay Type | Relay |
| Product Type | Industrial Mount | ||
Environmental
| Operating Temperature | 80 | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts

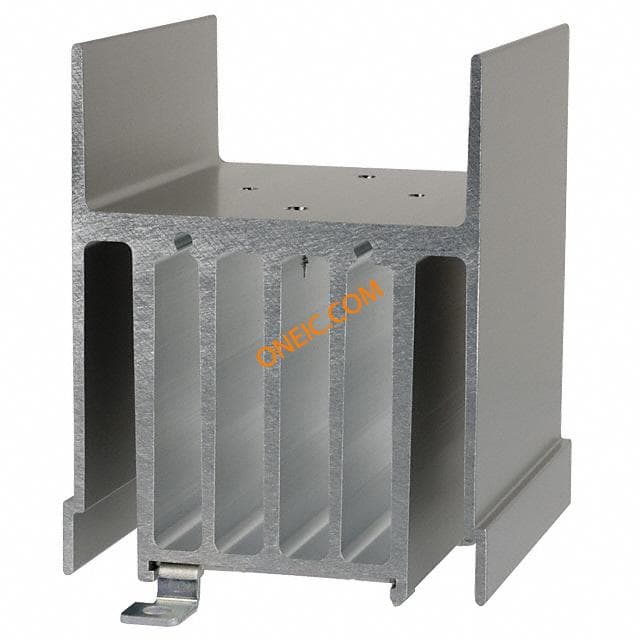

Y92B-N100
Omron Industrial
Heat Sinks TRK MT HEAT SINK G3N Solid State Relay, Heat Sinks HEAT SINK TRACK MNT FOR G3NA SER 欧姆龙(OMRON) 中间继电器
$274.0400
Details
Y92B-N150
Omron Industrial
Heat Sinks TRK MT HEAT SINK G3N Heat Sink Passive Screw 1.38°C/W HEAT SINK TRACK MNT FOR G3NA SER ACCESSORY;HEATSINK;G3NA-240B,G3NA-440B 欧姆龙(OMRON) 中间继电器
$708.7368
Details

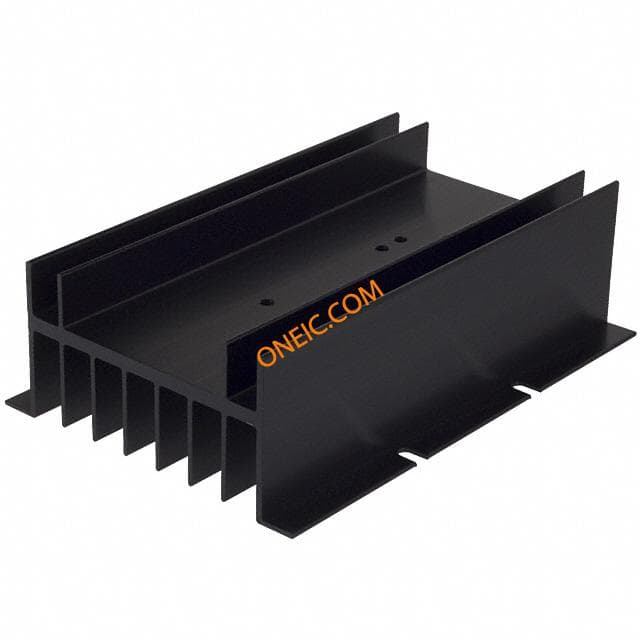

Y92B-A150N
Omron Industrial
Heat Sinks STD MT HEAT SINK G3N Heat Sink Passive 1.37°C/W HEAT SINK FOR 25A G3NA SERIES HEATSINK 欧姆龙(OMRON) 共用插座
$236.0413
Details

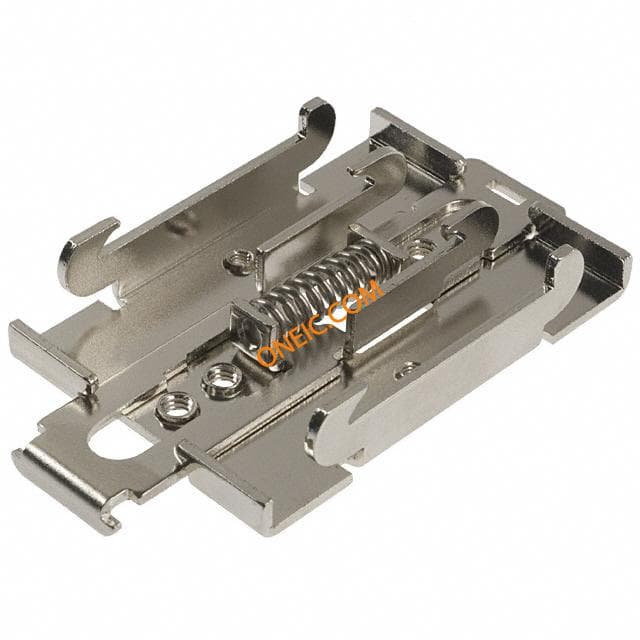

R99-12 FOR G3NA
