XS5C-D423
| Manufacturer | |
| Description | Conn M12 Circular F 4 POS Solder ST Cable Mount 4 Terminal 1 Port CONN RCPT STRAIGHT 4POS W/SKTS Circular Metric Connectors Socket Straight 4Pin Solder, 4mm Dia Cbl WATERPROOF SENSOR CONNECTOR |
| Category |
Business
| Lead Time | 96 Days | Other Names | XS5CD423 |
| Subcategory | Connector Circular | Part # Aliases | 1825518 684374 |
| Product Category | Circular Metric Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
| Tariff No | 85366990 | ||
Electrical
| Voltage Rating | 250VDC | Current Rating (Max) | 4A |
Mechanical
| Weight | 0 | Diameter | 14.9 |
| Packaging | Bulk | Cable Exit | No |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Solder | Contact Type | 4Signal |
| Mounting Type | Cable Mount | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold Over Nickel | Fastening Type | Bayonet Lock |
| Contact Material | Phosphor Bronze | Length - Overall | 31.8 |
| 1st Contact Gender | F | Number of Contacts | 4 |
| Number of Positions | 4 | Shell Size - Insert | M12-4 |
| Shell Material, Finish | Zinc, Nickel Plated | Contact Finish Thickness | 16µin (0.40µm) |
| 1st Connector Mounting Type | :Free Hanging | ||
Product Info
| Type | M12 Circular | Gender | RCP |
| Series | XS5 | Product Type | Connectors |
| Accessory Type | :Straight Sensor Connector | Leaded Process Compatible | :Yes |
| For Use With/Related Products | :Omron Sensors | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -25°C ~ 70°C |
Documents & Media
Similar Parts
XS5G-D423
omron electronics
Conn M12 Circular M 4 POS Solder ST Cable Mount 4 Terminal 1 Port CONN PLUG STRAIGHT 4POS W/PINS Circular Metric Connectors Plug Straight 4pin Solder for 4mmCable WATERPROOF SENSOR CONNECTOR
XS2Z-14
omron electronics
Connector Accessories Dust Cover Rubber Black COVER DUST M12 FOR CONNECTORS Circular Metric Connectors Sensor I/O Connector
XS2Z-22
omron electronics
Connector Accessories Dust Cover Brass Nickel Finish CONN WATERPROOF COVER FOR XS Circular Metric Connectors Accessories for XS Connector 欧姆龙(OMRON) 其它传感器附件
XS5G-D422
omron electronics
Conn M12 Circular M 4 POS Solder RA Cable Mount 4 Terminal 1 Port CONN PLUG RT ANG 4POS W/PINS Circular Metric Connectors Plug Angled 4pin Solder for 6mmCable
XS5G-D4S1
omron electronics
Conn Circular PIN 4 POS Screw ST Cable Mount 4 Terminal 1 Port CONN PLUG STRAIGHT 4POS SEALED Circular Metric Connectors Plug Straight 4pin Screw for 6mmCable 欧姆龙(OMRON) 连接电缆 Circular Connector Connector Type: Plug, Male Pins Number of Positions: 4 Shell Size - Insert: M12-4 Mounting Type: Free Hanging (In-Line) Fastening Type: Bayonet Lock
XS5G-D4S7
omron electronics
Conn M12 Circular M 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CONN PLUG STRAIGHT 4POS SCREW-ON Circular Metric Connectors Plug Straight 4pin Screw for Cable 8mm
XS5G-D4S9
omron electronics
Conn M12 Circular M 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CONN PLUG STRAIGHT 4POS SCREW-ON Circular Metric Connectors Plug Straight 4pin Screw for 7mmCable
XS2Z-15
omron electronics
Connector Accessories Dust Cover Polyvinyl chloride Red COVER DUST M12 FOR CONNECTORS Circular Metric Connectors Sensor I/O Connector
XS5G-D4S2
omron electronics
Conn M12 Circular M 4 POS Crimp RA Cable Mount 4 Terminal 1 Port CONN PLUG RT ANG 4POS SEALED Circular Metric Connectors Plug Angled 4pin Screw for 6mmCable Circular Connector Connector Type: Plug, Male Pins Number of Positions: 4 Shell Size - Insert: M12-4 Mounting Type: Free Hanging (In-Line), Right Angle Fastening Type: Bayonet Lock
XS5G-D421
omron electronics
Conn Circular PIN 4 POS Solder ST Cable Mount 4 Terminal 1 Port Circular Metric Connectors Plug Straight 4pin Solder for 6mmCable CONN PLUG STRAIGHT 4POS W/PINS WATERPROOF SENSOR CONNECTOR

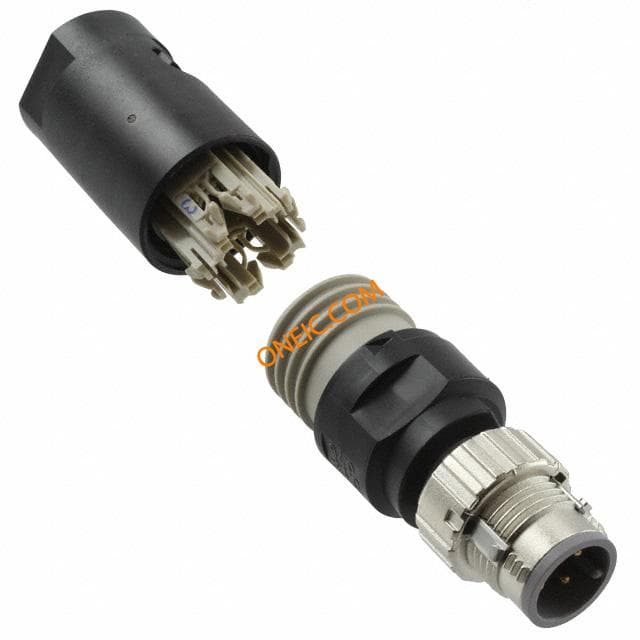

XS5G-D418
