XG4C-5031
| Manufacturer | |
| Description | Headers & Wire Housings MIL BoxType Plug 50P Straight 1Polarize Conn Shrouded Header PL 50 POS 2.54mm Solder ST Thru-Hole CONN PLUG 50POS 3A 300V STRT DIP 欧姆龙(OMRON) 其它传感器附件 |
| Category |
Business
| Lead Time | 95 Days | Subcategory | Connector Headers and PCB Receptacles |
| Part # Aliases | 1751353 385266 | Product Category | Headers & Wire Housings |
| Standard Package | 40 | Factory Pack Quantity | 40 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 300 V | Contact Resistance | 20 |
| Current Rating (Max) | 3 A | Voltage - Input (Min) | 300VAC |
Mechanical
| Color | Black | Depth | 8.5 |
| Pitch | 0.100" (2.54mm) | Height | 9 |
| Packaging | Bulk | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Form | Male Pin |
| Contact Type | Male Pin | Lead Spacing | 0.100" (2.54mm) |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Brass |
| Housing Material | Polybutylene Terephthalate | Length - Overall | 70.8 |
| Termination Style | Through Hole | Number of Contacts | 50 |
| Number of Positions | 50 | Contact Finish Thickness | 5.9µin (0.15µm) |
| Number of Positions/Bay/Row | All | ||
Product Info
| Type | Shrouded Header | Gender | PL |
| Series | XG4 | Product Type | Headers |
| Industry Aliases | XG4C-5031 | Output Configuration | Through Hole |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
XG4M-5030
omron electronics
Conn IDC Connector SKT 50 POS 2.54mm IDT RA Cable Mount CONN SOCKET OPEN END 50 POS WIRE-BOARD CONN, SOCKET, 50POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件
XG5M-5035-N
omron electronics
Conn Housing PL 50 POS 2.54mm Crimp ST CONN IDC SOCKET 50POS AWG28-26 Headers & Wire Housings IDC 2Row Socket 50P Size2 1PolarizeGuide 欧姆龙(OMRON) 其它传感器附件
XG4M-5030-T
omron electronics
Conn IDC Connector SKT 50 POS 2.54mm IDT RA Cable Mount CONN SOCKET 50POS W/ STRAIN RLF Headers & Wire Housings Socket+StrainRelief Set 50Pin 1Polar 欧姆龙(OMRON) 其它传感器附件
XG4M-5031-U
Omron Electronics
ヘッダ & ワイヤハウジング Socket+NoLockStrain ReliefSet 50Pin 2Plr CONN SOCKET 50POS FLAT CABLE IDC Headers & Wire Housings Socket+NoLockStrain ReliefSet 50Pin 2Plr
XG5M-5036-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 50P Size2 2PolarizeGuide CONN IDC SOCKET 50POS AWG28-26
XG4M-5031
Omron Electronics
ヘッダ & ワイヤハウジング OpenCoverSocket 50P NoStrainRelief 2Polr CONN SOCKET 50POS FLAT CABLE IDC 欧姆龙(OMRON) 其它传感器附件
XG5M-5033-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 50P Size1 2PolarizeGuide CONN DBL ROW SOCKETS 50POS AWG24 欧姆龙(OMRON) 其它传感器附件
XG4Z-0002
Omron Electronics
Headers & Wire Housings Top Lock Lever XG4C Plug to XG4-5 Socket LEVER LOCK FOR XG4 PLUG Connector Accessories Lock Lever Polyamide Natural 欧姆龙(OMRON) 其它传感器附件
XG5M-5032-N
omron electronics
Conn Housing PL 50 POS 2.54mm Crimp ST CONN DBL ROW SOCKETS 50POS AWG24 Headers & Wire Housings IDC 2Row Socket 50P Size1 1PolarizeGuide
XG4M-5030-U
omron electronics
Conn IDC Connector SKT 50 POS 2.54mm IDT RA Cable Mount CONN SOCKT 50POS STRN RLF W/LOCK Headers & Wire Housings Socket+NoLockStrain ReliefSet 50Pin 1Plr 欧姆龙(OMRON) 其它传感器附件
XG4H-5071
Omron Electronics
Board to Board & Mezzanine Connectors BtoB Socket 50Pin Straight 2Polarize CONN SOCKET 50POS STRAIGHT PCB
XG4M-5031-T
Omron Electronics
Headers & Wire Housings Socket+StrainRelief Set 50Pin 2Polar CONN SOCKET 50POS FLAT CABLE IDC Conn IDC Connector SKT 50 POS 2.54mm IDT RA Cable Mount
XG4H-5031
omron electronics
Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole CONN SOCKET 50POS STRAIGHT PCB Board to Board & Mezzanine Connectors BtoB Socket 50Pin Straight 1Polarize 欧姆龙(OMRON) 其它传感器附件

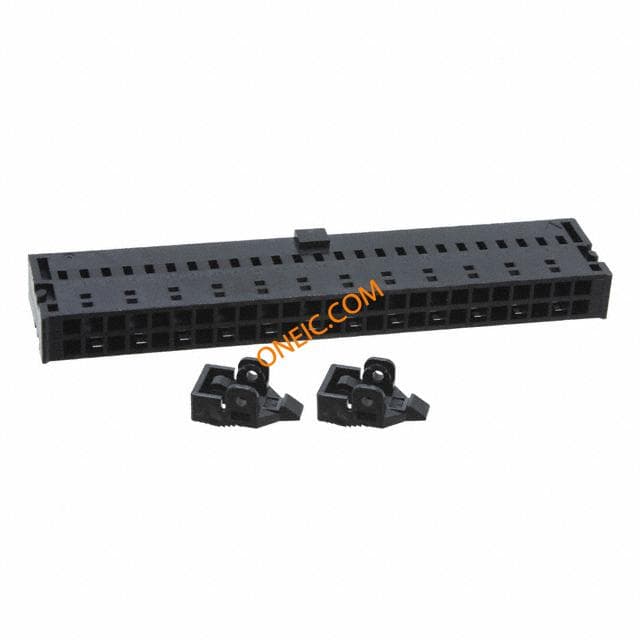

XG5N-501-U
