XG4C-4031
| Manufacturer | |
| Description | Headers & Wire Housings MIL BoxType Plug 40P Straight 1Polarize Conn Shrouded Header PL 40 POS 2.54mm Solder ST Thru-Hole CONN PLUG 40POS 3A 300V STRT DIP 欧姆龙(OMRON) 其它传感器附件 |
| Category |
Business
| Lead Time | 96 Days | Subcategory | Connector Headers and PCB Receptacles |
| Part # Aliases | 1751350 385263 | Product Category | Headers & Wire Housings |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 300 V | Contact Resistance | 20 |
| Current Rating (Max) | 3 A | Voltage - Input (Min) | 300VAC |
Mechanical
| Color | Black | Depth | 8.5 |
| Pitch | 0.100" (2.54mm) | Height | 9 |
| Packaging | Bulk | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Brass |
| Housing Material | Polybutylene Terephthalate | Length - Overall | 58.1 |
| Termination Style | Through Hole | Number of Contacts | 40 |
| Number of Positions | 40 | Contact Finish Thickness | 5.9µin (0.15µm) |
Product Info
| Type | Shrouded Header | Gender | PL |
| Series | XG4 | Product Type | Headers |
| Industry Aliases | XG4C-4031 | Number of Positions Loaded | All |
Documents & Media
Similar Parts
XG4H-4031-1
omron electronics
Conn Socket Strip SKT 40 POS 2.54mm Solder ST Thru-Hole CONN SOCKET 40POS PRESS FIT PCB Board to Board & Mezzanine Connectors BtoB Socket 40Pin Straight 1Polarize 欧姆龙(OMRON) 其它传感器附件
XG4M-4030-T
omron electronics
Conn IDC Connector SKT 40 POS 2.54mm IDT RA Cable Mount CONN SOCKET 40POS W/ STRAIN RLF Headers & Wire Housings Socket+StrainRelief Set 40Pin 1Polar WIRE-BOARD CONN, SOCKET, 40POS, 2.54MM 欧姆龙(OMRON) 接近开关
XG4M-4030
Omron Electronics
ヘッダ & ワイヤハウジング OpenCoverSocket 40P NoStrainRelief 1Polr Conn IDC Connector SKT 40 POS 2.54mm IDT RA Cable Mount CONN SOCKET 40POS FLAT CABLE IDC Headers & Wire Housings OpenCoverSocket 40P NoStrainRelief 1Polr 欧姆龙(OMRON) 其它传感器附件
XG5M-4032-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 40P Size1 1PolarizeGuide Conn Housing PL 40 POS 2.54mm Crimp ST CONN DBL ROW SOCKETS 40POS AWG24 欧姆龙(OMRON) 接近开关
XG4M-4030-U
Omron Electronics
Headers & Wire Housings Socket+NoLockStrain ReliefSet 40Pin 1Plr CONN SOCKT 40POS STRN RLF W/LOCK Conn IDC Connector SKT 40 POS 2.54mm IDT RA Cable Mount 欧姆龙(OMRON) 其它传感器附件
XG4Z-0002
Omron Electronics
Headers & Wire Housings Top Lock Lever XG4C Plug to XG4-5 Socket LEVER LOCK FOR XG4 PLUG Connector Accessories Lock Lever Polyamide Natural 欧姆龙(OMRON) 其它传感器附件
XG5M-4035-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 40P Size2 1PolarizeGuide CONN IDC SOCKET 40POS AWG28-26 Conn Housing SKT 40 POS 2.54mm Crimp ST 欧姆龙(OMRON) 其它传感器附件

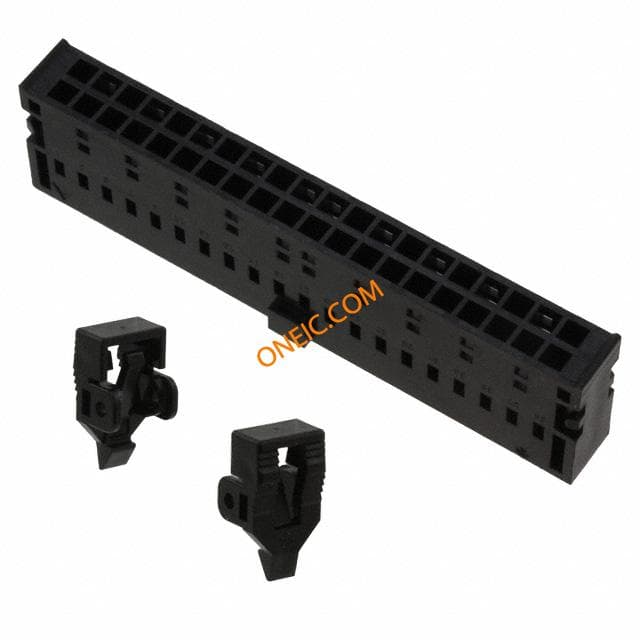

XG5N-401-U
