XG4C-2634
| Manufacturer | |
| Description | Headers & Wire Housings MIL BoxType Plug 26P RightAngle 1Polarize Conn Shrouded Header PL 26 POS 2.54mm Solder RA Thru-Hole CONN PLUG 26POS 3A RT ANGL DIP 欧姆龙(OMRON) 其它传感器附件 |
| Category |
Business
| Lead Time | 96 Days | Subcategory | Connector Headers and PCB Receptacles |
| Part # Aliases | 1751348 385262 XG4C2634NC | Product Category | Headers & Wire Housings |
| Standard Package | 70 | Factory Pack Quantity | 70 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 300 V | Contact Resistance | 20 |
| Current Rating (Max) | 3 A | Insulation Resistance | 1000 MOhms |
| Voltage - Input (Min) | 300VAC | ||
Mechanical
| Color | Black | Depth | 12.2 |
| Pitch | 0.100" (2.54mm) | Height | 8.5 |
| Packaging | Bulk | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Brass |
| Housing Material | Polybutylene Terephthalate | Length - Overall | 40.3 |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 26 | Number of Positions | 26 |
| Contact Finish Thickness | 5.9µin (0.15µm) | ||
Product Info
| Type | Shrouded Header | Gender | PL |
| Series | XG4 | Product Type | Plugs - PCB |
| Industry Aliases | XG4C-2634 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | - 55 C to + 105 C | ||
Documents & Media
Similar Parts
XG5M-2635-N
omron electronics
Conn Housing SKT 26 POS 2.54mm Crimp ST CONN IDC SOCKET 26POS AWG28-26 Headers & Wire Housings IDC 2Row Socket 26P Size2 1PolarizeGuide 欧姆龙(OMRON) 其它传感器附件
XG4M-2630-U
omron electronics
Conn IDC Connector SKT 26 POS 2.54mm IDT RA Cable Mount CONN SOCKT 26POS STRN RLF W/LOCK Headers & Wire Housings Socket+NoLockStrain ReliefSet 26Pin 1Plr 欧姆龙(OMRON) 其它传感器附件
XG4M-2630-T
Omron Electronics
ヘッダ & ワイヤハウジング Socket+StrainRelief Set 26Pin 1Polar Conn IDC Connector SKT 26 POS 2.54mm IDT RA Cable Mount CONN SOCKET 26POS W/ STRAIN RLF Headers & Wire Housings Socket+StrainRelief Set 26Pin 1Polar WIRE-BOARD CONN, SOCKET, 26POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件
XG4Z-0002
Omron Electronics
Headers & Wire Housings Top Lock Lever XG4C Plug to XG4-5 Socket LEVER LOCK FOR XG4 PLUG Connector Accessories Lock Lever Polyamide Natural 欧姆龙(OMRON) 其它传感器附件
XG5M-2632-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 26P Size1 1PolarizeGuide Conn Housing SKT 26 POS 2.54mm Crimp ST CONN IDC SOCKET 26POS AWG24 欧姆龙(OMRON) 连接电缆
XG4H-2631
Omron Electronics
Board to Board & Mezzanine Connectors BtoB Socket 26Pin Straight 1Polarize CONN SOCKET 26POS STRAIGHT PCB 欧姆龙(OMRON) 其它传感器附件
XG4M-2630
Omron Electronics
Headers & Wire Housings OpenCoverSocket 26P NoStrainRelief 1Polr CONN SOCKET 26POS FLAT CABLE IDC Conn IDC Connector SKT 26 POS 2.54mm IDT RA Cable Mount 欧姆龙(OMRON) 其它传感器附件

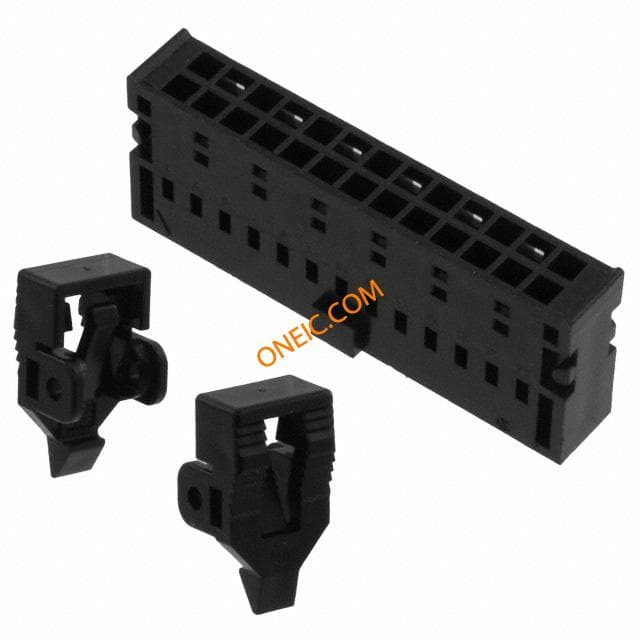

XG5N-261-U
