XG4C-1434
| Manufacturer | |
| Description | Headers & Wire Housings MIL BoxType Plug 14P RightAngle 1Polarize Conn Shrouded Header PL 14 POS 2.54mm Solder RA Thru-Hole CONN PLUG 14POS 3A RT ANGL DIP 欧姆龙(OMRON) 其它传感器附件 |
| Category |
Business
| Lead Time | 96 Days | Subcategory | Connector Headers and PCB Receptacles |
| Part # Aliases | 1756247 427495 | Product Category | Headers & Wire Housings |
| Standard Package | 120 | Factory Pack Quantity | 120 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 300 V | Contact Resistance | 20 |
| Current Rating (Max) | 3 A | Voltage - Input (Min) | 300VAC |
Mechanical
| Color | Black | Depth | 12.2 |
| Pitch | 0.100" (2.54mm) | Height | 8.5 |
| Packaging | Bulk | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Brass |
| Housing Material | Polybutylene Terephthalate | Length - Overall | 25.1 |
| Termination Style | Through Hole | Number of Contacts | 14 |
| Number of Positions | 14 | Contact Finish Thickness | 5.9µin (0.15µm) |
Product Info
| Type | Shrouded Header | Gender | PL |
| Series | XG4 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
XG4H-1431
omron electronics
Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole CONN SOCKET 14POS STRAIGHT PCB Board to Board & Mezzanine Connectors BtoB Socket 14Pin Straight 1Polarize 欧姆龙(OMRON) 其它传感器附件
XG4M-1430
Omron Electronics
ヘッダ & ワイヤハウジング OpenCoverSocket 14P NoStrainRelief 1Polr CONN SOCKET 14POS FLAT CABLE IDC Headers & Wire Housings OpenCoverSocket 14P NoStrainRelief 1Polr Conn IDC Connector SKT 14 POS 2.54mm IDT RA Cable Mount 欧姆龙(OMRON) 其它传感器附件
XG4M-1430-T
Omron Electronics
ヘッダ & ワイヤハウジング Socket+StrainRelief Set 14Pin 1Polar Conn IDC Connector SKT 14 POS 2.54mm IDT RA Cable Mount CONN SOCKET 14POS W/ STRAIN RLF Headers & Wire Housings Socket+StrainRelief Set 14Pin 1Polar 欧姆龙(OMRON) 接近开关
XG5M-1432-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 14P Size1 1PolarizeGuide Conn Housing SKT 14 POS 2.54mm Crimp ST CONN IDC SOCKET 14POS AWG24 欧姆龙(OMRON) 其它传感器附件
XG4Z-0002
Omron Electronics
Headers & Wire Housings Top Lock Lever XG4C Plug to XG4-5 Socket LEVER LOCK FOR XG4 PLUG Connector Accessories Lock Lever Polyamide Natural 欧姆龙(OMRON) 其它传感器附件
XG5M-1435-N
Omron Electronics
ヘッダ & ワイヤハウジング IDC 2Row Socket 14P Size2 1PolarizeGuide CONN IDC SOCKET 14POS AWG28-26 欧姆龙(OMRON) 其它传感器附件
XG4M-1430-U
omron electronics
Conn IDC Connector SKT 14 POS 2.54mm IDT RA Cable Mount CONN SOCKT 14POS STRN RLF W/LOCK Headers & Wire Housings Socket+NoLockStrain ReliefSet 14Pin 1Plr 欧姆龙(OMRON) 其它传感器附件

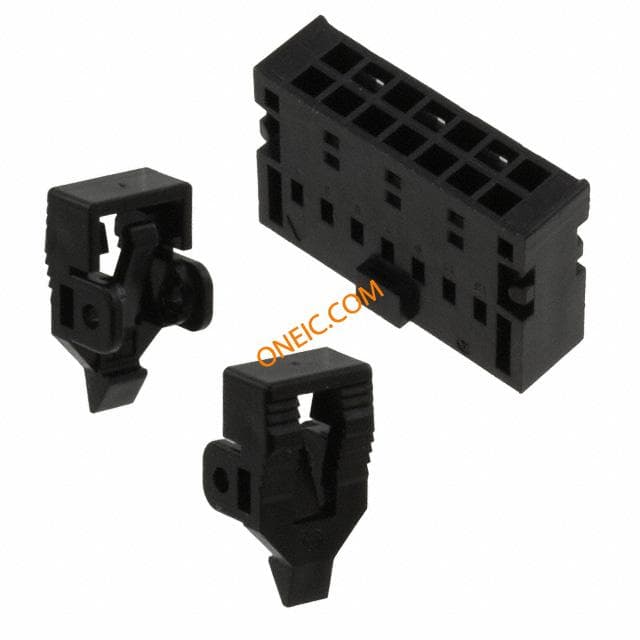

XG5N-141-U
