点击放大查看
XG4A-6431
| Manufacturer | |
| Description | ヘッダ & ワイヤハウジング Plug Long Lock 64P Straight 1Polarize Conn Ejector Header PL 64 POS 2.54mm Solder ST Thru-Hole CONN PLUG 64POS 3A 300V STRT DIP Headers & Wire Housings Plug Long Lock 64P Straight 1Polarize 欧姆龙(OMRON) 其它传感器附件 |
| Category |
Business
| Lead Time | 95 Days | Subcategory | Connector Headers and PCB Receptacles |
| Part # Aliases | 1756245 427481 | Product Category | Headers & Wire Housings |
| Standard Package | 30 | Factory Pack Quantity | 30 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 300 V | Contact Resistance | 20 |
| Current Rating (Max) | 3 A | Voltage - Input (Min) | 300VAC |
Mechanical
| Color | Black | Depth | 8.5 |
| Pitch | 0.100" (2.54mm) | Height | 27 |
| Packaging | Bulk | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Fastening Type | Latch, Long/Eject Hooks | Number of Rows | 2 |
| Contact Material | Brass | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 100.6 | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 64 |
| Number of Positions | 64 | Contact Finish Thickness | 5.9µin (0.15µm) |
Product Info
| Type | Ejector Header | Gender | PL |
| Series | XG4 | Product Type | Plugs - PCB |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
XG4M-6431
Omron Electronics
Headers & Wire Housings Socket with Cover & No Strain Relief 64P CONN SOCKET 64POS FLAT CABLE IDC 欧姆龙(OMRON) 其它传感器附件
XG5M-6436-N
omron electronics
Conn Housing SKT 64 POS 2.54mm Crimp ST CONN IDC SOCKET 64POS AWG28-26 Headers & Wire Housings IDC 2Row Socket 64P Size2 2PolarizeGuide
XG5M-6432-N
omron electronics
Conn Housing SKT 64 POS 2.54mm Crimp ST CONN DBL ROW SOCKETS 64POS AWG24 欧姆龙(OMRON) 其它传感器附件
XG5M-6433-N
omron electronics
Conn Housing SKT 64 POS 2.54mm Crimp ST CONN DBL ROW SOCKETS 64POS AWG24 Headers & Wire Housings IDC 2Row Socket 64P Size1 2PolarizeGuide
XG4M-6431-T
Omron Electronics
ヘッダ & ワイヤハウジング Socket+StrainRelief Set 64Pin 2Polar CONN SOCKET 64POS FLAT CABLE IDC Headers & Wire Housings Socket+StrainRelief Set 64Pin 2Polar
XG5M-6435-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 64P Size2 1PolarizeGuide CONN IDC SOCKET 64POS AWG28-26
XG4M-6430
Omron Electronics
Headers & Wire Housings OpenCoverSocket 64P NoStrainRelief 1Polr CONN SOCKET 64POS FLAT CABLE IDC 欧姆龙(OMRON) 其它传感器附件
XG4M-6430-T
omron electronics
Conn IDC Connector SKT 64 POS 2.54mm IDT RA Cable Mount CONN SOCKET 64POS W/ STRAIN RLF Headers & Wire Housings Socket+StrainRelief Set 64Pin 1Polar WIRE-BOARD CONN, SOCKET, 64POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件
XG5N-641
Omron Electronics Inc-EMC Div
CONN SOCKET 64POS IDC Headers & Wire Housings CrimpSocket Discrete 2Row 64P 1PolarizeGd CONNECTOR, HOUSING, RCPT, 64POS, 2ROW, 2.54MM

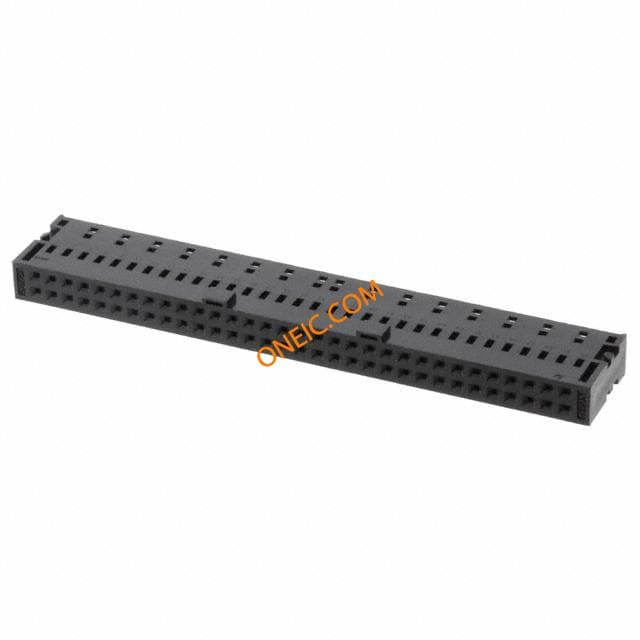

XG5N-642
