XG4A-2031
| Manufacturer | |
| Description | Headers & Wire Housings Plug Long Lock 20P Straight 1Polarize Conn Ejector Header PL 20 POS 2.54mm Solder ST Thru-Hole CONN PLUG 20POS 3A 300V STRT DIP 欧姆龙(OMRON) 其它传感器附件 |
| Category |
Business
| Lead Time | 96 Days | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | 70 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 20 | Current Rating (Max) | 3 |
| Voltage - Input (Min) | 300VAC | ||
Mechanical
| Color | Black | Depth | 8.5 |
| Pitch | 0.100" (2.54mm) | Height | 27 |
| Packaging | Bulk | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Form | Male Pin |
| Contact Type | Male Pin | Lead Spacing | 0.100" (2.54mm) |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Fastening Type | Latch, Long/Eject Hooks | Number of Rows | 2 |
| Contact Material | Brass | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 44.7 | Number of Contacts | 20 |
| Number of Positions | 20 | Contact Finish Thickness | 5.9µin (0.15µm) |
| Number of Positions/Bay/Row | All | ||
Product Info
| Type | Ejector Header | Gender | PL |
| Series | XG4 | Industry Aliases | XG4A-2031 |
| Output Configuration | Through Hole | Number of Positions Loaded | All |
Documents & Media
Similar Parts
XG4M-2030-T
Omron Electronics
ヘッダ & ワイヤハウジング Socket+StrainRelief Set 20Pin 1Polar Conn IDC Connector SKT 20 POS 2.54mm IDT RA Cable Mount CONN SOCKET 20POS W/ STRAIN RLF Headers & Wire Housings Socket+StrainRelief Set 20Pin 1Polar WIRE-BOARD CONN, SOCKET, 20POS, 2.54MM 欧姆龙(OMRON) 接近开关
XG4M-2030
Omron Electronics
Headers & Wire Housings OpenCoverSocket 20P NoStrainRelief 1Polr CONN SOCKET 20POS FLAT CABLE IDC Conn IDC Connector SKT 20 POS 2.54mm IDT RA Cable Mount WIRE-BOARD CONN, SOCKET, 20POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件
XG5M-2035-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 20P Size2 1PolarizeGuide Conn IDC Connector SKT 20 POS 2.54mm IDT ST Cable Mount CONN IDC SOCKET 20POS AWG28-26 欧姆龙(OMRON) 其它传感器附件
XG5M-2032-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 20P Size1 1PolarizeGuide Micro Controller Board CONN IDC SOCKET 20POS AWG24 欧姆龙(OMRON) 其它传感器附件

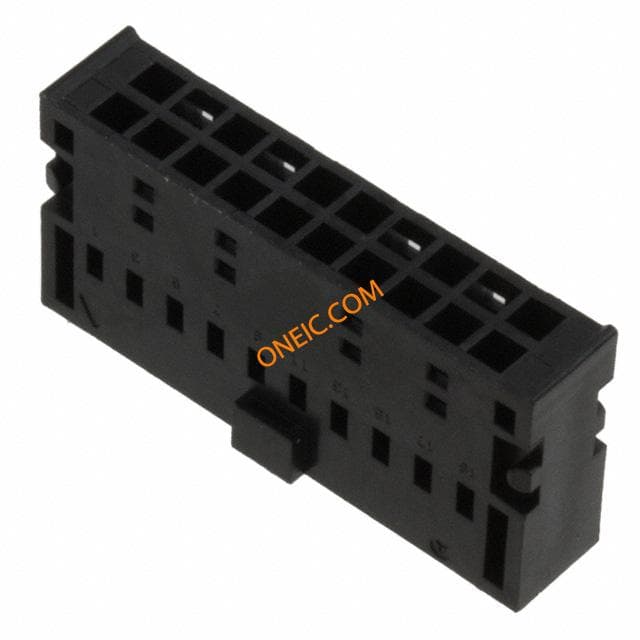

XG5N-201
