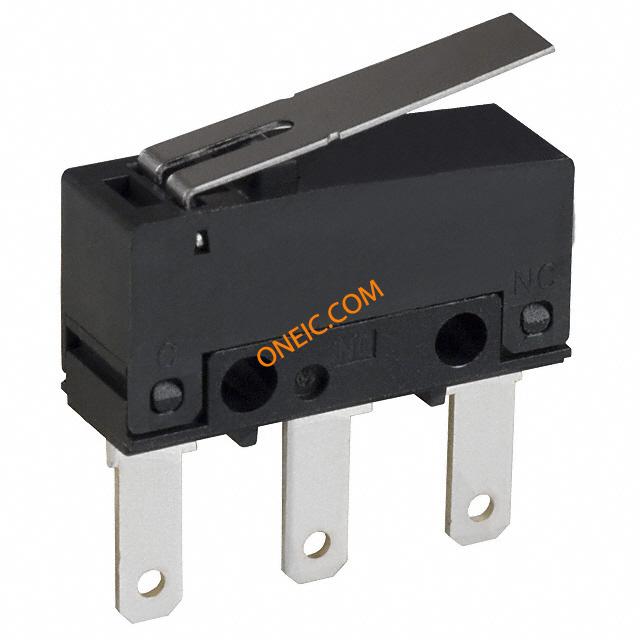

SS-01GLPT
| Manufacturer | |
| Description | Switch Snap Action N.O./N.C. SPDT Hinge Lever Quick Connect 0.1A 125VAC 30VDC 0.5N Screw Mount SW LEVER SPDT .1A .110QC 125V Basic / Snap Action Switches 0.1A Hinge lever #110 Quick connect SWITCH,SUBMINIATURE,SNAPACTION,HINGELEVER,QUICKCONNECTTERMINALS,0.1A Snap Action Switch Actuator Type: Lever (Straight) Mounting Type: Base Mount Switch Function: On-Mom Circuit: 1C SPDT Contact Current: 0.1 Amps |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1387270 646263 | Product Category | Basic / Snap Action Switches |
| Standard Package | Trays | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Circuit | SPDT | Operation | SnapAction |
| Voltage Rating | 30 V | Number of Poles | 1 |
| Switch Function | On-Mom | Dielectric Strength | 1500VAC |
| Differential Travel | 0.030" (0.8mm) | Current Rating (Max) | 0.1@125VAC 30VDC A |
| Voltage - Input (Min) | 125 V | Switch Function/Rating | N.O./N.C. |
Mechanical
| Packaging | Bulk | Overtravel | 0.039" (1.0mm) |
| Body Finish | Subminiature | Termination | QCTabs |
| Contact Form | SPDT | Actuator Type | Lever, Straight |
| Mounting Type | Screw Mount | Release Force | 5gf |
| Terminal Type | Quick Connect | Operating Force | 0.5 N |
| Contact Material | Gold Alloy | Termination Style | Quick Connect - 0.110" (2.8mm) |
| Actuator Style/Size | Hinge Lever | Mounting Hole Diameter | 2.4mm |
| Switch Actuation Level | SPDT | ||
Product Info
| Type | Miniature | Series | SS |
| Card Standard | Snap-Action Switch | Electrical Life | 200,000 Cycles |
| Operating Position | 0.345" (8.8mm) | ||
Environmental
| Seal Rating | IP 67 | Mechanical Life | 1000000 Cycles |
| Ingress Protection | IP40 | Operating Temperature | -25 to 85 °C |
