G6B-4BND-DC24
| Manufacturer | |
| Description | Electromechanical Relay 4PST-NO 5A 24VDC 2.88KOhm DIN Rail General Purpose Relays CompactTerminalRelay 24VDC 4PST Phillips RELAY GEN PURPOSE 4PST 5A 24V POWER RELAY, 4PST-NO, 24VDC, 5A DIN RAIL RELAY;GENPURPOSE,TERMINALBLOCK-STD. General Purpose Relay Coil Voltage: 24 VDC Contact Configuration: 4A 4PST-NO Current : 5 Amps Mounting : DIN Rail Operating Function: Single Side Stable |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 96 Days | Subcategory | Electromechanical Relay |
| Part # Aliases | 658989 G6B4BNDDC24NC | Product Category | General Purpose Relays |
| Standard Package | Rail / Tube | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85364900 | ||
Electrical
| Coil Type | Non Latching | Coil Power | 200 mW |
| Range deg/s | :OMRON - G6B Series | Coil Current | 10.7 mA |
| Release Time | 15ms | Power - Rated | 150W|1.25kVA |
| Visible Output | Yes | Voltage Rating | 125 V |
| Coil Resistance | 2.88 KOhm | Pushing (MHz/V) | No |
| Current - Output | :5A | Voltage - Supply | 24 V |
| Switching Voltage | 380 VAC, 125 VDC | Vgs(th) (Max) @ Id | 2.4 VDC |
| Voltage - Clamping | 19.2VDC | Diode Configuration | Yes |
| Current Rating (Max) | 5 A | Contact Voltage (Max) | :250V |
| Voltage - Input (Min) | 380 V | Power - Average Forward | 200 mW |
| Vce(on) (Max) @ Vge, Ic | 19.2 VDC | Contact Rating (Current) | 10.7 mA |
| Voltage - Supply, Digital | :30V | ||
Mechanical
| Seal | Sealed | Depth | 78 |
| Height | 28 | Weight | 0.077 |
| Packaging | Bulk | Contact Form | 4 Form A (4PST-NO) |
| Mounting Type | DIN Rail | Mounting Style | DIN Rail |
| Contact Material | Silver Alloy | Length - Overall | 43 |
| Termination Style | Screw Terminal | Number of Contacts | 16 |
| Contact Termination | Pin | Contact Layout, Typical | 4PST-NO |
Product Info
| Type | Terminal Relay | Series | G6B |
| Relay Type | Non-Latching | Industry Aliases | G6B-4BND-DC24 |
Environmental
| Operate Time | 10ms | Operating Temperature | -25 to 55 °C |
Documents & Media
PDF Document
PDF Document
PDF Document
Similar Parts

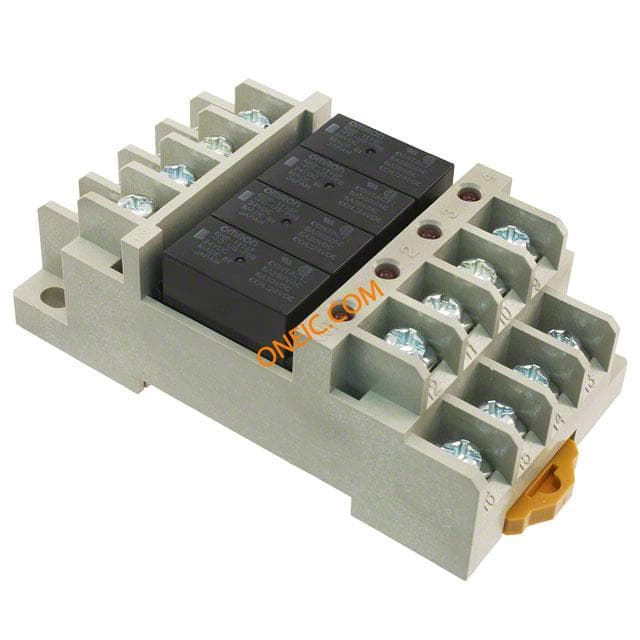

P6BF-4BND DC24
