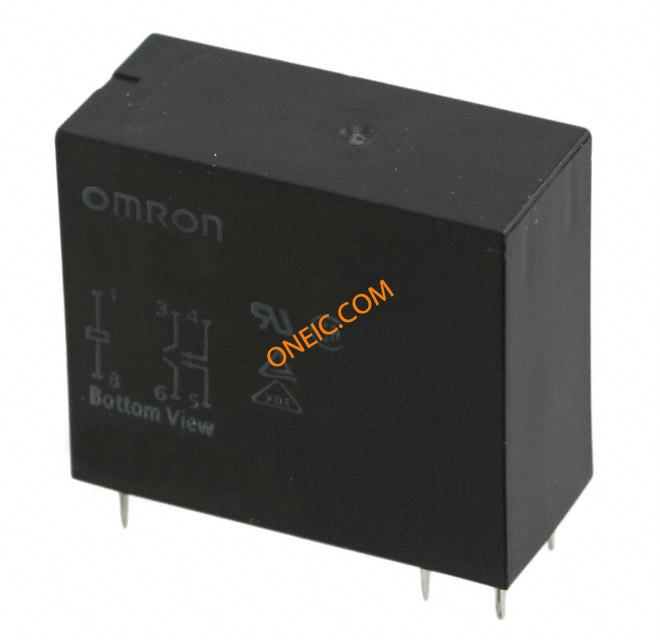

G2R-2A4-T130 DC5
| Manufacturer | |
| Description | General Purpose Relays DPST-NO 5A 5VDC RELAY GENERAL PURPOSE DPST 5A 5V General Purpose Relay Coil Voltage: 5 VDC Contact Configuration: 2A DPST-NO Current : 5 Amps Mounting : PC Board Operating Function: Single Side Stable |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 373437 | Product Category | General Purpose Relays |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current | 5 Amps | Coil Type | Non-Latching |
| Coil Power | 530 mW | Coil Current | 106 mA |
| Release Time | 5ms | Coil Resistance | 47 Ohms |
| Voltage - Supply | 5 VDC | Switching Voltage | 380VAC, 125VDC - Max |
| Vgs(th) (Max) @ Id | 0.75 VDC | Power - Average Forward | 530 mW |
| Vce(on) (Max) @ Vge, Ic | 3.5 VDC | Contact Rating (Current) | 5A |
Mechanical
| Width | 13 mm | Height | 25.5 mm |
| Length | 29 mm | Packaging | Bulk |
| Contact Form | DPDT | Mounting Type | Through Hole |
| Mounting Style | Plug In | Contact Material | Silver Alloy |
| Termination Style | PC Pin | Contact Termination | Quick Connect |
| Contact Layout, Typical | 2A DPST-NO | ||
Product Info
| Type | Relays | Series | G2R |
| Features | Sealed - Fully | Function | Single Side Stable |
| Relay Type | General Purpose | Card Standard | General Purpose Relay |
Environmental
| Operate Time | 15ms | Operating Temperature | -40°C ~ 70°C |
