G2R-1-E-DC24
| Manufacturer | |
| Description | General Purpose Relays High-Capacity 16A SPDT Vented 24VDC Electromechanical Relay SPDT 16A 24VDC 1.1KOhm Through Hole RELAY GEN PURPOSE SPDT 16A 24V POWER RELAY, SPDT, 24VDC, 16A, PC BOARD Relay;GeneralPurpose/IndustrialRelaysHI-CAPSPDTVNTD24V16A Relay High-Capacity Non-Latching Semi-sealed Base: PCB terminal Amperage: 16 AMP Coil Voltage: 24 Vdc Configuration: SPDT PCB power relay 24 VDC 530 mW, G2R-1-E DC24, Omron Electronic Components |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 20 Days | Subcategory | Electromechanical Relay |
| Part # Aliases | (ST) 373162 DC24 G2R-1-E G2R1E24DC G2R1EDC24NC G2RN8103H | Product Category | General Purpose Relays |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85364110 | Rad Hardened | No |
Electrical
| Coil Type | Non Latching | Coil Power | 530 mW |
| Range deg/s | :OMRON - G2R Series | Coil Current | 21.8 mA |
| Coil Voltage | 24V | Release Time | 5ms |
| Power - Rated | 480W|4kVA | Visible Output | No |
| Voltage Rating | 125 | Coil Resistance | 1600 Ohms |
| Pushing (MHz/V) | No | Current - Output | :16A |
| Voltage - Supply | 24 VDC | Switching Voltage | 380VAC, 125VDC - Max |
| Vgs(th) (Max) @ Id | 3.6 VDC | Voltage - Clamping | 16.8VDC |
| Voltage - Rated AC | 380V | Diode Configuration | No |
| Current Rating (Max) | 16 | Contact Voltage (Max) | :250V |
| Voltage - Input (Min) | 3.6VDC | Power - Average Forward | 0.53 W |
| Vce(on) (Max) @ Vge, Ic | 16.8 VDC | Contact Rating (Current) | 10 A |
| Voltage - Supply, Digital | :30V | Voltage - DC Reverse (Vr) (Max) | 125V |
| High Side Voltage - Max (Bootstrap) | 16.8VDC | ||

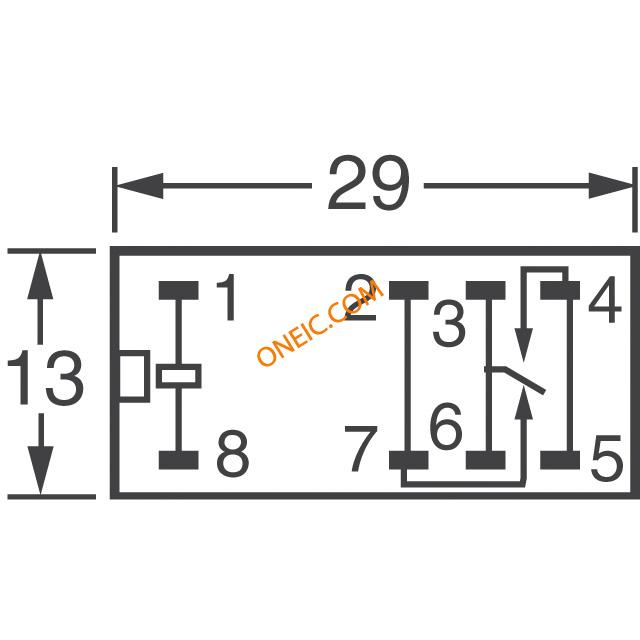

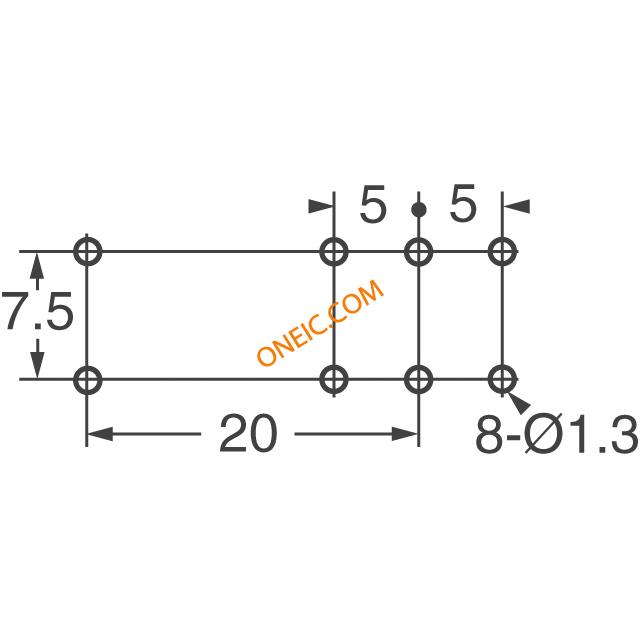

Mechanical
| Seal | Flux Sealed | Depth | 13 mm |
| Width | 13 mm | Height | 25.3 mm |
| Length | 29 mm | Weight | 0.014 |
| Packaging | Bulk | Contact Form | 1 Form C (SPDT-BM) |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Package / Case | Dust Cover | Package Cooled | Dust Cover |
| Contact Material | Silver Cadmium Oxide | Length - Overall | 29 mm |
| Termination Style | PC Pin | Number of Contacts | 8 |
| Number of Positions | 8 | Contact Layout, Typical | SPDT |
Product Info
| Type | Power Relay | Series | G2R |
| DELETED | Compliant | Features | Sealed - Flux Protection |
| Relay Type | Non-Latching | Push-to-Test | No |
| Industry Aliases | G2R-1-E-DC24 | ||
Environmental
| Operate Time | 15ms | Operating Temperature | -40°C ~ 70°C |
