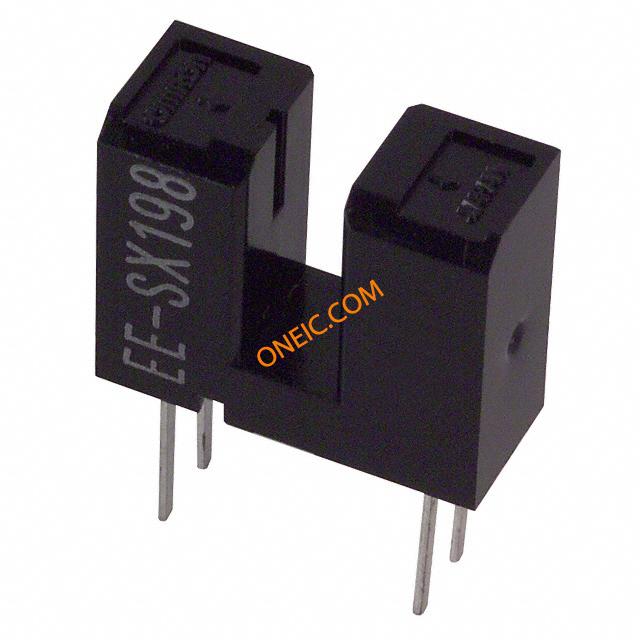

EE-SX198
| Manufacturer | |
| Description | Optical Switches, Transmissive, Phototransistor Output Hi Res .5mm Aper PCB 3mm Wide Slot Photointerrupter Transmissive 3mm Photologic, Open Collector 4-Pin OPTO SENSOR SLOT TYPE 3MM OPTICAL SENSOR TRANSMISSIVE / SLOTTED INTERRUPTER 欧姆龙(OMRON) 光电开关 Sensor Optical - Photointerrupter Output: Transistor Output Sensing Distance: 0.118" (3mm) Sensing Method: Transmissive Output Configuration: Phototransistor Mounting Type: Through Hole |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 96 Days | Subcategory | Photointerrupter |
| Part # Aliases | 367427 9856838 | Product Category | Optical Switches, Transmissive, Phototransistor Output |
| Standard Package | 200 | Factory Pack Quantity | 200 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365005 | ||
Electrical
| Output | Phototransistor | Fall Time | 4 us |
| Wavelength | 940 nm | Power - Rated | 100 mW |
| Response Time | 4µs, 4µs | Voltage Rating | :30V |
| Rise Time (Typ) | 4 us | Output Isolation | :Phototransistor |
| Sensing Distance | 3 mm | Voltage - Supply | 30 V |
| Number of Channels | 1 | Current Rating (Max) | :30mA |
| Voltage - Input (Min) | 30 | Power Dissipation (Max) | 100 |
| Voltage Regulation - Load | 4 | Current - Input Bias (Max) | :30mA |
| Current - Collector (Ic) (Max) | 20 mA | Current - Peak Pulse (10/1000us) | 50 |
| Max Propagation Delay @ V, Max CL | 4000(Typ) | Current - Average Rectified (Io) (per Diode) | 50mA |
Mechanical
| Width | 3 mm | Weight | 0.00045 |
| Packaging | Bulk | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :4 |
| Optic Material | :Through Hole | Package / Case | PCB Mount |
| Number of Positions | 4 | ||
Product Info
| Type | Transmissive | Series | EE-SX198 |
| Sensing Method | Transmissive, Slotted | Industry Aliases | EE-SX198 |
| Output Configuration | Phototransistor | ||
Environmental
| Operating Temperature | + 85 C | ||
